Jack Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
screw
x16
x4
H
G
slide
slide
slide
rail x4
rail x4
rail x4
M
N
handle
Allen key
small bolt
x
4
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
E
bolt
screw
locking
x12
nut x12
x48
J
I
wedge
cam bolt
x8
x8
O
P
long
small locking
screw x8
x20
nutx20

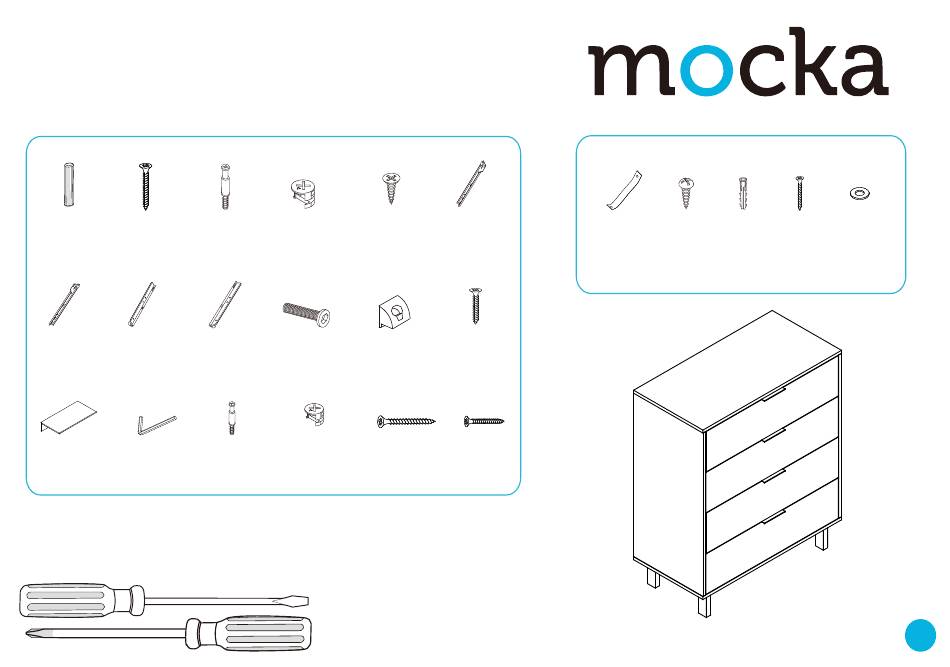

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
slide
rail x4
K
L
screw
x8
Q
R
screw
x24
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
x2
screw
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jack Four
Summary of Contents for Mocka Jack Four
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver. Attach 4x slide rails (G) to panel [4] and secure with 12x screws (E). Insert 8x bolts (C) to the panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [5] and [6] to panels [3] and [4] with 4x dowels (A), Slide panel [7] down along the grooves between the panels [3] and [4]. and secure with 8x locking nuts (D) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panels [7] down along the grooves between the with 4x locking nuts (D). Tighten with a screwdriver. panels [3] and [4] to form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [2] to the rest of the unit using 4x dowels (A) and secure Attach panels [8] to the panels [9] with 8x cam bolts (J) and tighten with 4x screws (B) as shown. Tighten with a screwdriver. with a Allen key (N). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach leg panels to the bottom panel [2] with 8x long screws (Q), Insert 5x small bolt (O) into panel [10]. Tighten with a screwdriver. and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panel [14] along the grooves between the side panels [11] and [12] to secure with 5x small locking nuts (P). Tighten with a screwdriver. form the base of the drawer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach panels [11], [12] and [15] with 6x screws (R).Tighten Attach slide rails (I) and (H) to panels [12] and [11] with 4x small screws (E). with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach handle (M) to panel [10] with 2x screws (E).Tighten with a screwdriver. Insert the completed drawers into the main unit as shown, ensuring they slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 1x washer (Z), 1x wall plug (X) and 1x screw (Y). Ensure unit is and 1x screw (W). Tighten with a screwdriver. balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
