Jack Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
screw
x16
x9
H
G
slide
slide
slide
rail x4
rail x4
rail x4
M
N
handle
Allen key
small bolt
x
4
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
E
bolt
screw
locking
x21
nut x21
x40
J
I
long dowel
cam bolt
x8
O
P
long
small locking
screw x10
x16
nutx16

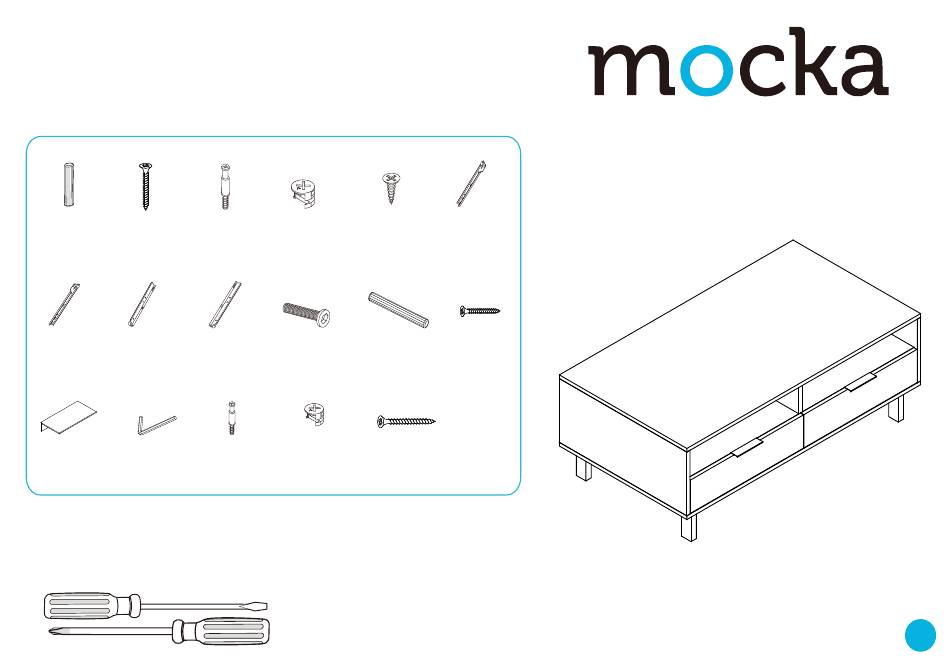

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
slide
rail x4
K
L
screw
x16
x2
Q
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jack Coffee Table and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Jack Coffee Table

  • Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Attach 1x slide rails (F) and 1x slide rails (G) to panel [3] and secure Insert 9x bolts (C) into panel [1]. Tighten with a screwdriver. with 4x screws (E). Insert 3x bolts (C) to the panels [3]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Attach panels [5] to panel [4] with 2x long dowels (K) and secure with 8x screws (E). Insert 6x bolts (C) to the panel [4]. Tighten with with 6x locking nuts (D). Tighten with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach panel [3] to panel [5] with 2x dowels (A) and secure with 3x locking nuts (D). Tighten with a screwdriver. with 3x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Attach panel [2] to panels [3] and [4] using 6x dowels (A) and secure Attach panels [6] to the panels [7] with 8x cam bolts (J) and tighten with 9x screws (B) as shown. Tighten with a screwdriver. with a Allen key (N). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach leg panels to the bottom panel [2] with 10x screws (Q), and tighten Attach panel [1] to panels [3] and [4] with 6x dowels (A) and secure with a screwdriver. with 9x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 Insert 4x small bolt (O) into panel [8] and [9]. Tighten with a screwdriver. Attach panels [10] and [11] to panels [8] and [9] secure with 4x small locking nuts (P). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 Slide panel [12] along the grooves between the side panels [10] and [11] to Attach panels [10], [11] and [13] with 4x screws (L).Tighten form the base of the drawer. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 Attach slide rails (I) and (H) to panels [11] and [10] with 4x small screws (E). Attach handle (M) to panels [8] and [9] with 2x screws (E).Tighten Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 10 Assembly Instructions Insert the completed drawers into the main unit as shown, ensuring they Once assembled lift furniture into place, do not drag. You’re done, enjoy! slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
