thoroughly to ensure correct installation. Please keep this manual at hand for future reference.
ABOUT THIS PRODUCT
・This product is a parts set for installation of folding door system for cabinets.
・The rails can be hidden by the overlay door panels.
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
This symbol denotes prohibited actions.
This symbol denotes what must be done.
Caution
If not followed, injury or damage may result.
Do not disassemble or modify any parts other than those described in this document.
use the product safely.
INSTALLATION DRAWING (EXAMPLE)
54
33.5
43
19
E
1
E
2
F = Gap between door
(5‑
24
Bottom board
28
COMPONENT PARTS
①Sliding guide
②Concealed hinge
FD28-SG
Hinge part
Main body

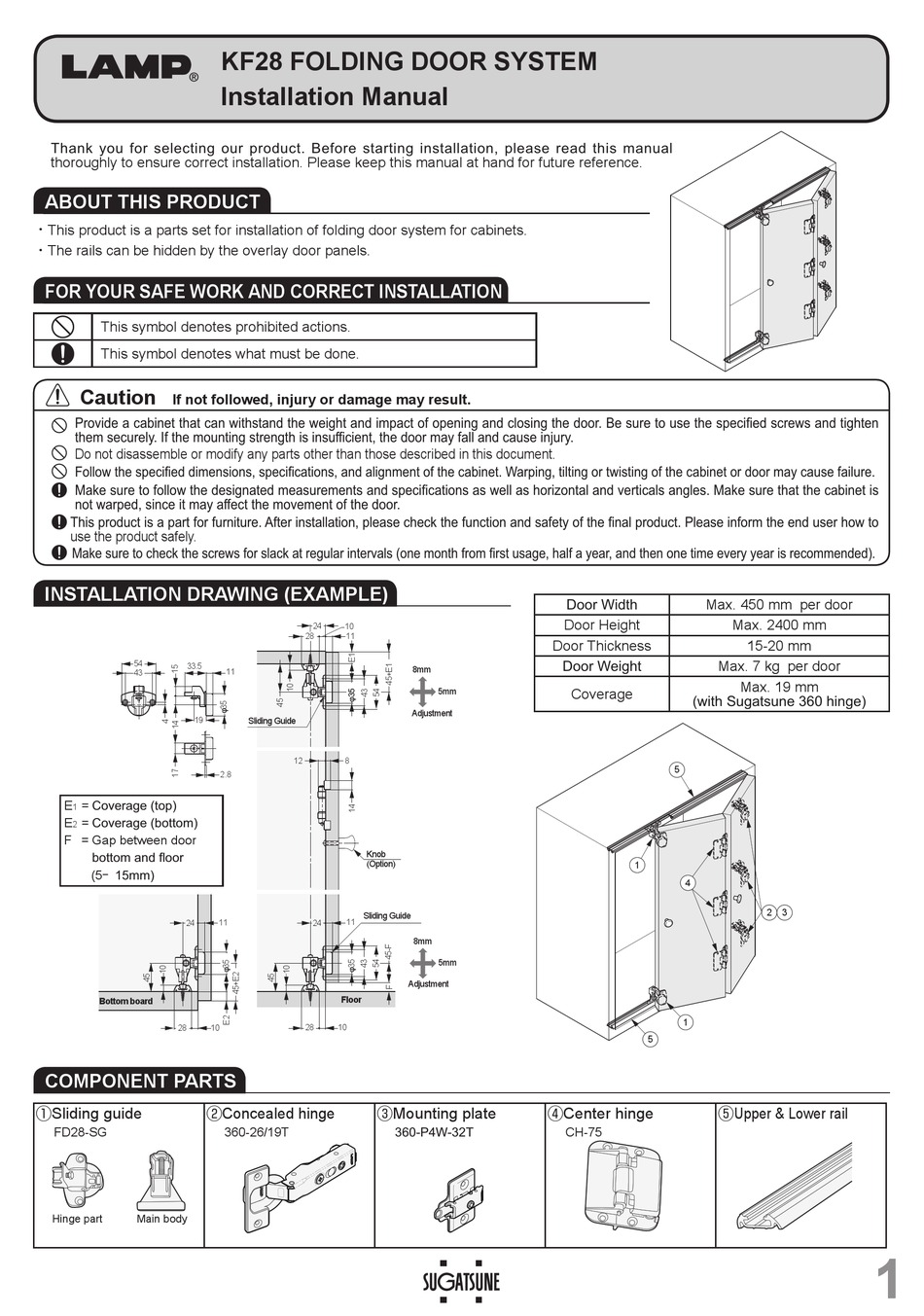

KF28 FOLDING DOOR SYSTEM
Installation Manual
24
10
28
11
11
Sliding Guide
12
8
2.8
Knob
(Option)
Sliding Guide
11
11
24
Floor
10
28
10
③Mounting plate
360-26/19T
Door Height
Door Thickness
8mm
Coverage
5mm
Adjustment
8mm
5mm
Adjustment
④Center hinge
CH-75
Max. 450 mm per door
Max. 2400 mm
15-20 mm
Max. 7 kg per door
Max. 19 mm
5
1
4
2
3
1
5
⑤Upper & Lower rail
1
