Lamp KF111-H Installation Manual

Thank you for selecting our product. Before starting installation, please read this manual
thoroughly to ensure correct installation. Please keep this manual at hand for future reference.

ABOUT THIS PRODUCT

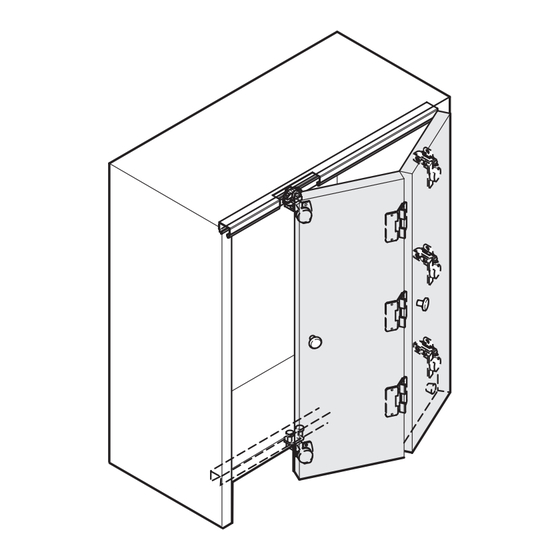

・This product is parts set for installation of folding door system for cabinets.
・The rails can be hidden by the overlay door panels.

FOR YOUR SAFE WORK AND CORRECT INSTALLATION

Meaning of symbols
Warning
Caution
Caution :
If not followed, it may result in injury or damage.
Provide a cabinet that can withstand the weight and impact of opening and closing the door. Be sure to use the specified screws and tighten them securely.
If the mounting strength is insufficient, the door may fall and cause injury.
Do not disassemble or modify any parts other than those described in this document.
Follow the specified dimensions, specifications, and alignment of the cabinet. Warping, tilting or twisting of the cabinet or door may cause failure.
Make sure to follow the designated measurements and specifications as well as horizontal and verticals angles. Make sure that the cabinet is not warped,
since it may affect the movement of the door.
This product is a part for furniture. After installation, please check the function and safety of the final product. Please inform the end user how to use the
product safely.
Make sure to check the screws for slack at regular intervals (one month from first usage, half a year, and then one time every year is recommended).

INSTALLATION DRAWING (EXAMPLE)

59
32.5
15
48
18
3
Upper Roller Hinge
Lower Roller Hinge
24
22 13
Lower roller - L
(Recessed)

COMPONENT PARTS

①Upper roller
FD111-TRH
Hinge part
Main body
⑥Stopper
K-2017
KF111-H FOLDING DOOR SYSTEM
Installation Manual
Prohibited Required
24 8
32 15
12
8
22
13
(7)
38
45
Lower roller - S
(Under mount)
②Lower roller - S
FD111-BRSH
Hinge part Main body
Main body
⑦Center Hinge
CH-75
8mm
5mm
Adjustment
⑥Stopper
Side board Side board
Knob
(Option)
Bottom board
5mm
Adjustment
③Lower roller - L
FD111BRLH
Hinge part
⑧Upper rail
Door Width Max. 450 mm per door
Door Height
Door Thickness
Door Weight
Coverage
(with Sugatsune H360 hinge)
Min 17
6
④Concealed hinge
H360-26-26T
⑨Lower rail
Example of
"Lower - Roller - S"
Max. 2400 mm
18-30 mm
Max. 10 kg per door
Max. 26 mm
8
1
4 5
7
6
or
2 3
9
⑤Mounting plate
360-P4W-32T
