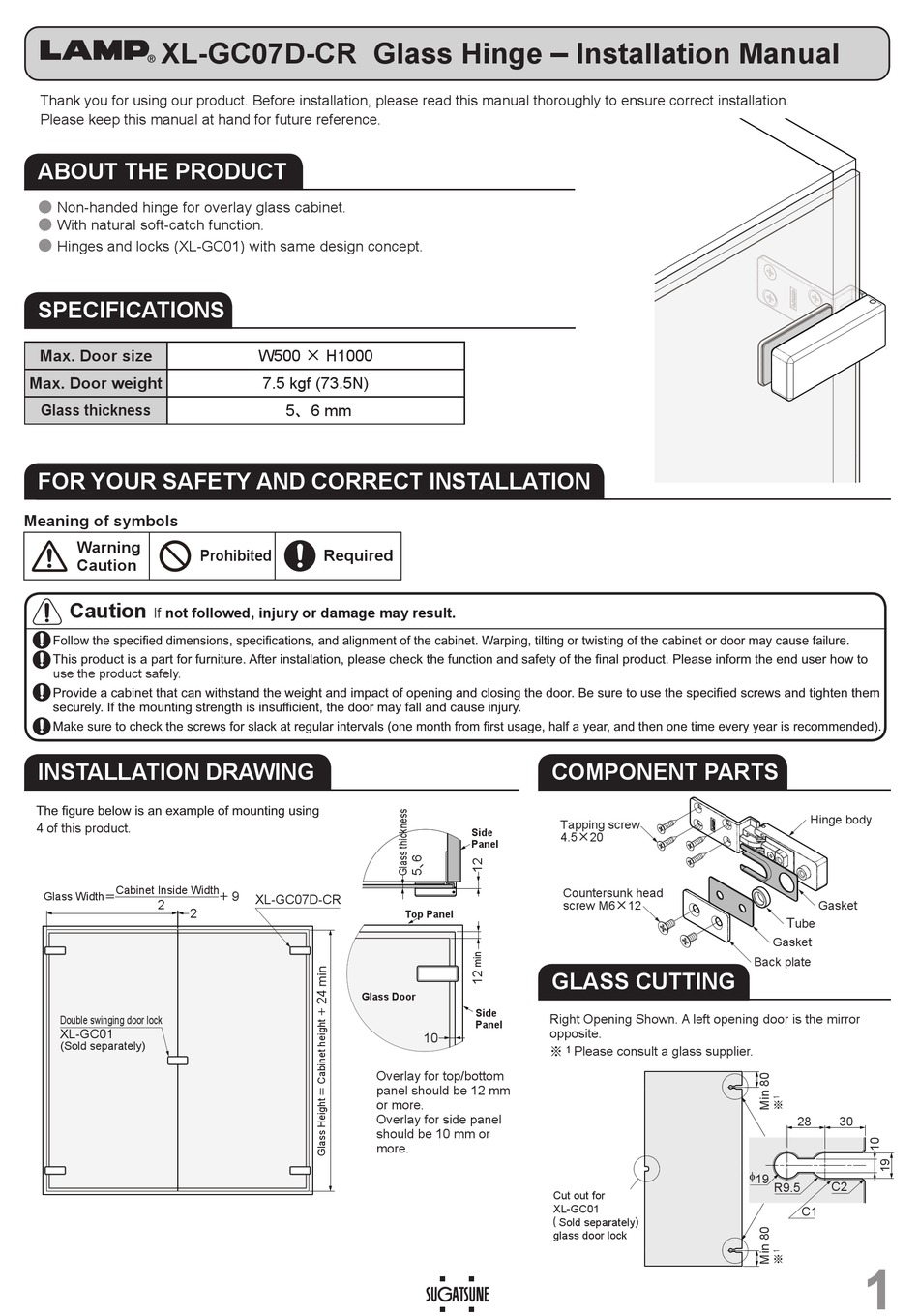

XL-GC07D-CR Glass Hinge — Installation Manual
Thank you for using our product. Before installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.

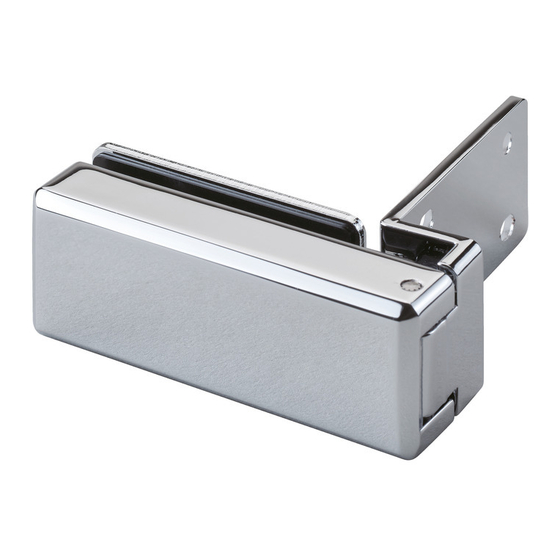

ABOUT THE PRODUCT

N on-handed hinge for overlay glass cabinet.
●
W ith natural soft-catch function.
●
H inges and locks (XL-GC01) with same design concept.
●

SPECIFICATIONS

Max. Door size
Max. Door weight
Glass thickness

FOR YOUR SAFETY AND CORRECT INSTALLATION

Meaning of symbols
Warning
Caution
Caution
If not followed, injury or damage may result.
use the product safely.
Installation DRAWING
4 of this product.
Cabinet Inside Width
Glass Width＝
2
2
Double swinging door lock
XL-GC01
(Sold separately)
W500 × H1000
7.5 kgf (73.5N)
5、6 mm
Prohibited Required
9
+
XL-GC07D-CR
Glass Door
Side
Panel
Top Panel
Side
Panel
10
Overlay for top/bottom
panel should be 12 mm
or more.
Overlay for side panel
should be 10 mm or
more.
COMPONENT PARTS
Tapping screw
4.5×20
Countersunk head
screw M6×12

GLASS CUTTING

Right Opening Shown. A left opening door is the mirror
opposite.
1 Please consult a glass supplier.
※
Cut out for
XL-GC01
Sold separately)
glass door lock
Hinge body
Gasket
Tube
Gasket
Back plate
28 30
19
C2
R9.5
C1
1
