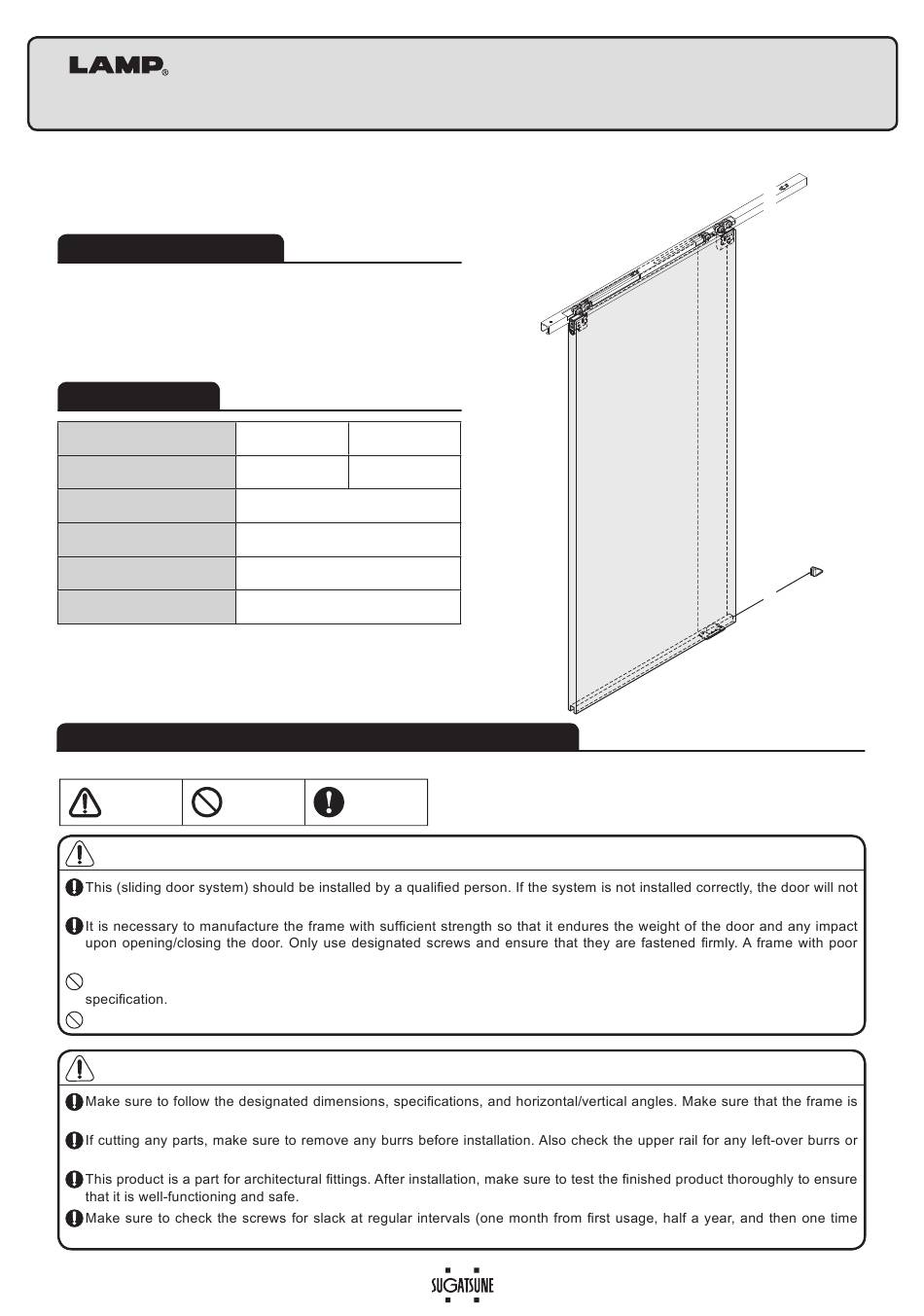

Lamp FD50-H Installation Manual

FD50-H SLIDING DOOR SYSTEM Installation Manual
(Two-Way Soft Close, Recessed Mount Roller )
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.

ABOUT THE PRODUCT

This product is a parts set for an indoor sliding door system.
●
Provides the door with a two step soft motion in each
●
direction when opening and closing.
Easy door installation and adjustment.
●

SPECIFICATION

Door height
Door width
Min.Door thickness
Max.Door weight
Height adjustable range
Forward / backward
adjustment
・ The closing speed of the soft closing type door may change due to
ambient temperature, operating method or installation quality.
・ Recommended ambient temperature range is 5 to 40 ℃ .

FOR YOUR SAFE WORK AND CORRECT INSTALLATION

Meaning of symbols
Warning
Caution
WARNING:
If not followed, death or serious injury may result.
operate smoothly, and may cause injury.
strength or loose screws might result in the door falling and causing injury.
Do not try to use this product for anything other than its original purpose. Do not use any part for applications outside of its
Do not disassemble nor modify any parts other than those described in this document.
Caution:
If not followed injury or damage may result.
not warped, since it may affect the movement of the door.
scraps and remove these.
every year is recommended).
Max.2400 mm 2401‐2700 mm
680‐1500 mm 800‐1500 mm
24 mm
50 kg / door
3 mm upward, 4 mm downward
± 2 mm
Prohibited Required
Part No.FD50DHCP
When vertical frame is
not used, use a door
stopper.
1
