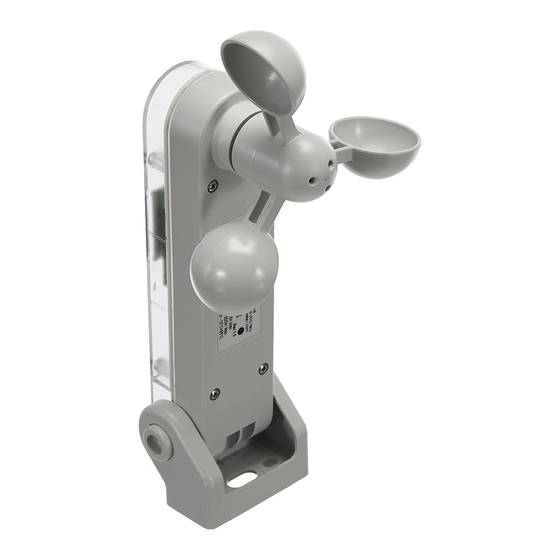

BeWeather Electronic Control

Unit

An electronic control unit integrated into the Wind, Sun and
Rain Sensor compartment, for the automation of sun blinds
and rolling window shutters, with the possibility of radio control
operation for individual and/or centralised control.
- Mod. (BeWeather 306) :
- Mod. (BeWeather 330) :
- Mod. (BeWeather 418) :
- Mod. BeWeather 433 :
- Mod. BeWeather 433 SET:
- Mod. BeWeather 868 :
( ) Product intended for those countries where its use is
permitted.
T
ECHNICAL DATA
- Power supply:
- Motor output
- Operating temperature:
- Radio receiver
- Compatible radio controls:
- Anemometer sensitivity:
- Sun sensor sensitivity:
- Number of codes that may be stored:
- Packaging dimensions:
mm.
- Container:
C
CN 1 T
ONNECTION OF
1: Earth.
2: 230 V line input (Phase).
3: 230 V line input (Neutral).
4: Upward movement motor output.
5: Shared motor output.
6: Downward movement motor output.
I
O
NITIAL
PERATING CONDITION
The device can only operate in conjunction with one or more
radio controls. There is no radio control code stored in the
default factory setting.
O
M
PERATION USING DIFFERENT
Different models of radio control may be programmed. By
storing a code (1 button) a cyclic step-by-step operation (Up-
Stop-Down) may be achieved, and by storing two different
codes (2 buttons) different commands are produced, one for
Up and one for Down. Storing three different codes (3 "BeFree"
series buttons) produces three different commands: the first for
Up, the second for Stop and the third for Down.
Operation using a 1-button radio control:
The following type of operation is obtained using a radio
control with a single button: the first press controls the upward
movement of the shutter until the motor timer stops. The
second press controls the downward movement of the shutter.
If the button is pressed before the motor stops running, the
control unit will stop the shutter moving and the button will
need to be pressed again to reactivate the motor in the
opposite direction.
Operation using a 2-button radio control:
By using a radio control with 2 buttons, the following processes
may be carried out: the first button ("Up") controls the upward
movement, until the motor has stopped running, and the
second button ("Down") controls the downward movement of
the shutter. If the upward movement is interrupted with another
"Up" command, the motor will continue to run in the upward
movement direction. If, however, the movement is interrupted
with a "Down" command, the control unit will stop the motor.
"Narrow Band" 433.92
"Narrow Band" 868.3
230V~ 50/60Hz 600W Max.
:
230V~ 500W Max.
:
12-18 Bit or Rolling Code
5 ÷ 40 Km/h
5 ÷ 40 Klux
240 x 185 x 110
PC UL94V-0 (IP54)
ERMINAL BOARD
R
C
ODELS OF
ADIO
ONTROL
GB
The procedure remains the same for the downward
movement phase.
Operation using a 3-button radio control (BeFree x1):
The following type of operation is obtained using the BeFree x1
radio control: the (Up) button controls the upward movement
until the end of the motor time, the (Stop) button causes all
movement to stop and the (Down) button controls the
downward movement. If a stop command is sent during the
306
MHz
upward or downward movement, the control unit causes this
330
MHz
movement to stop. If a command that is in the opposite
418
MHz
direction to the current movement is sent during the upward or
433,92 MHz
downward movement, the control unit causes the shutter to
MHz
change direction.
MHz
Operation using a 3-button radio control (BeFree x3 - X6):
When using the BeFree x3 - x6 radio control, you will obtain
the same operation as previously described for the BeFree x1
version; in addition, by using the keys (-) and (+) at the sides of
the radio control it is possible to select the UP – STOP –
DOWN controls for 3 different types of use (BeFree x3) or for 6
different types of use (BeFree x6). In addition, by using the
keys (-) and (+) at the sides of the radio control it is possible to
-10÷55°C
enable and disable the sun sensor (the selection is confirmed
see model
by a quick UP / Down movement of the motor).
I
NVERSION OF THE ROTATION MOTOR
If you notice that when pressing the UP key on the radio-
10 Max.
control the control unit causes the shutter to move upwards
instead of downwards, simply repeat the programming
procedure pressing the DOWN key instead of the UP key, or
invert the motor's Upward movement wire and the Downward
movement wire.
G
ROUP OR
It is also possible to enter two identical codes ( buttons ) from
one radio control onto all the control units or a group of them
which are situated at a maximum distance of 20 metres from
the point of command, in order to obtain general or partial
motion of more than one automation.
A
NEMOMETER
The electronic control unit will cause the sun shade to move
upwards every time the wind exceeds the selected threshold.
S
S
UN
ENSOR
The electronic control unit controls the downward movement of
the sun shade after 5 minutes during which the brightness is
greater than the threshold selected using the VR1 trimmer and
displayed when the SUN LED lights up; it also controls the
upward movement of the shade after 5 minutes during which
the brightness is below the selected threshold.
Sun sensitivity adjustment ( 5 ÷ 40 Klux )
The control unit allows you to adjust the sensitivity of the Sun
Sensor using the VR1 trimmer. When the SUN LED lights up
on the control unit, this indicates that the intensity of the sun
exceeds the selected threshold; this enables you to use the
current light conditions as a reference when setting the desired
value.
R
S
AIN
ENSOR
The electronic control unit will cause the sun shade to move
upwards as soon as the sensitive part of the rain sensor gets
wet with water as displayed when the RAIN LED lights up.
O
PERATION PRINCIPLES
SW1
1
G
C
ENERAL
ENTRALISATION
O
PERATION
O
PERATION
O
PERATION
SW1
SW1
SW1
Rev. 1.2
31/01/08
