Seav LG 2060 New Reader Instruction Manual

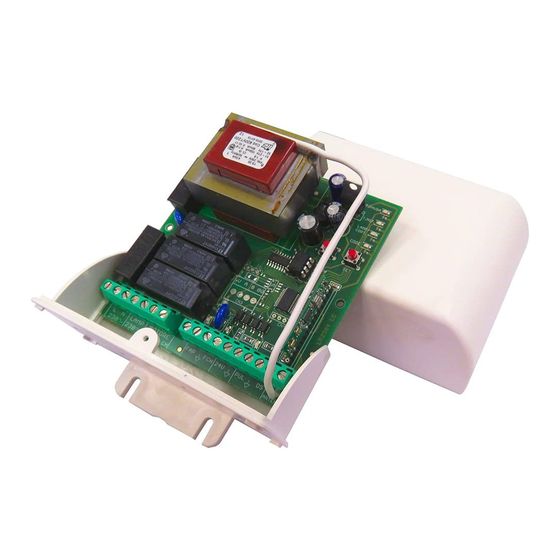

ELECTRONIC PANEL
LRX 2060 NEW READER
Single-phase electronic control unit for the automation of
sliding gates, doors and barriers with incorporated radio
receiver for the implementation of commands given via Radio
control, Transponder, Digital keyboard and Smartphone.
The following can be connected to the control unit via BUS RS-
48:
- up to 2 BeSafe Readers New
- up to 2 BeSafe KEYBOARD selectors
- up to 2 BeSafe NFC Readers
- Mod. LG 2060 New Reader
- Mod. LRS 2060 New Reader
- Mod. LRS 2060 New SET Reader : 433.92 Mhz narrow band
- Mod. LRH 2060 New Reader
I
MPORTANT FOR THE USER
- The device can be used by children over 8 years of age
and persons with reduced physical or psychological
abilities or with little knowledge and experience only if
supervised or educated in its operation and safe use, in
order to also understand the dangers involved in its use.
- these instructions are also available at the website
www.seav.com
- Do not allow children to play with the device and keep
the radio controls away from their reach.
- Frequently examine the system to detect any signs of
damage. Do not use the device if it is in need of repair
work.
-Always remember to disconnect the power supply before
carrying out any cleaning or maintenance.
- Cleaning and maintenance must not be carried out by
unsupervised children
- ATTENTION: keep this instruction manual safe and
observe the important safety requirements contained
herein. Failure to comply with the requirements may
cause damage and serious accidents.
I the
MPORTANT FOR INSTALLER
1) Before automating the frame, check that it is in good
condition, in compliance with the Machinery Directive
and with EN 12604.
2) Check that the location where the installation is
located enables compliance with operating temperature
limits specified for the device.
3) The safety of the final installation and compliance with
all prescribed Standards (EN 12453 - EN 12445) is the
responsibility of the person who assembles the various
parts to construct a total closing.
4) Use safety devices capable of monitoring the status
of their connection to the electrical control unit.
5) Once installation is finished, it is recommended that
all necessary checks
programming of the control panel and correct installation
of safety devices) to ensure that compliant installation
has been performed.
6) Fix the control unit to a wall, using the relevant
support which is fitted to the casing, in such a way as to
leave said support facing downwards and insert the fixing
screws in the special holes.
: Without radio receiver
: 433.92 Mhz
: 868.30 Mhz narrow band
be performed (appropriate
GB
7) The control unit does not have any type of isolating
device for the 230 Vac line. It is therefore the
responsibility of the installer to set up an isolating device
inside the system. It is necessary to install an omnipolar
switch, surge category III. It must be positioned to
provide protection from accidental closing, pursuant to
point 5.2.9 of EN 12453.
8) Cables for power and connection to the motor
suitable for insertion in the pg9 cable glands provided
must have an outside diameter between 4.5 and 7 mm.
The internal conductors wires must have a nominal
section of 0.75mm2. If a raceway is not used, use
H05RR-F cables. Pay careful attention when fastening
the cables so that they are anchored in a stable manner.
Furthermore, care is required when drilling holes in the
outside casing where connecting and power supply
cables will pass, and when assembling the cable glands,
so that everything is installed so as to maintain the
panel's IP protection characteristics.
9) The gear motor used to move the frame must comply
with the requirements of point 5.2.7 of EN 12453.
10) In compliance with 5.4.2 of EN 12453, it is
recommended to use gear motors equipped with an
electrical-mechanical release device, so that the frame
can be moved manually in case of necessity.
11)
In compliance with 5.4.3. of EN 12453, use electrical-
mechanical release systems or similar devices which stop the
frame safely in the end run position.
12) The various electrical components external to the
control unit must be cabled in accordance with standard
EN 60204-1 as amended, and as set forth in point 5.2.7
of EN 12453. The power and connection cables must be
secured through the use of cable glands supplied.
13) The assembly of a push button panel for manual
control must be completed positioning the push button
panel in such a way that the user is not placed in a
dangerous position.
14) The safety function ensured by the control unit is
active only during closing, therefore, protection on
opening must be ensured in the installation phase with
measures (guards or safety distances) independent of
the control circuit.
15) For proper functioning of the radio receiver, if using
one or more control units, the installation at a minimum
distance of at least 3 metres one from the other is
recommended.
LG
2060 New Reader
LRS
2060 New SET Reader
they comply with the specifications of the Directives
RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU.
1
The electronic control unit:
- LRS
2060 New Reader
- LRH
rev. 3.0 13/06/2016
2060 New Reader
