for example, 90% of RH at 20 C (68 F). Altitude above sea level should
not exceed 1000 m. Ambient conditions have strong impact on the end
product quality.
A ventilation hood measuring at least 800x800mm
must be provided above the machine, with a min-
imum capacity of 750 m /h!
3

Design and operating principle

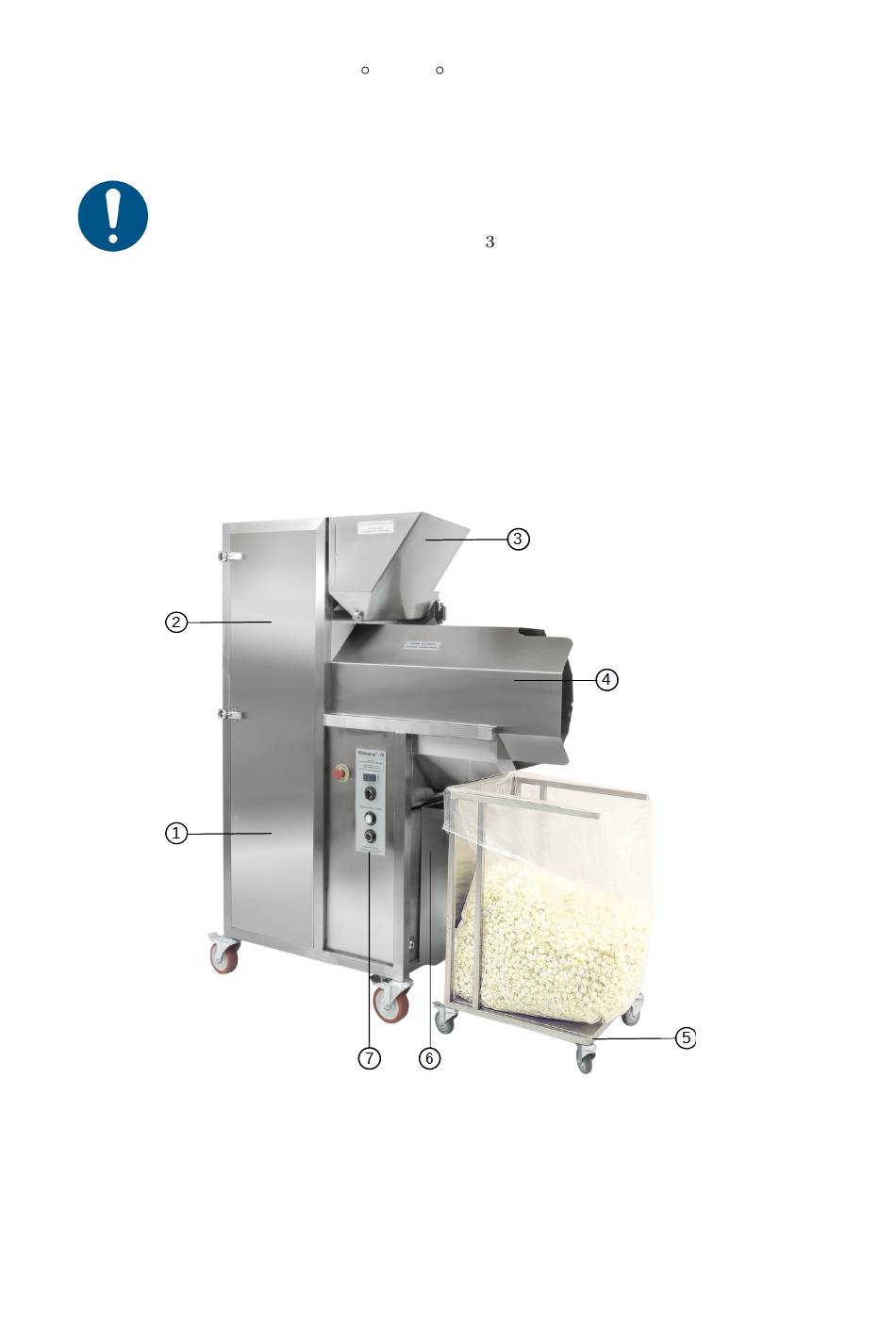

Main components of the machine are: 1 – Turbine; 2 – Chamber; 3 –
Hopper with feeder; 4 – Sifter (perforated drum); 5 – Popcorn cart with
plastic bag; 6 – Scrap tray; 7 – Control panel, see Figure 1.
Figure 1: Robopop 75 main components
7
