Temperature limiter setup

Temperature limiter have three setting groups:
first setting group, second setting group, and SV
setting group (the main indication mode). The set-
tings must be changed in the same order as they
appear in the list. Note that after changing In-t
(temperature sensor type) or UnI-t (temperature
unit) values, parameters H-Su, L-Su, AL1, AL2,
AHYS must be set again. The regulator has more
parameters than listed below; if you see a param-
eter not from the list, skip it and proceed to the
next one.

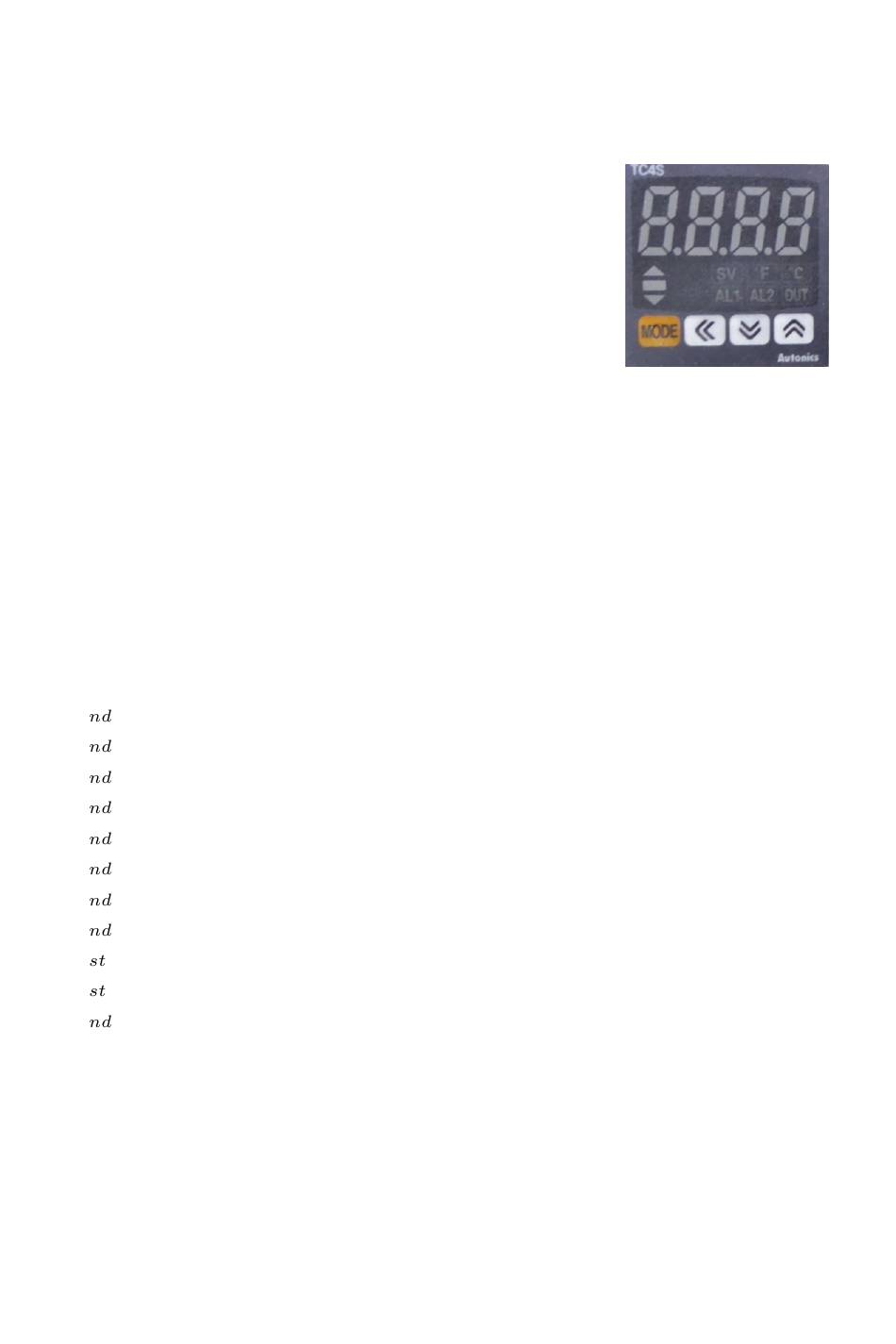

To access the second group of parameters press and hold orange MODE
button for 4 seconds; once you see PAr2 on the display, release the MODE
button. To access the first group of parameters, press and hold the MODE
button 2 seconds, until you see PAr1 on the display. Use MODE button
to list parameters. Actual value of the parameter is shown in the lower
line of the display. Use up or down arrow keys to change the value. Once
the new value is set, press MODE button to proceed to the next parameter.
Group Param
2 LoC
2 In-t
2 L-Su
2 H-Su
2 C-nd
2 oUt
2 AL-1
2 AHYS
1 AL1
1 HYS
2 LoC
SV SV
Value Description
oFF Unlock all settings for changing
YCA Temperature sensor type
250
SV low-limit value
400 SV high-limit value
onoF Control type
rLY Control output
An1._ AL1 alarm operation mode
50 Alarm output hysteresis
0 AL1 alarm temperature
50 Hysteresis
LoC2 All settings locked, except SV
350 Default temperature
