1. Mount appropriate Openpath boards into the correct positions by postioning pre-mounted spacers over appropriate holes on the
backplane and depressing down on board to secure spacer to the backplane (Fig. 2, pg. 3).
2. Fasten TC1 backplane to Trove1 enclosure utilizing pan head screws (provided).
Access Controller Position Chart for the Following Openpath Modules:
Openpath
OP-ACC
OP-EX-4E
OP-EX-8E
OP-16EM

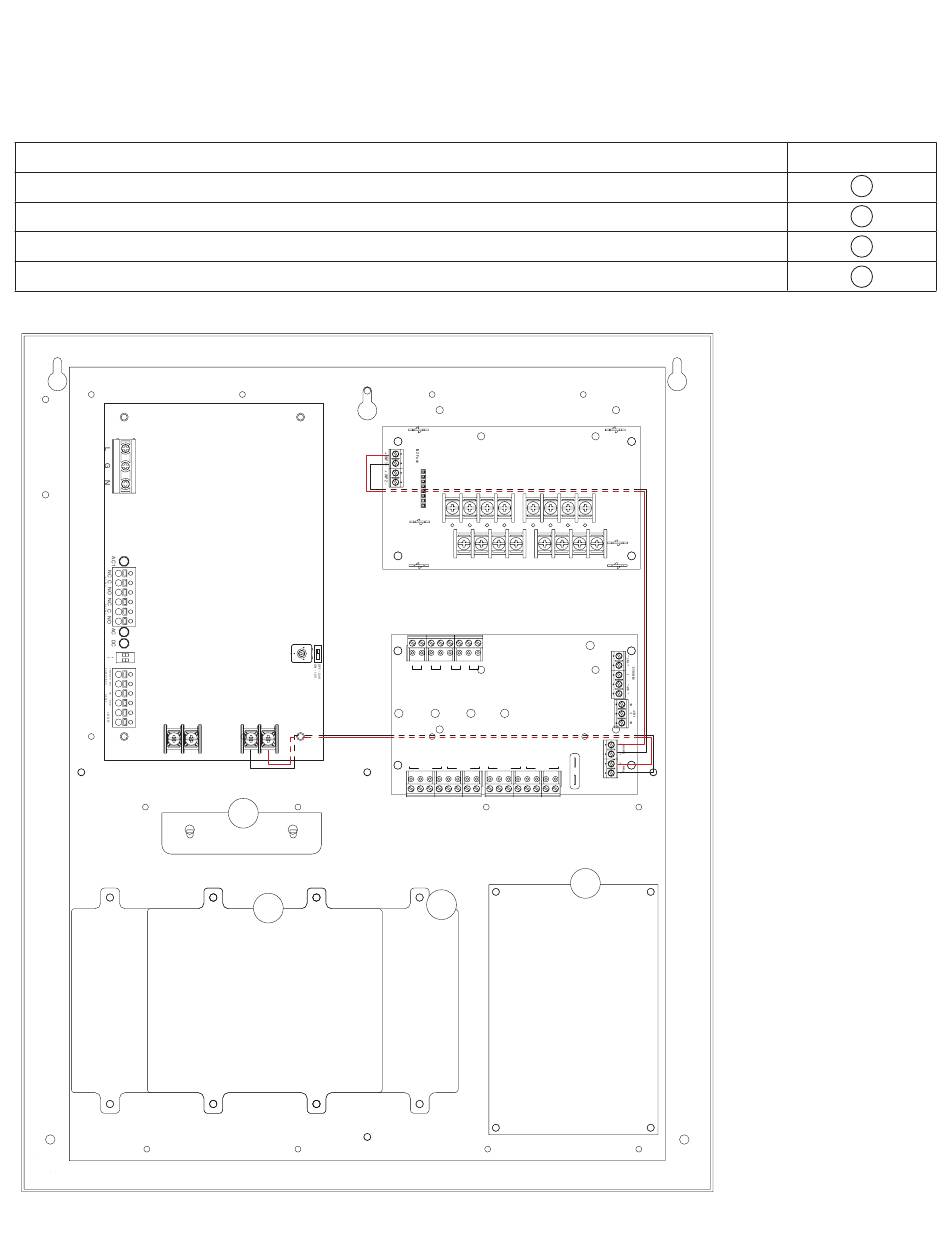

Fig. 2
Altronix - eFlow4NB
- BAT +
Trove Openpath Kits
T1PHK1F4S(D): Configuration of Openpath Boards
PWR1+
ON
LED1
- DC +
A
B
IN1 Fuse
Altronix - PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7
COM(-)
N
PWR2+
1 2 3 4 5 6 7
Common Power Outputs (NEG)
VR6 is mounted below PDS8(CB)
and connected via 8-pin connector
TRIGGER
INPUT TRG
IN GND IN GND IN GND IN GND
1 2 3 4
Altronix - ACM4(CB)
LED2 LED3 LED4
MAIN
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
D
C
PWR1+
P
OUT8
N
COM(-)
PWR2+
8
Mounting Position
A
B
C
D
