Access & Power Integration
T1RAG3F8
Fully assembled kit includes:

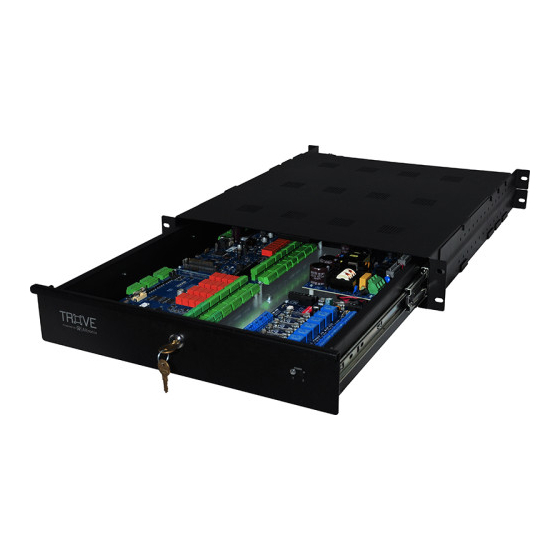

- Trove1R rack enclosure with TAG1R Altronix/AMAG backplane
- (1) eFlow6NB - Power Supply/Charger
- (1) VR6 - Voltage Regulator
- (1) ACMS8 - Fused Dual Output Access Power Controller
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding
Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T1RAG3F8_031021
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix TROVE T1RAG3F8
Summary of Contents for Altronix TROVE T1RAG3F8
- Page 1 Access & Power Integration T1RAG3F8 Fully assembled kit includes: - Trove1R rack enclosure with TAG1R Altronix/AMAG backplane - (1) eFlow6NB - Power Supply/Charger - (1) VR6 - Voltage Regulator - (1) ACMS8 - Fused Dual Output Access Power Controller All components of this Trove kit are UL Listed sub-assemblies.
- Page 2 Overview: Altronix T1RAG3F8 Trove rack kit is pre-assembled and consist of Trove rack enclosure/backplane with factory installed Altronix power supply/charger and sub-assemblies. Kits accommodate up to two (2) AMAG M4000 modules for up to eight (8) doors in a single enclosure.
- Page 3 1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware). 2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down. Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig.
- Page 4 Assembling and Attaching Z Bracket Wire Management Accessory (included): Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory. Hardware (included): Fig. 3 Ten (10) bolts and eight (8) lock nuts. 1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig.
- Page 5 Note: AMAG M4000 modules have one (1) screen. Please make sure that they are mounted correctly, as shown in Fig. 5 below. 4. Fasten TAG1R backplane to Trove1R rack enclosure utilizing hardware (provided). Fig. 5 To IEC connector Altronix - eFlow6NB AMAG - M4000 Fig. 5a Pan Head Screw VR6 is...
- Page 6 Notes: - 6 - T1RAG3F8 Installation Guide...
- Page 7 Notes: T1RAG3F8 Installation Guide - 7 -...
- Page 8 116.1mm 26.5” 673.1mm 19” (482.6mm) 3.375” 85.8mm Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IIT1RAG3F8...
