Rego-T
LØV-R
Commissioning and pressure relief damper
for rectangular ducts
• Low noise level
• Easy commissioning
• Provides even air-flow in duct
TROX Auranor Norge AS
PO Box 100
NO-2712 Brandbu
GB0807
03.15
Telefon + 47 61 31 35 00
Telefaks + 47 61 31 35 10
e-mail: firmapost@auranor.no
www.trox.no
Advertisement
Table of Contents
Related Manuals for Trox Technik Auranor Rego-T
Summary of Contents for Trox Technik Auranor Rego-T
- Page 1 GB0807 03.15 Rego-T LØV-R Commissioning and pressure relief damper for rectangular ducts • Low noise level • Easy commissioning • Provides even air-flow in duct TROX Auranor Norge AS Telefon + 47 61 31 35 00 Telefaks + 47 61 31 35 10 PO Box 100 e-mail: firmapost@auranor.no NO-2712 Brandbu www.trox.no...

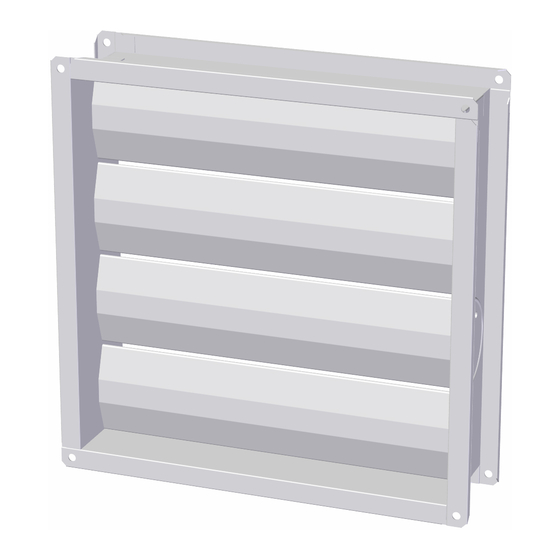

- Page 2 Rego-T DIMENSIONS AND WEIGHT, Rego-T APPLICATION Min. width: 200mm. Max width: 1400mm. Rego-T is a user-friendly commissioning damper with an extremely Module: 50mm low noise level. The unit is intended for manual operation only, and Min. height: 50mm. Max height: 1400mm. Module: 50mm correct installation according to air flow is crucial. NB! Actuator- Weight in kg = damper area in m² x factor 20. controlled operation is not possible. Max operating temperature for the damper is 100°C. DESIGN Rego-T is available in 3 different designs. 1. Height (H) = 50, 75, 100 and 150mm with one damper-blade o nly. NB! For installation in duct with internal insulation, dimensions must be taken into consideration for the 150mm unit as the damper blade protrudes from the damper frame. 2. Standard design with damper blades moving in opposite directions as shown in fig. 1. 50mm module. 3. Standard design with circular spigot available in dim. from a nd incl. Ø400 to and incl. Ø1250, shown as D in fig. 2. Shut-off level is max 90%. The damper lever is equipped with a graduated scale, and can be locked in position with 2 thumbscrews. Damper blades are pinion operated. Rego-T is available in other materials and/or dimensions on request. MATERIALS AND SURFACE COATING Frame profiles and damper blades are supplied in a galvanised steel finish, pinion in PBT plastic. Rego-T in dimensions Ø400, Ø500 and Ø630, featuring circular con- nection collars, are fitted with EPDM rubber gaskets. BESTILLINGSKODE, Rego-T ORDER CODE, Rego-T Rego-T - 1200 - 800 / 0 - 0 SM = Special material Product...
