XEK­JZ
X
testregistrierung
BVDAX for smoke extract
in combination with a fre­
quency inverter
With TROXNETCOM as
an option
Minimum leakage with
both high and low tem­
peratures due to two­
level sealing system
For mechanical smoke
extract systems and
pressurisation systems
Maximum performance
with maximum size B =
1.20 m, H = 2.03 m
08/2017 – DE/en

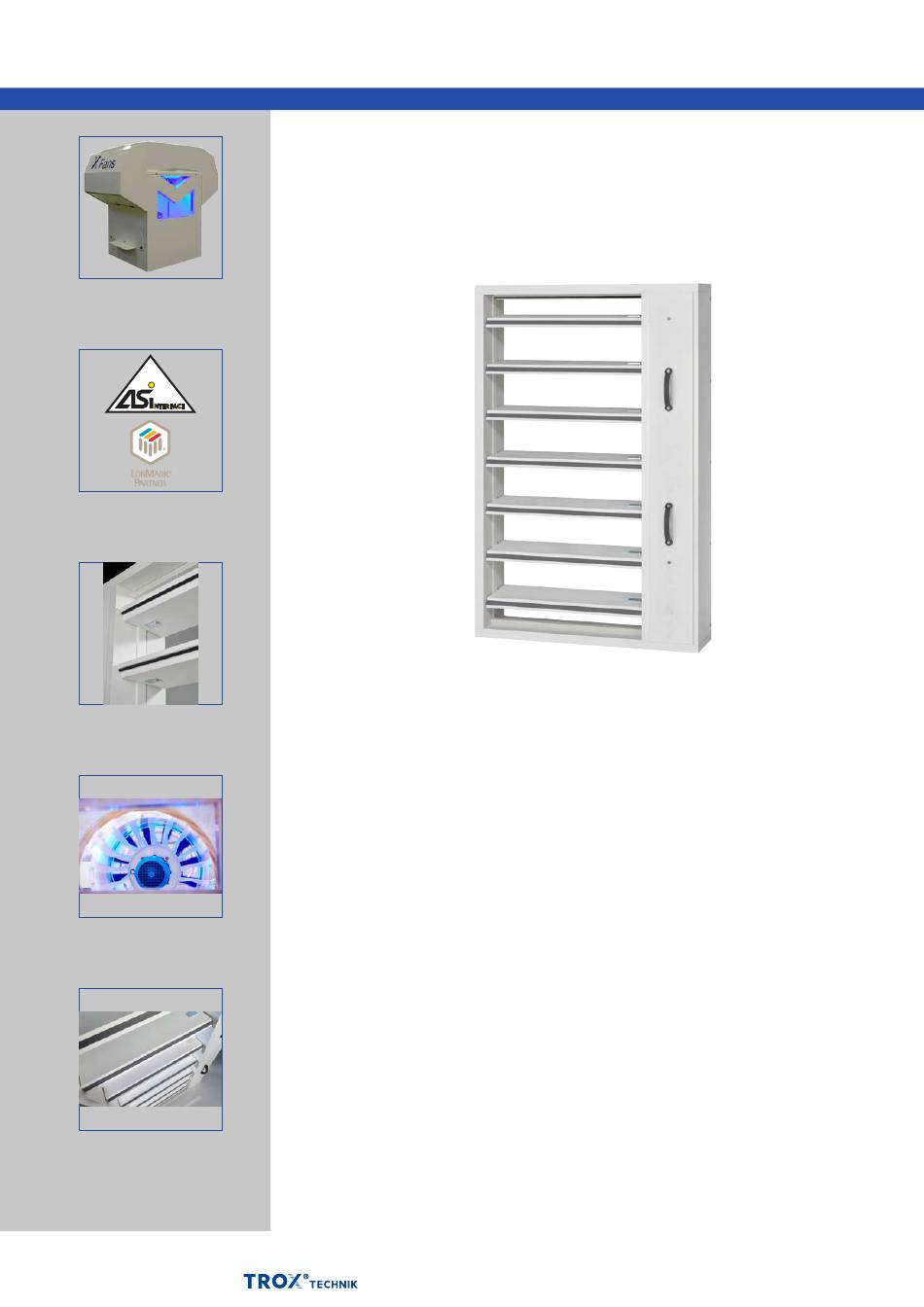

Smoke control dampers
Type EK­JZ
For use in mechanical smoke extract systems, pressu­
risation systems, and natural smoke and heat exhaust
systems, also for use as an additional supply air inlet

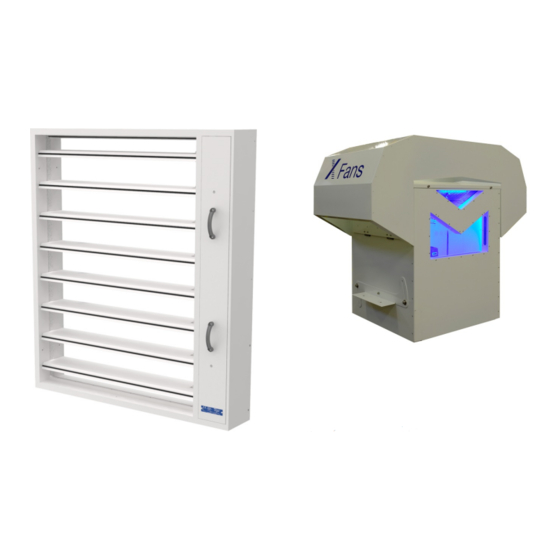

Rectangular smoke control dampers with ventilation function, low installation depth
and large cross section for heat and smoke exhaust with mechanical smoke extract
systems, for the provision of additional supply air and for use in pressurisation
systems
■ Nominal sizes 200 × 430 – 1200 × 2030 mm, for smoke gas flow rates of up to
87,700 m³/h or 24,360 l/s at 10 m/s
■ Quick and easy installation in or on building structures, for smoke and heat
exhaust, remote control with an actuator
■ Casing, damper blades and actuator encasing made of temperature­resistant
calcium silicate
■ Pressure level 2 (operating pressure –1000 to 500 Pa)
■ Automatic release (AA), option of manual override (MA)
■ For smoke extract ducts from 35 mm wall thickness
■ C = for combined smoke extract and ventilation systems
10,000
■ Closed blade air leakage to EN 1751, class 3
■ Casing air leakage to EN 1751, class C
Optional equipment and accessories
■ Cover grille (various constructions)
■ Connecting subframe for calcium silicate and sheet steel smoke extract ducts
■ Integration into the central BMS with TROXNETCOM
PD – EK­JZ – 1
