Trox Technik FKR-EU Manual

FKR-EU 1.1 –
XFKR-EU
X
testregistrierung
FKR-EU with fusible link
for 72 °C or 95 °C
CE compliant according
to European regulations
With TROXNETCOM
as an option
ATEX certification
Tested to VDI 6022
03/2017 – DE/en

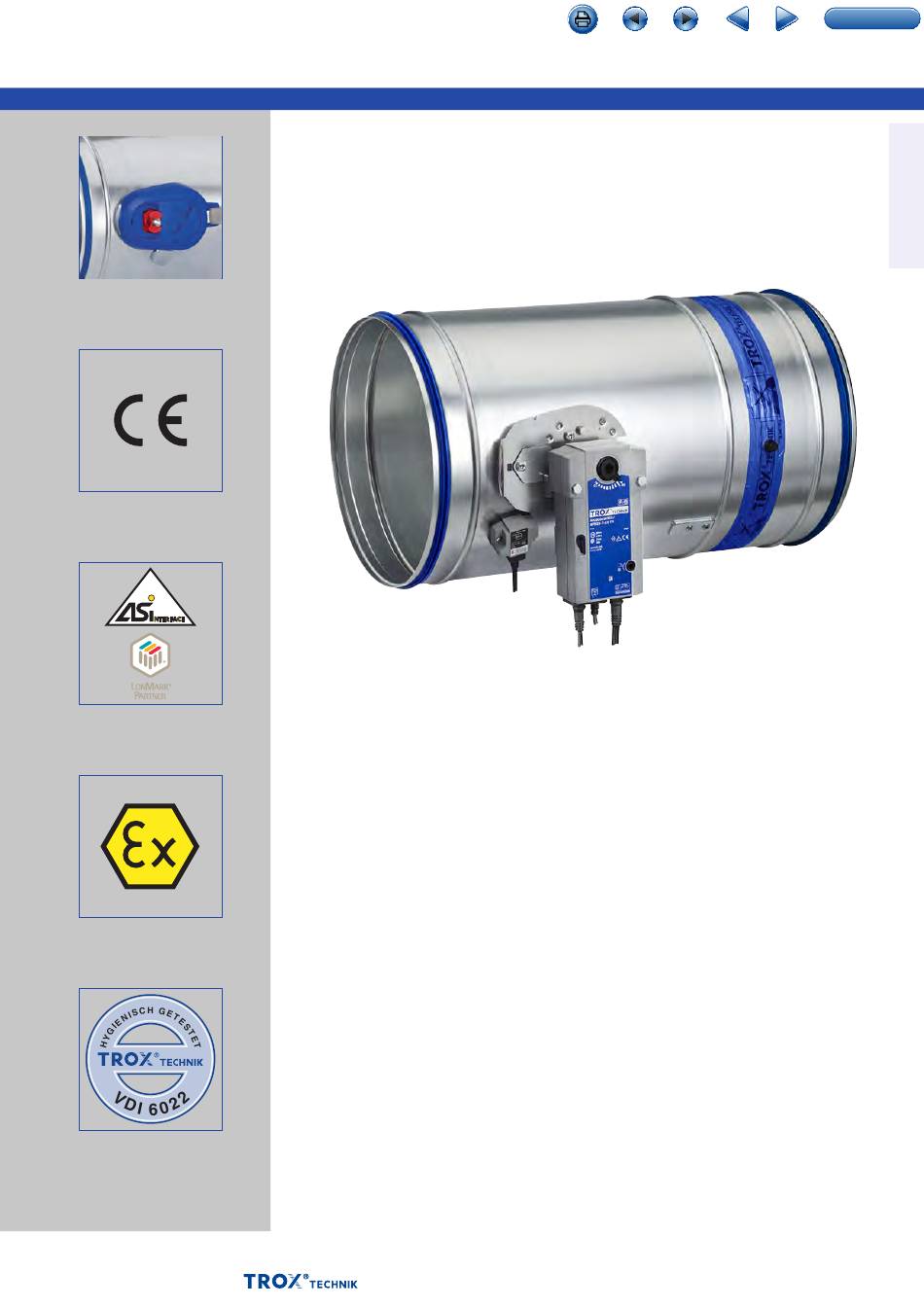

Fire dampers
Type FKR-EU
For large diameters, with or without a flange

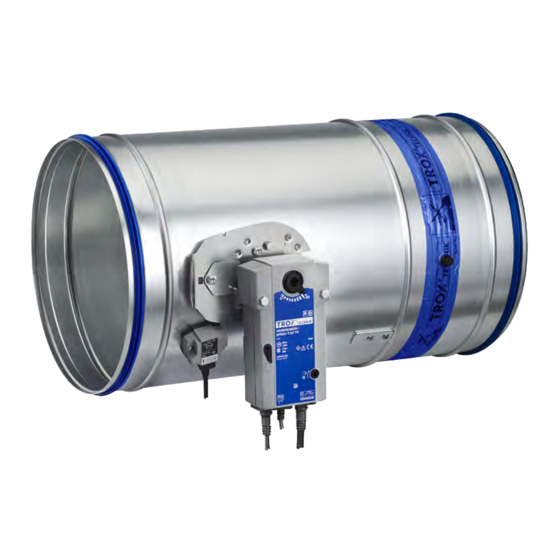

Large circular fire damper for the isolation of duct penetrations
between fire compartments, available in nine nominal sizes
■ Nominal sizes: 315 – 800 mm
■ Low differential pressure and sound power level
■ Flanges as an option
■ Explosion-proof construction (ATEX) as an option
■ Optional stainless steel casing or powder-coated casing
for increased corrosion protection
■ Integration into the central BMS with TROXNETCOM
Optional equipment and accessories
■ Electric actuator 24 V/230 V
■ Release temperature 72/95 °C
■ Duct smoke detectors
TOC
1
K4 – 1.1 – 1
