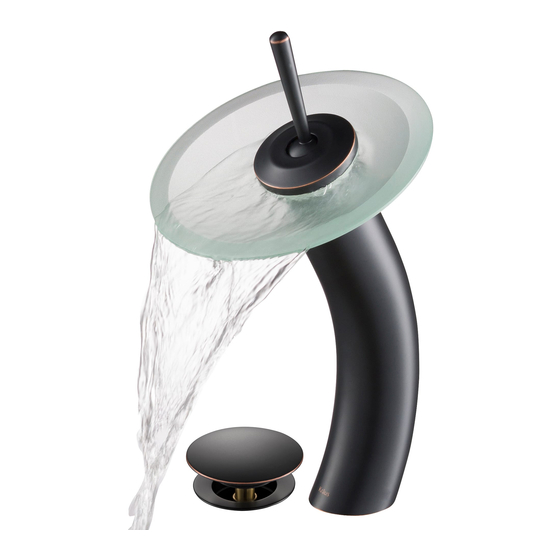

Single lever vessel glass waterfall bathroom faucet
Hide thumbs Also See for KGW-1700:

Advertisement

Quick Links

R
INSTALLATION MANUAL
Single Lever Vessel Glass Waterfall
Bathroom Faucet
KGW-1700
www.kraususa.com
I
Toll Free: 1.800.775.0703
I
© 2021 Kraus USA Plumbing LLC
I
REV. October 31, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KGW-1700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kraus KGW-1700

  • Page 1 INSTALLATION MANUAL Single Lever Vessel Glass Waterfall Bathroom Faucet KGW-1700 www.kraususa.com Toll Free: 1.800.775.0703 © 2021 Kraus USA Plumbing LLC REV. October 31, 2021...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
  • Page 3: Prior To Installation

    Prior to Installation: Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation.
  • Page 4 Diagram and Parts List Decorative Ring Glass Disc Lever Seal for Glass Disc Faucet Body Mounting Hardware A. Rubber Washer B. Metal Washer C. Mounting Nuts D. Mounting Screws Hot & Cold Waterlines Hex Wrench...
  • Page 5 Faucet Dimensions 7 5/8" (195mm) 7 1/8" (181mm) 12.5° 12.5° 12.5° 12.5° 6 1/8" (155mm) 58.2° 2 1/8" (54mm) 1 1/4"-18UNEF-2A 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6: Rough-In Dimensions

    KRAUS shall not be held accountable for any custom installation issues. Under no circumstances will KRAUS be held liable for the cost of the repair or replacement of installation materials including but NOT limited to: marble, stone, granite countertops, tiles, etc. Deviations from recommended installations, misuse, neglect, abuse, modifications or alterations may void your warranty.
  • Page 7 Step 1. Remove mounting hardware Remove mounting hardware (6A, B, C, & D) from the mounting pipe. Step 2. Remove decorative ring Remove decorative ring (1) from faucet body (5).
  • Page 8 Step 3. Install glass disc Install glass disc (2) on faucet body (5). Secure it using decorative ring (1). Backward NOTE: Hand-tighten only (decorative ring) Forward Step 4. Install faucet Insert faucet body (1) into the hole on the countertop. Attach rubber washer (6A), metal washer (6B), mounting nut (6C), and mounting screws...
  • Page 9 Step 5. Secure mounting hardware Adjust direction of faucet body (5). Tighten mounting nut (6C) until snug. Tighten mounting screws (6D) to nut with a Phillips head screwdriver until snug. Step 6. Connect waterlines to main valve Connect hot and cold waterlines (7) to the angle stops.
  • Page 10 Step 7. Turn water on for a minute to ensure proper water flow. Open Cold...
  • Page 11: Replacement Parts

    Replacement Parts Replacement Parts List Finish/Color Part # 1. Decorative Ring & O-ring CH, SN, ORB* KP07059 2. Glass Disc 3. Lever CH, SN, ORB* KP07057 4. Seal for Glass Disc KP07061 KP07063 5. Locking Nut KP07062 6. Cartridge KP07064 7.
  • Page 12: Troubleshooting

    Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose. Unscrew the decorative ring (by hand) Leakage under the faucet and remove the glass disc. Loosen set handle screw with a hex wrench located underneath lever and remove lever.
  • Page 13 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
  • Page 14 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
  • Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
