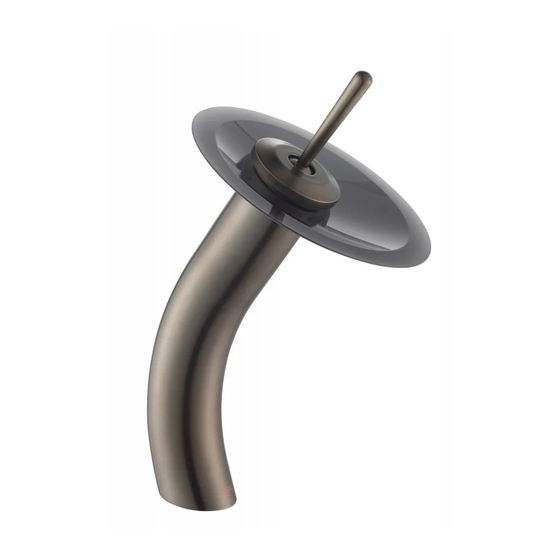

- Page 1 INSTALLATION MANUAL Single Lever Vessel Glass Waterfall Bathroom Faucet KGW-1700 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. July 17, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus faucet. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. Care & Maintenance To keep the product clean &... -
Page 4: Tools Required
Diagram and Parts List Decorative Ring Glass Disc Lever Seal for Glass Disc Faucet Body Mounting Hardware A. Rubber Washer B. Metal Washer C. Mounting Nuts D. Mounting Screws Hot & Cold Waterlines Hex Wrench Tools Required Adjustable Wrench Phillips Screwdriver Pipe Tape... - Page 5 Faucet Dimensions 7 5/8" (195mm) 7 1/8" (181mm) 12.5° 12.5° 12.5° 12.5° 58.2° 2 1/8" (54mm) 3 1/2" (90mm) 6 1/8" (155mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Remove mounting hardware Remove mounting hardware (6A, B, C, & D) from the mounting pipe. Step 2. Remove decorative ring Remove decorative ring (1) from faucet body (5).
- Page 7 Step 3. Install glass disc Install glass disc (2) on faucet body (5). Secure it using decorative ring (1). Backward NOTE: Hand-tighten only (decorative ring) Forward Step 4. Install faucet Insert faucet body (1) into the hole on the countertop. Attach rubber washer (6A), metal washer (6B), mounting nut (6C), and mounting screws...
- Page 8 Step 5. Secure mounting hardware Adjust direction of faucet body (5). Tighten mounting nut (6C) until snug. Tighten mounting screws (6D) to nut with a Phillips head screwdriver until snug. Step 6. Connect waterlines to main valve Connect hot and cold waterlines (7) to the angle stops.
- Page 9 Step 7. Turn water on for a minute to ensure proper water flow. Open Cold...
-
Page 10: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Decorative Ring & O-ring CH, SN, ORB, SFS* KP44083 2. Glass Disc 3. Lever CH, SN, ORB, SFS* KP44084 4. Seal for Glass Disc KP44085 KP44086 5. Locking Nut KP44087 6. Cartridge KP44088 7. -
Page 11: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under the faucet Locking nut has come loose. Unscrew the decorative ring (by hand) and remove the glass disc. Loosen set handle screw with a hex wrench located underneath lever and remove lever. - Page 12 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 13 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
