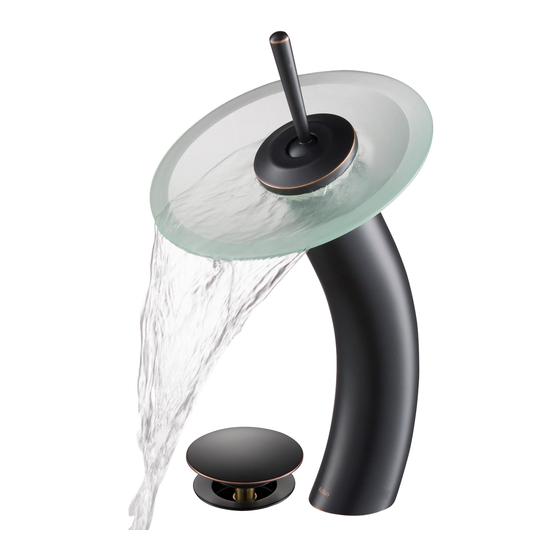

Kraus KGW-1700 Installation Manual
Single lever vessel glass waterfall
bathroom faucet
Hide thumbs
Also See for KGW-1700:
- Installation manual (15 pages) ,
- Installation instructions (3 pages) ,
- Installation manual (14 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kraus KGW-1700
Summary of Contents for Kraus KGW-1700
- Page 1 I N S TA L L AT I O N MA N UA L Single Lever Vessel Glass Waterfall Bathroom Faucet KGW-1700 www.kraususa.com I toll free: 1.800.775.0703 I © 2013-2014 Kraus USA Inc.
- Page 2 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800- 775-0703 for a replacement • Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List...
- Page 5 Diagram and Parts List Tools you will need: 1. Decorative Ring 2. Glass Disc 3. Lever Adjustable Wrench 4. Seal for Glass Disc 5. Faucet Body 6. Mounting Hardware (A) Rubber Washer (B) Metal Washer (C) Mounting Nut (D) Mounting Screws Phillips Screwdriver 7.
- Page 6 Dimensions 7 1/8" (181mm) 12.5° 12.5° 12.5° 2 1/8" (54mm) 1 1/4"-18UNEF-2A 9/16"-24U...
- Page 7 Dimensions 7 11/16" (195mm) 12.5° 2.5° 12.5° 58.2° 1/8" 54mm) 3 9/16" (90mm) 6 1/8" (155mm) 9/16"-24UNEF-2B...
- Page 8 Step 1: Remove Mounting Hardware Remove mounting hardware (6A, B, C, & D) from the mounting pipe Step 2: Remove Decorative Ring Remove decorative ring (1) from faucet body (5)
- Page 9 Step 3: Install Glass Disc Install glass disc (2) on faucet body (5). Secure it using decorative ring (1) NOTE: Hand-tighten only (decorative ring) Step 4: Install Faucet Insert faucet body (1) into the hole on the countertop. Attach rubber washer (6A), metal washer (6B), mounting blue Line nut (6C), and mounting screws...
- Page 10 Step 5: Secure Mounting Hardware Adjust direction of faucet body (5). Tighten mounting nut (6C) blue Li until snug. Tighten mounting screws (6D) to nut with a Phillips head screwdriver until Cold red Line snug Step 6: Connect Waterlines to Main Valve blue Line Connect hot and cold waterlines (7) to the angle stops.
- Page 11 Step 7: Flush Faucet Turn water on for a minute to Open ensure proper water flow Cold...
- Page 12 Replacement Parts 1. (A) Decorative Ring (B) O-ring 2. Glass Disc 3. Lever 4. Seal for Glass Disc 5. Locking Nut 6. Cartridge 7. Flow Restrictor 8. Hot & Cold Waterlines 9. Mounting Hardware (A) Rubber Washer (B) Metal Washer (C) Mounting Nut (D) Mounting Screws 10.
-
Page 13: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut has come Unscrew the decorative... - Page 14 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
-
Page 15: Care And Maintenance
Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Unscrew the aerator and clean when necessary *This installation manual is subject to change without further notice. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance... - Page 16 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
