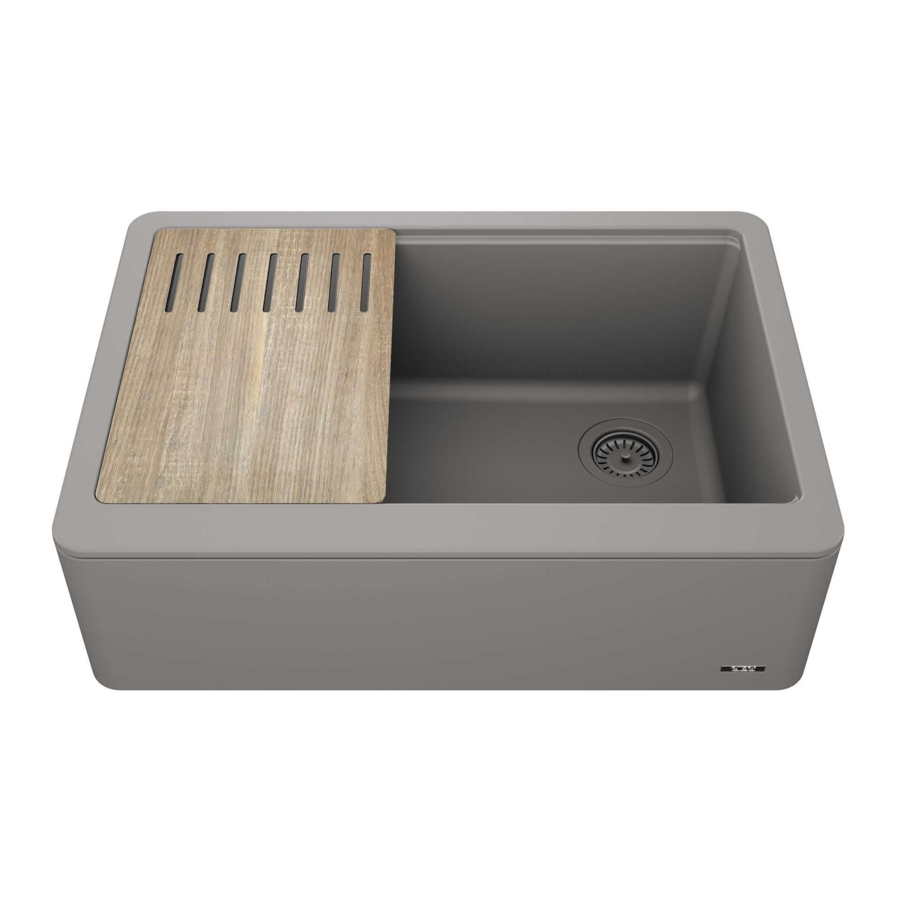

- Page 1 INSTALLATION GUIDE Bellucci™ Quartz Granite Composite Farmhouse Sink KGF1-30 / KGF1-33 KGF2-30 / KGF2-33 KGF11-30 / KGF11-33 KGF12-30 / KGF12-33 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. October 26, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Tools You Will Need
Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Parts List
Parts List Kitchen Sink · · Cutting Board Mounting Clips · Dimensions R1 1/8" R1 1/8" 30mm 30mm 23 1/2" 26 5/8" 597mm 675mm 2 3/8" 2 3/8" R5/8" R5/8" 61mm 61mm R5/8" R5/8" 15mm 15mm 30" 27" 686mm 762mm 15mm 15mm 29 3/4"... - Page 5 Dimensions R1 1/8" R1 1/8" 30mm 30mm 26 5/8" 23 1/2" 675mm 597mm 2 3/8" 2 3/8" R5/8" R5/8" 61mm R5/8" 61mm R5/8" 15mm 15mm 30" 762mm 27" 686mm 15mm 15mm 29 3/4" 755mm 32 7/8" 835mm KGF11-30 KGF11-33 29 3/4" x 20 3/4" x 9 3/8” 32 7/8"...
- Page 6 1/8" countertop reveal. It is further recommended that the installer(s) discuss this with the customer and agree that this finished appearance is the desired effect. Kraus is not responsible for improper sink or countertop installations. KRAUS Recommended Installation Type 1/8"...
- Page 7 3. Cut Cabinet Front · Measure height of apron front. Add 1/16" to the dimension when you mark base cabinet front cutout. Use jigsaw to cut. 4. Set up Mounting Baskets • Turn countertop over and align sink with countertop. Decide location for mounting brackets around the frame at a distance of about 1/4"...
- Page 8 5. Drill Hole in Countertop • Use 15/64" drill bit to drill the fixation holes at a depth of 3/8” in the indicated location. 15/64 po Diameter Depth Stop Underneath the Counter 3/8"...
- Page 9 6. Install Anchors · Add adhesive (optional) in the holes and then insert anchors into drilled holes and lightly tap with a hammer until flush.
- Page 10 7. Secure Sink to Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.
-
Page 11: Attach Mounting Hardware
8. Attach Mounting Hardware · Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. Allow sealant to set for 30 - 60 minutes. · NOTE: Use rubbing alcohol to remove any excess sealant. SEALANT BRASS INSERT SUPPORT METAL SCREW... - Page 12 9. Installing Plumbing Fixtures Connect drain, trap to drain and water supply connections to the faucet · according to manufacturer's instruction. Run water into sink and check for leaks. · · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
- Page 13 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 14 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
