Sim-Lab P1-X Instruction Manual page 2

BEFORE YOU START:
Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on
assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before
starting (pages 26/27) and make sure all the parts are delivered.
Note:
Depending on your date of purchase, you may or may not have received a large bag of additional washers. If this
is the case, use one on every M8 bolt to install brackets. This was a temporary solution and will be phased out as
soon as possible and therefore is omitted from this instruction manual.

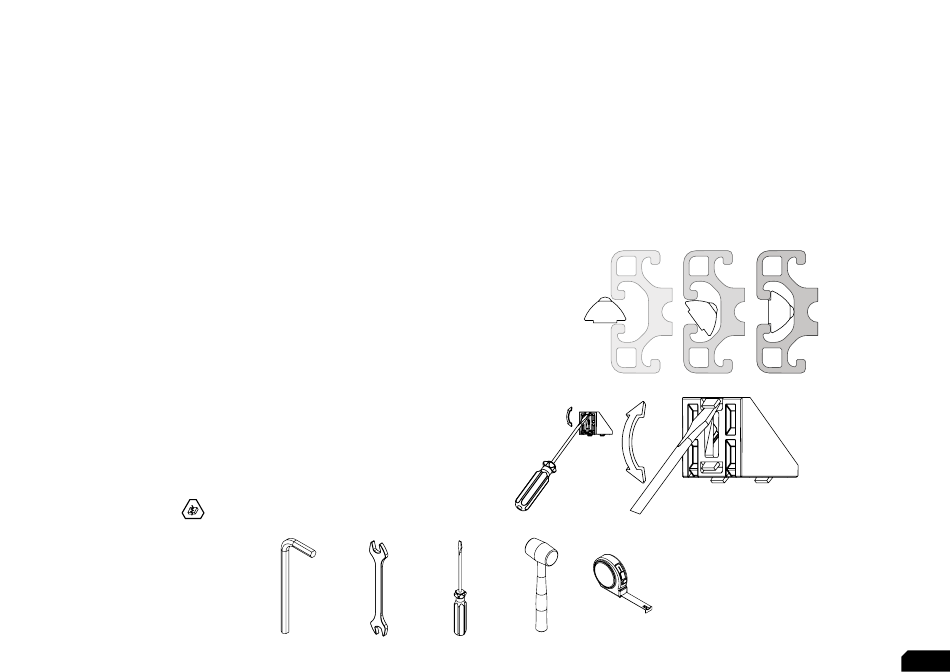

Inserting Slot-Nuts:
You got excited, finished the build, put the caps on, but forgot to install
one element. Do not worry. It happens to everyone. In this diagram, you
can see how to insert a Slot-Nut directly into the slot from the side.
You can also use one of your smaller Hex wrenches to help wiggle
the Slot-Nut in place.
Breaking tabs:
Sometimes tabs from corner brackets need to be broken off in
order to fit as instructed. Place a flathead screwdriver behind
the tab and tilt upwards.
Always make sure to point away from you while doing so.
To know when to do this, we will show the following
symbol next to the brackets.
Tools needed:
-
4/5/6MM 13/24MM
