Sim-Lab PUSH/PULL SHIFTER Instruction Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

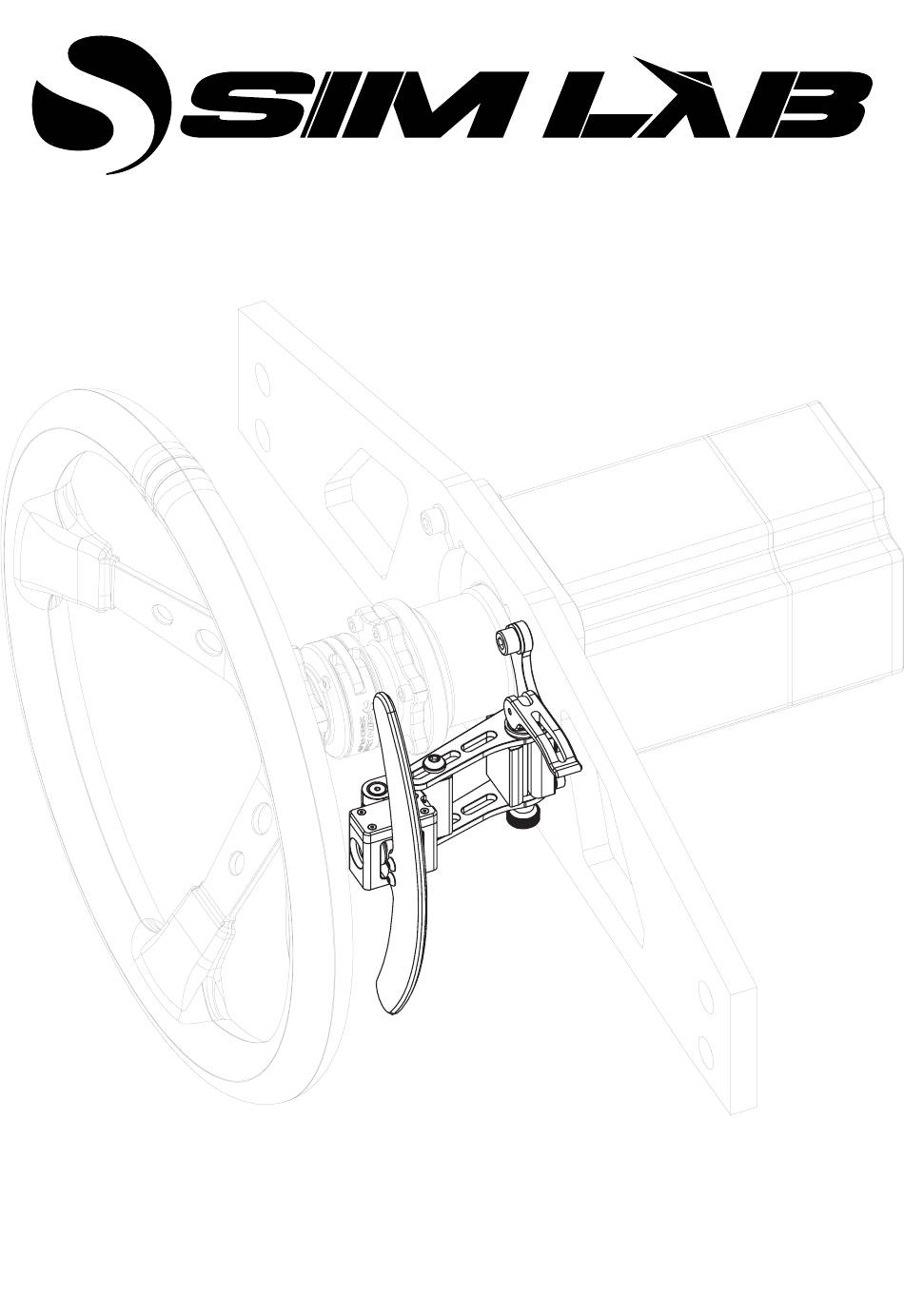

INSTRUCTION MANUAL
PUSH/PULL SHIFTER
VERSION 1.0
Last updated:07-04-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUSH/PULL SHIFTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sim-Lab PUSH/PULL SHIFTER

Summary of Contents for Sim-Lab PUSH/PULL SHIFTER

  • Page 1 INSTRUCTION MANUAL PUSH/PULL SHIFTER VERSION 1.0 Last updated:07-04-2023...

  • Page 2: Before You Start

    Thanks to the quick disconnect lever it is easy to make adjustments. The quick disconnect lever allows for a very rigid solution while really locking down your preferred configuration. PUSH/PULL SHIFTER Features: Rally style shifting Support for different hardware...
  • Page 3 Preparation Depending on your hardware; Fanatec (A3) or Simucube/ALPHA/MIGE (A4), a different mounting plate must be fitted. Mounting such a plate is very straightforward and uses four countersunk bolts.

  • Page 4: Installation

    Installation The installation of the Push/Pull Shifter (PPS) is fairly straight forward. Loosen existing bolts on your motor and mount, use these to attach the adapter plate to your front mount. For Fanatec users, appropriate bolts (A9) are supplied.
  • Page 5 Configuration Depending on your setup, there might some configuration needed to make the PPS fit your setup. We included 3 different ams to be able to adjust the positioning of the paddle in relation to your wheel. If arms (F) fitted out of the box need to be swapped, first rotate the lever (L) upwards and loosen the nut (N).
  • Page 6 There are different means of adjustment possible, depending on the part. Most adjustments can be made loosening the bolts which hold the arms and rotating the locking lever upwards. Be sure to tighten bolts securely and double check after the first use if they are still tight. Here is how we achieved our setup to work with a deep dish wheel.

  • Page 7: Initial Calibration

    Initial calibration Press and hold the calibration button (C) until its LED starts blinking. Now the unit is in calibration mode. Shift up (pull) and down (push) a couple of times. When you are done, press the calibration button (C) one last time. Now the device has been calibrated and ready for use.

  • Page 8: Bill Of Materials

    Bill of materials IN THE BOX Part QTY Note Push/Pull Shifter USB-micro cable Fanatec mount Simucube/Alpha/MIGE mount Mount Arm M75-125 Mount Arm M185-1225 Bolt M8 X 35 DIN 912 Bolt M4 X 10 DIN 7991 Bolt M6 X 12 DIN 7380 Use to mount unit to Fanatec.
