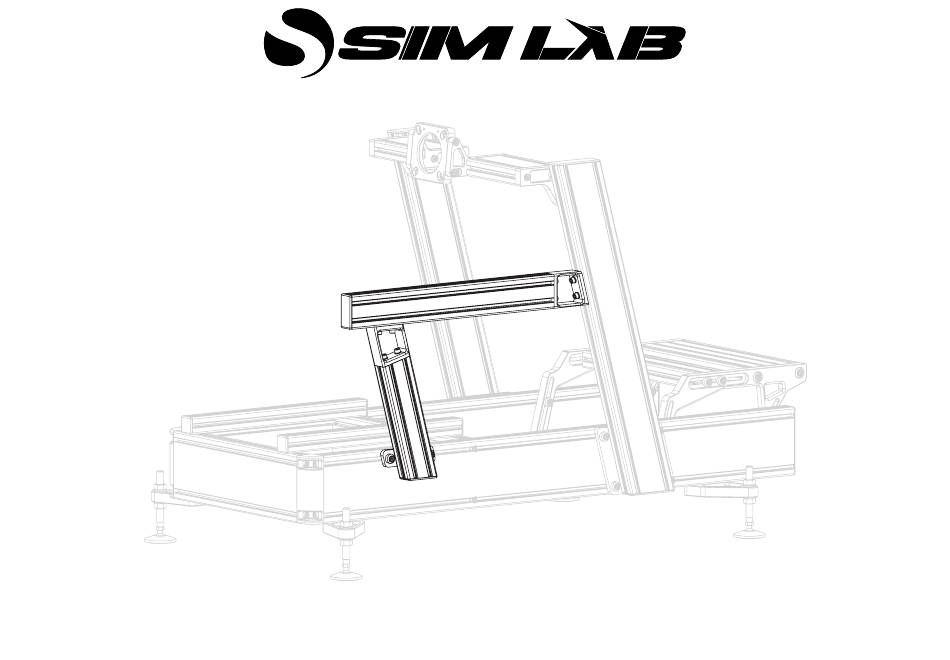

- Page 1 INSTRUCTION MANUAL EXTRA MOUNTING POINT VERSION 1.0 Last updated: 15-08-2024...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 7) and make sure all the parts are delivered. - Page 3 650MM Side Mount Washer M8 Profile 80X40 M8 X 25 Slot-Nut M8 End-Cap Bracket...
- Page 4 320MM Side Mount Side Mount Washer M8 Profile 80X40 M8 X 25 M8 X 20 Slot-Nut M8 End-Cap Angled Bracket Sandwich Plate...
- Page 5 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 (DIN 988)
- Page 6 M8 X 25 Washer M8...
-
Page 7: Hardware Kit
BOX A - EXTRA MOUNTING POINT PROFILE KIT Part QTY Note 80X40 Length=650mm 80X40 Length=320mm HARDWARE KIT Profile 80x40 end-cap angled Profile 80x40 end-cap Side mount sandwich plate Side mount bracket Bolt M8 X 25 DIN 912 Bolt M8 X 20 DIN 7991 Countersunk. - Page 8 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
