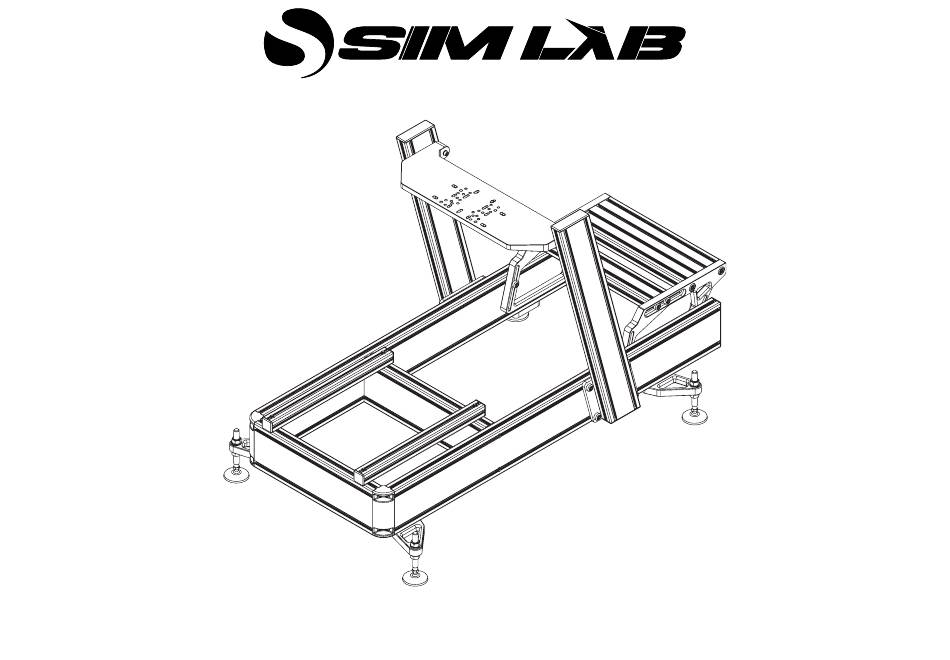

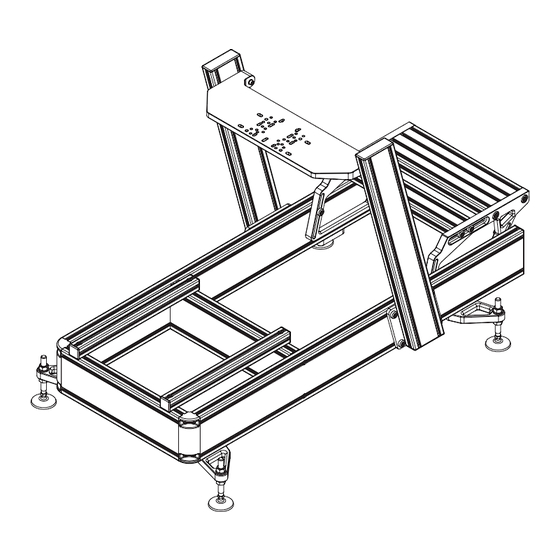

- Page 1 INSTRUCTION MANUAL P1-X PRO COCKPIT VERSION 1.0 Last updated: 29-09-2023...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (pages 23/24) and make sure all the parts are delivered. - Page 3 1350MM 500MM Washer M8 M8 X 40 (DIN 988) Note: the counterbores should point (arrows) to the outside of the cockpit. 3 26...
- Page 4 490MM Corner M8 X 20 Bracket 4 26...
- Page 5 Slot-Nut M8 Profile 160x40 M8 X 20 End-Cap 5 26...
- Page 6 Nut M16 Washer M16 Nut M16 Washer M16 Foot Foot Foot Foot BUILD Support Plate Support Plate BOTH VERSIONS 6 26...
- Page 7 M8 X 25 7 26...
- Page 8 500MM Washer M8 Slot-Nut M8 Profile 40X40 M8 X 40 End-Cap (DIN 988) 8 26...
- Page 9 470MM 470MM Pedal Bracket Cap-Washer M8 X 30 Washer M8 (DIN 988) 9 26...
- Page 10 Cap-Washer Washer M8 Slot-Nut M8 M8 X 40 (DIN 988) 10 26...
- Page 11 850MM Upright Profile 120X40 M8 X 20 Slot-Nut M8 End-Cap Angled Sandwich LEFT BUILD 2X Part A14 is is angled, therefore only fits on the LEFT side of the cockpit. For the RIGHT side of the upright assembly, see the next page. 11 26...
- Page 12 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 (DIN 988) 12 26...
- Page 13 Wheel Deck Washer M8 M8 X 50 M8 X 20 Slot-Nut M8 If you purchased the ‘Front Mount’, (D2) (D3) please see the next page. Normal assembly resumes with the ‘Side Mount’ on page 19. 13 26...
- Page 14 Front Mount Front Mount Front Mount M8 X 25 If you purchased the ‘Fanatec DD Bracket A Bracket B Spacer Mount’, please see page 16. Normal assembly continues on the next page. 14 26...
- Page 15 Front Mount Front Mount M8 X 25 Continue on page 18. Spacer 15 26...
- Page 16 Front Mount Front Mount Front Mount M8 X 25 *Fanatec DD1/DD2 does Spacer* Bracket A Bracket B Spacer NOT need the CSL Spacer. 16 26...
- Page 17 Front Mount M6 X 20 Continue on page 18. Spacer 17 26...
- Page 18 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 Part numbers for (DIN 988) Fanatec DD Mount differ. 18 26...
- Page 19 500MM Side Mount Washer M8 Profile 80X40 M8 X 25 Slot-Nut M8 End-Cap Bracket 19 26...
- Page 20 300MM Side Mount Side Mount Washer M8 Profile 80X40 M8 X 25 M8 X 20 Slot-Nut M8 End-Cap Angled Bracket Sandwich Plate (A21) 20 26...
- Page 21 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 (DIN 988) 21 26...
- Page 22 M8 X 25 Washer M8 22 26...
-
Page 23: Hardware Kit
BOX A - P1-X Pro BOX B - Sim Feet PROFILE KIT HARDWARE KIT Part QTY Note Part QTY Note 160X40 UL Length=1350mm Machined. Foot support plate 160X40 UL Length=500mm Crossbeam. Foot Threaded ball-joint rod fitted. 160X40 UL Length=490mm Rear. Bolt M8 X 25 DIN 912 120X40 Length=850mm Washer M16 DIN 125-A... - Page 24 BOX D - Wheel Deck BOX F - Fanatec DD Mount (optional purchase) (optional purchase) HARDWARE KIT PROFILE KIT Part QTY Note Part QTY Note Wheel deck 120X40 UL Length=176mm HARDWARE KIT Bolt M8 X 50 DIN 912 Bolt M8 X 20 DIN 912 Front mount bracket A Washer M8 DIN 125-A Front mount bracket B...
- Page 25 WHEEL DECK COMPATIBILITY Accuforce 1/2 Asetek Forte/Prima Fanatec HRS/Sim-Lab Servo Mount Logitech MOZA Simagic Thrustmaster Thrustmaster T818 25 26...
- Page 26 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
