Sim-Lab P1-X Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
P1-X
VERSION 2.0
Last updated: 17-12-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the P1-X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sim-Lab P1-X

Summary of Contents for Sim-Lab P1-X

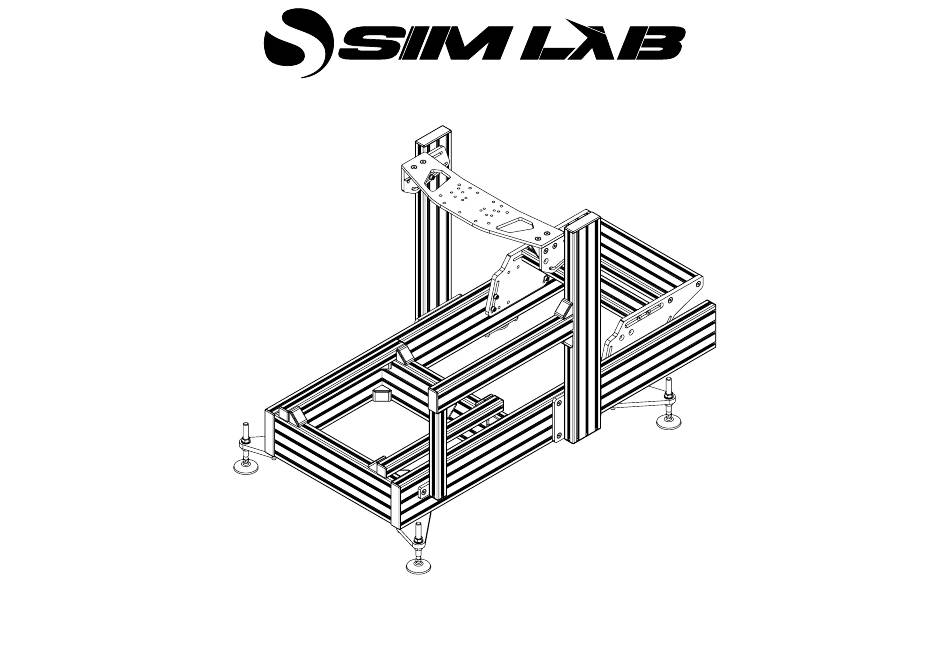

  • Page 1 INSTRUCTION MANUAL P1-X VERSION 2.0 Last updated: 17-12-2021...
