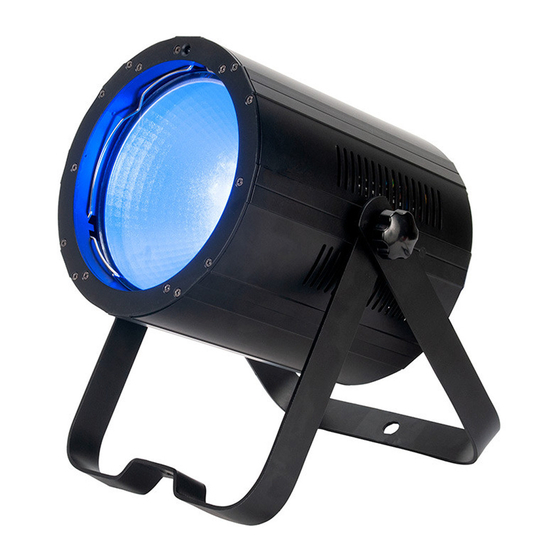

ADJ COB CANNON WASH ST User Manual

Hide thumbs Also See for COB CANNON WASH ST:
Table of Contents

Advertisement

Quick Links

COB CANNON WASH ST
COB CANNON WASH PEARL
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COB CANNON WASH ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ COB CANNON WASH ST

Summary of Contents for ADJ COB CANNON WASH ST

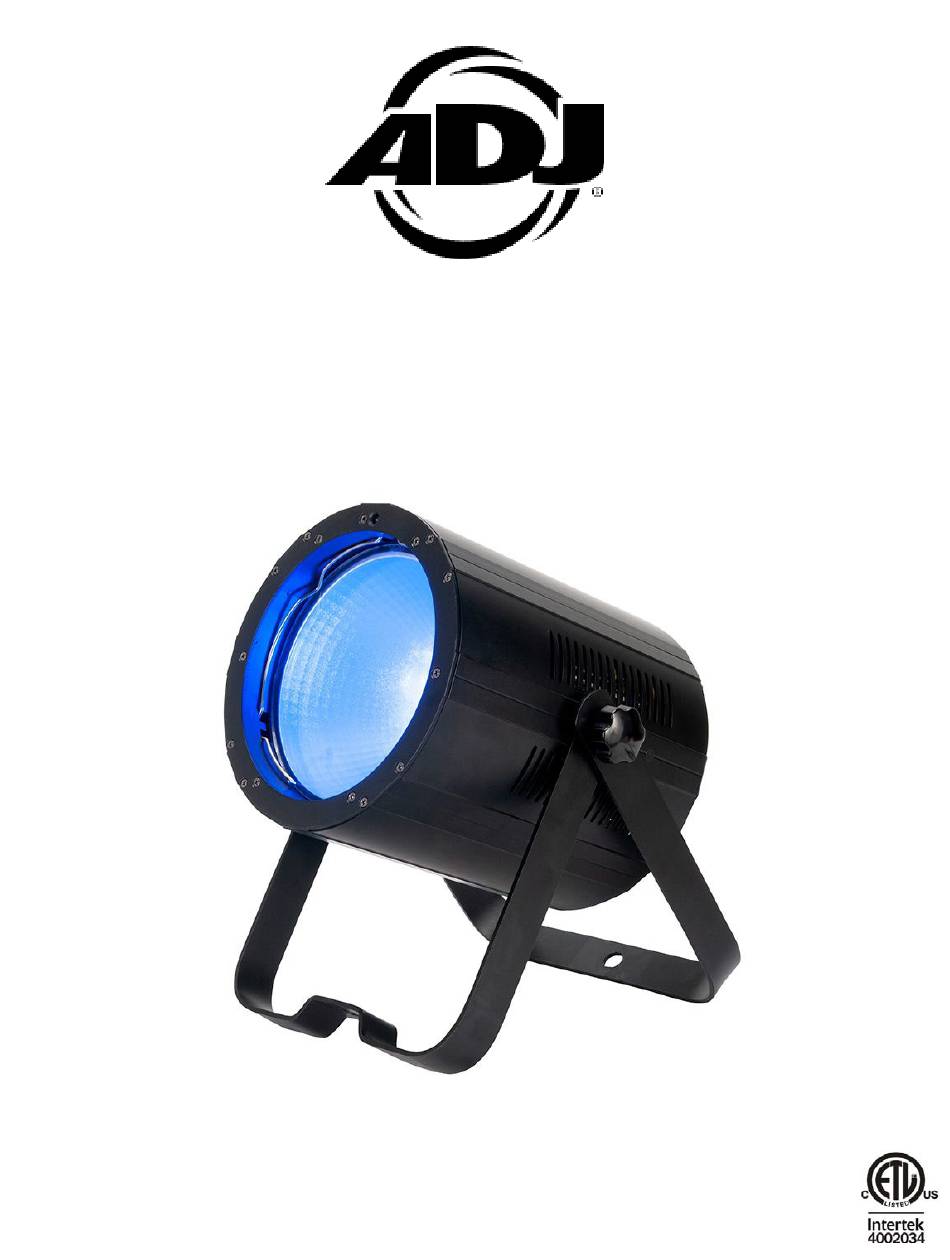

  • Page 1 COB CANNON WASH ST COB CANNON WASH PEARL User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FCC Statement General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview DMX Setup Installation Instructions System Menu UC IR/Airstream Control DMX Traits Dimmer Curve Chart Multi Unit Power Linking | Master-Slave Setup Cleaning and Maintenance | Trouble Shooting Tips Frequently Asked Questions | Optional Accessories Specifications Dimensional Drawings...

  • Page 4: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...

  • Page 5: General Information

    AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 | ventas@adj.com CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments, or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 800-322-6337 | Fax 323-832-2941 | support@adj.com...

  • Page 6: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 7: Safety Guidelines

    To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices, and only the original rigging parts included with these devices should be used for installation.
  • Page 8 SAFETY GUIDELINES • DO NOT position devices close to any FLAMMABLE MATERIALS during operation. • DO NOT attempt installation and/or operation of devices without knowledge how to do so. • DO NOT permit operation by persons who are not qualified to operate these types of devices. •...

  • Page 9: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside these devices. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 10: Overview

    OVERVIEW 1. Display: Show the various menus and the selected functions. 2. Button: MENU Scroll through available functions SET UP Select and configure function Go backward in selected function DOWN Go forward in selected function 3. Fuse: 3 Amps 4. DMX Input/Output: 3-pin In/Out Connection 5.

  • Page 11: Dmx Setup

    DMX chain. DATA CABLE (DMX CABLE) REQUIREMENTS (FOR DMX AND MASTER/SLAVE OPERATION): The COB Cannon Wash ST can be controlled via DMX-512 protocol. The COB Cannon Wash ST has eight DMX channel modes (3-channel, 4-channel, 6-channel, 7-channel, 8-channel, 8A-channel, 10-channel, or 11-channel mode).
  • Page 12 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connec- tor of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part num-...

  • Page 13: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION This unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support at least ten (10) times the weight of the unit plus any mounting acces- sories.
  • Page 14 INSTALLATION INSTRUCTIONS OPTIONAL LENS CHANGE The COB Cannon Wash ST comes with an 80-degree lens already attached. Included in the box are optional 40 & 50-degree lenses. To switch lenses, follow the steps below: 1. Remove the retainer ring located in front of the current lens.

  • Page 15: System Menu

    SYSTEM MENU MODES The COB Cannon Wash ST has 7 modes: DMX Mode, SEcd Mode, Manual Dimmer Color Mode, Sound Active Mode, Auto Run Program Mode and Static Color Select Mode. During operation, the display will lock after 30 seconds. To unlock the display, press and hold the MODE button for 3 seconds.
  • Page 16 SYSTEM MENU MODE SETUP UP/DOWN DESCRIPTION AFxx AF01 ~ AF16 Select from 16 built-in dreaming mode settings AJxx AJ01 ~ AJ16 Select from 16 built-in jumping mode settings AUTO Set unit to auto dreaming & jumping mode; unit will A-JF now run through dreaming mode and jumping mode in a continuous cycle Sp.xx...
  • Page 17 SYSTEM MENU DMX Mode: Operating through a DMX controller gives the user the freedom to create their own pro- grams tailored to their own individual needs. See the DMX Traits section of this manual for detailed information. Press the MODE button to select the DMX mode. DMX Addressing and Channel Mode: This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
  • Page 18 SYSTEM MENU Sound Active Mode: In this mode, the COB Cannon Wash ST will react to sound, and chase through the different colors. Press MODE button to select the Sound Active mode. Sound Active mode will be displayed as “SoXX” with “XX” representing Sound Active mode (1-8).

  • Page 19: Uc Ir/Airstream Control

    UC IR/AIRSTREAM CONTROL WIRELESS SETUP There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maxi- mize the chances of having a clear path for the wireless signal to reach the device: •...
  • Page 20 UC IR/AIRSTREAM CONTROL WIRELESS FUNCTIONS The UC IR (sold separately) infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away.

  • Page 21: Dmx Traits

    DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH Color Macros 001 - 004 Color Macro 01 005 - 008 Color Macro 02 009 - 012 Color Macro 03 013 - 016 Color Macro 04 017 - 020 Color Macro 05 021 - 024 Color Macro 06 025 - 028 Color Macro 07 029 - 032 Color Macro 08...
  • Page 22 DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH Color Macros (continued) 137 - 140 Color Macro 35 141 - 144 Color Macro 36 145 - 148 Color Macro 37 149 - 152 Color Macro 38 153 - 156 Color Macro 39 157 - 160 Color Macro 40 161 - 164 Color Macro 41...
  • Page 23 DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH 000 - 255 Blue Fine, 0% to 100% 000 - 255 Amber, 0% to 100% 000 - 255 Amber Fine, 0% to 100% Shutter/Strobe 000 - 031 LED Off 032 - 063 LED On 064 - 095 Strobe Effect, slow to fast 096 - 127 LED On...
  • Page 24 DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH Color Jump Mode (continued) 112 - 127 Color Jump 8 128 - 143 Color Jump 9 144 - 159 Color Jump 10 160 - 175 Color Jump 11 176 - 191 Color Jump 12 192 - 207 Color Jump 13 208 - 223 Color Jump 14...
  • Page 25 DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH Color Macro Mode (continued) 029 - 032 Color Macro 08 033 - 036 Color Macro 09 037 - 040 Color Macro 10 041 - 044 Color Macro 11 045 - 048 Color Macro 12 049 - 052 Color Macro 13 053 - 056 Color Macro 14...
  • Page 26 DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH Color Macro Mode (continued) 169 - 172 Color Macro 43 173 - 176 Color Macro 44 177 - 180 Color Macro 45 181 - 184 Color Macro 46 185 - 188 Color Macro 47 189 - 192 Color Macro 48 193 - 196 Color Macro 49...
  • Page 27 DMX TRAITS CHANNEL FUNCTION VALUES 3-CH 4-CH 6-CH 7-CH 8-CH 8A-CH 10-CH 11-CH Sound Mode (continued) 192 - 207 Sound Active 13 208 - 223 Sound Active 14 224 - 239 Sound Active 15 240 - 255 Sound Active 16 Color Jump/Dream Modes Speed 000 - 255 Speed, slow to fast Sound Mode Sensitivity...

  • Page 28: Dimmer Curve Chart

    DIMMER CURVE CHART...

  • Page 29: Multi Unit Power Linking | Master-Slave Setup

    MULTIPLE UNIT POWER LINKING With this feature you can connect the fixtures to one another using the power cable input and output sockets. A MAXIMUM OF THREE (3) UNITS CAN BE LINKED IN THIS WAY! AFTER THIS VALUE HAS BEEN REACHED, ADDITIONAL UNITS MUST BE CONNECTED TO A SEPARATE OUTLET. NOTE: USE CAUTION WHEN POWER LINKING FIXTURES OF OTHER MODEL TYPES, AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE! CHECK SILK SCREEN FOR MAX AMPS.

  • Page 30: Cleaning And Maintenance | Trouble Shooting Tips

    Check the fuse and see if it needs to be replaced. • If none of these solutions work, please contact ADJ Customer Service. Unit does not respond to DMX: Check that the DMX cables are connected and wired correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be ‘hot’).

  • Page 31: Frequently Asked Questions | Optional Accessories

    How many fixtures can be daisy chained together? Up to 3 COB Cannon Wash ST units can be daisy chained together. (After 3 fixtures you will need to use a new power outlet.) Use caution when power linking other model fixtures as the power con- sumption of other model fixtures may exceed the max power output on this fixture.

  • Page 32: Specifications

    SPECIFICATIONS Model COB Cannon Wash ST / Pearl 150W, 1.2A @ 120V/60Hz Power Draw 148W, 0.7A @ 220V/50Hz Light Source 150W RGBA 4-in-1 COB LED source Voltage 100V ~ 240V/50~60Hz 80 Degrees (Optional 40-degree and 50-degree Beam Angle lenses included)

  • Page 33: Dimensional Drawings

    DIMENSIONAL DRAWINGS...
