User Instructions
Rev. 4/14

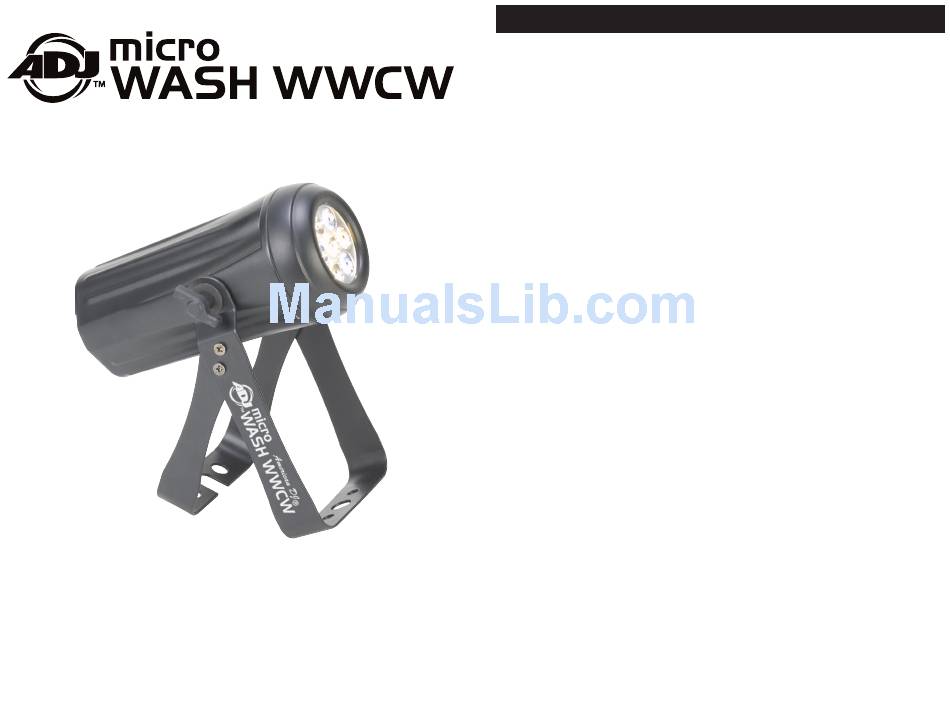

Micro Wash WWCW
Unpacking:
Thank you for purchasing the Micro Wash WWCW by
American DJ
. Every Micro Wash WWCW has been thoroughly tested
®
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your fix-
ture for any damage and be sure all accessories necessary to operate
the unit has arrived intact. In the case damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Do not return this unit to your dealer without first
contacting customer support.
Introduction:
The American DJ
tinuing pursuit to create high quality intelligent lighting. The Micro Wash
WWCW is a DMX intelligent, high powered cool white/warm white LED
par can. This fixture can be used in a stand alone mode or connected
in a Master/Slave configuration. This unit has five operating modes:
Sound Active mode, Macro mode, Auto mode, RGB mode, and DMX
control mode.
Customer Support:
American DJ provides a customer support line,
to provide set up help and to answer any question should you encoun-
ter problems during your set up or initial operation. You may also visit
us on the web at www.AmericanDJ.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacific Standard Time.
Voice:
(323) 582-3322
Fax:
(323) 582-3108
E-mail:
support@AmericanDJ.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
PLEASE recycle the shipping carton when ever possible.
American DJ
- www.Americandj.com - Micro Wash WWCW User Manual Page 2
©
®
Introduction
Micro Wash WWCW is part of a con-
®
Advertisement
Table of Contents
Related Manuals for ADJ micro wash wwcw
Summary of Contents for ADJ micro wash wwcw
- Page 1 User Instructions ranty. In the unlikely event your unit may require service please contact American DJ. PLEASE recycle the shipping carton when ever possible. Rev. 4/14 American DJ - www.Americandj.com - Micro Wash WWCW User Manual Page 2 © ®...
-
Page 2: General Instructions
• During long periods of non-use, disconnect the unit’s main power. The Micro Wash WWCW carries a two year limited warranty. Please fill • Always mount this unit in safe and stable matter. out the enclosed warranty card to validate your purchase. All returned •... -
Page 3: Power Supply
The Micro Wash WWCW can be controlled via DMX-512 protocol. The Figure 4 and PIN 3 (DMX +) of the last fixture. Micro Wash WWCW has 2 DMX channel modes; a 3 channel mode 5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX- and 5 channel mode. -
Page 4: Led Display On/Off
Sound Active Mode: To set the display press the MODE button until 0001 is displayed. The In this mode the Micro Wash WWCW will react to sound, and chase display will now stay on at all times. through the different color temperatures. - Page 5 Micro Wash WWCW 3 Channel - DMX Values & Functions Micro Wash WWCW Operating Instructions Channel Value Function DMX Mode: Operating through a DMX controller gives the user the freedom to cre- 0 - 255 COOL WHITE (CW) ate their own programs tailored to their own individual needs. This func- 0% - 100% tion also allows you to use your fixtures as spot lights.
-
Page 6: Troubleshooting
Micro Wash WWCW 5 Channel - DMX Values & Functions Micro Wash WWCW Trouble Shooting Listed below are a few common problems the user may encounter, hannel alue unCtion with solutions. COOL WHITE (CW) Unit not responding to DMX: 0 - 255... -
Page 7: Warranty
• American DJ L.E.D. Products = 2-year (730 day) Limited Warranty (excluding motors which have a 1-year (365 day Limited Warranty) American DJ - www.Americandj.com - Micro Wash WWCW User Manual Page 13 American DJ - www.Americandj.com - Micro Wash WWCW User Manual Page 14 ©... -
Page 8: Specifications
Web: www.americandj.com / E-mail: info@americandj.com American DJ Europe Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.americandj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 American DJ - www.Americandj.com - Micro Wash WWCW User Manual Page 15 © ®...
