Summary of Contents for ADJ COB CANNON WASH ST DW

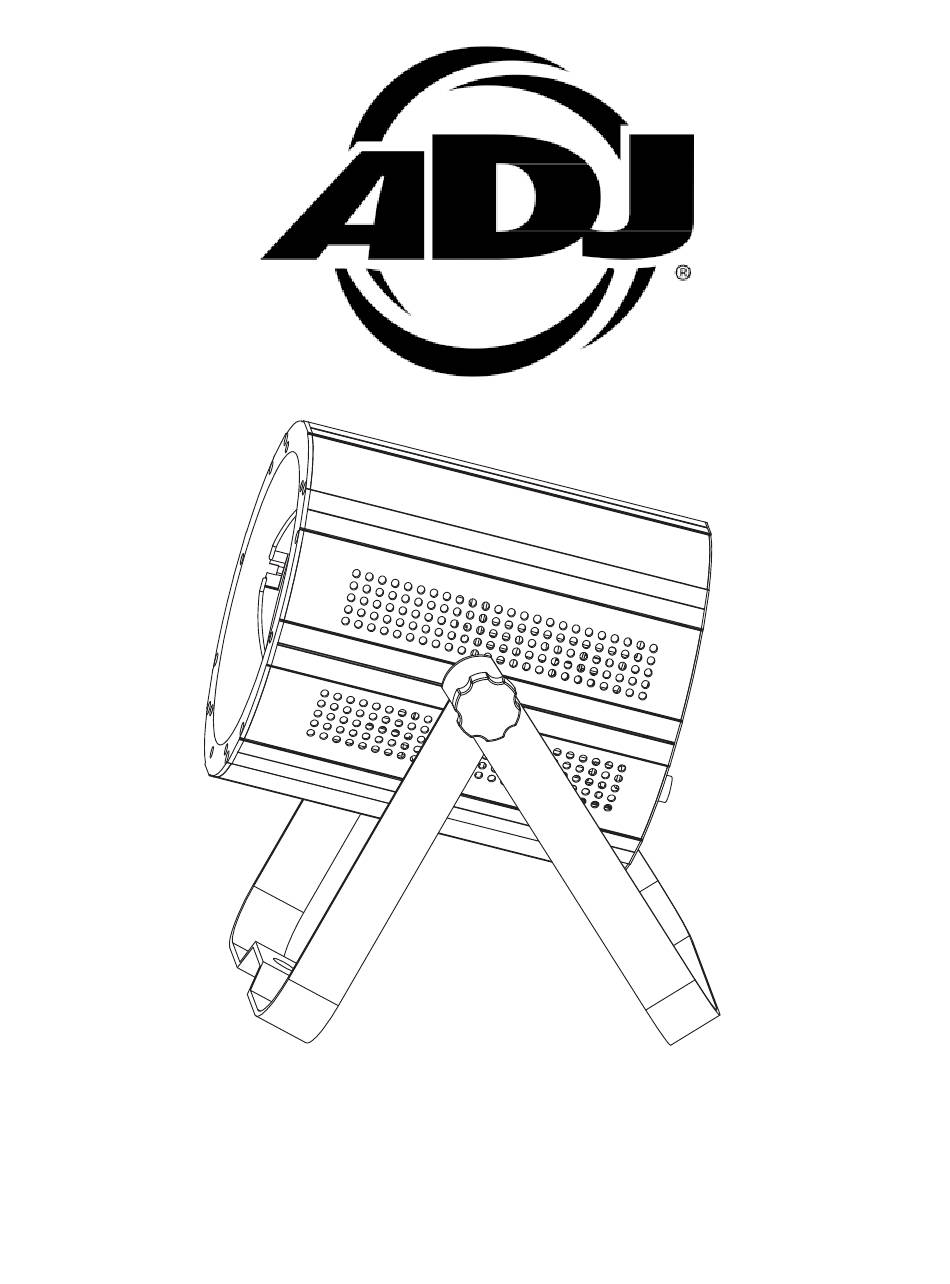

- Page 1 COB CANNON WASH ST DW user manual...
- Page 2 ADJ PRODUCTS LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
- Page 3 D O C U M E N T V E R S I O N An updated version of this document may be available online. Please check for the latest revision/update of this document before www.adj.com beginning installation and use. Date Document Version...
-
Page 4: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview DMX Setup Installation Instructions System Menu DMX Channels / Values / Functions Dimmer Curve Chart UC IR Control and Airstream Control Multiple Unit Power Linking Master / Slave Set up Optional Lens / Fuse Replacement... -
Page 5: General Information
G E N E R A L I N F O R M A T I O N INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate these products. These instructions contain important safety and use information. UNPACKING The products in this kit have been thoroughly tested and have been shipped in perfect operating condition. -
Page 6: Limited Warranty (Usa Only)
ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. -
Page 7: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 8 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S DO NOT position devices close to any FLAMMABLE MATERIALS while operating. DO NOT attempt installation and/or operation of devices without knowledge how to do so.
-
Page 9: Maintenance Guidelines
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside these devices, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. -
Page 10: Overview
O V E R V I E W 1 - Display: Show the various menus and the selected functions. 2 – Button: MENU T o select the programming functions SET UP T o go forward in the selected functions T o go backward in the selected functions DOWN T o go forward in the selected functions 3 –... -
Page 11: Dmx Setup
D M X S E T U P POWER SUPPLY The COB Cannon Wash ST DW contains an automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. - Page 12 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
-
Page 13: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S NSTALLATION This unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. -
Page 14: System Menu
S Y S T E M M E N U MODES The COB Cannon Wash ST DW has 5 modes: DMX Mode, Manual Dimmer Color Mode, Sound Active Mode, Auto Run Program Mode and Static Color Select Mode. During operation, the display will lock after 30 seconds. To unlock the display, press and hold down the MODE button for 3 seconds to unlock. - Page 15 MODE SET UP UP/DOWN Instruction manual manual manual So01 ~ So08 Mode select Select the 8 built-in sound modes SOUND MODE Adjust the sensitivity of the sound-active, SJ-‐ 1 is Sensitivity SJ-‐ 0 ~ SJ-‐8 select the lowest level, SJ-‐ 8 is the highest level Dreaming mode AF01 ~ AF08 ...
- Page 16 DMX Mode: Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. See page 19 for each mode’s DMX traits. Press the MODE button to select the DMX mode. DMX Addressing and Channel Mode: This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
- Page 17 “FS.00” (flash off), “FS.01” (slowest flash) and “FS.15” (fastest flash). Sound Active Mode: In this mode the COB Cannon Wash ST DW will react to sound, and Press MODE button to select the Sound Active mode chase through the different colors.
- Page 18 Other Program Select Mode: There are 4 “Other” setup features to adjust. LED Display On/Off, IR Remote On/Off, Display Inversion and Initialization. Press the MODE button until “doXX”, “rFXX”, “Stnd” or “dEFA” is displayed. • LED Display On/Off = “doXX”. Set the LED display to turn off after 60 seconds by pressing UP or DOWN button to display “doff”.
-
Page 19: Dmx Channels / Values / Functions
D M X C H A N N E L S / V A L U E S / F U N C T I O N S MODE / CHANNEL Value Function Ch01 Ch02 Ch04 Ch4A Ch05 Ch06 Ch07 COOL WHITE 0-255 0% - 100%... -
Page 20: Dimmer Curve Chart
Dimmer Curve Chart... -
Page 21: Uc Ir Control And Airstream Control
R E M O T E O P E R A T I N G I N S T R U C T I O N S Airstream IR (sold separately): The remote transmitter plugs into the headphone jack of your iOS phone or tablet. -
Page 22: Multiple Unit Power Linking
“Master” unit. Optional Lens Change COB Cannon Wash ST DW comes with an 80-degree lens already attached. Included in the box are optional 40 & 50-degree lenses. T o switch lenses simply remove the retainer ring located in front of the current lens. -
Page 23: Trouble Shooting Tips And Faq
Yes, barn doors (BAR001) are an optional accessory and can be purchased separately. 2. Is the COB Cannon Wash ST DW flicker free? Yes, the COB Cannon Wash ST DW features Flicker Free operation. At 1,000Hz, there should be no flickering on camera. -
Page 24: Technical Specifications And Optional Accessories
T E C H N I C A L S P E C I F I C A T I O N S COB Cannon Wash ST DW Wattage: Light Source: 1x 150-Watt COB Warm White/Cool White LED Voltage: AC100V-240V/50Hz-60Hz Beam Angle: 80 Degrees (Optional 40°... -
Page 25: Dimensions
D I M E N S I O N S Ø 7.5” 190 mm 8.5” 218.5 mm Ø 7.5” 190 mm 10” 256 mm 13” 330 mm...
