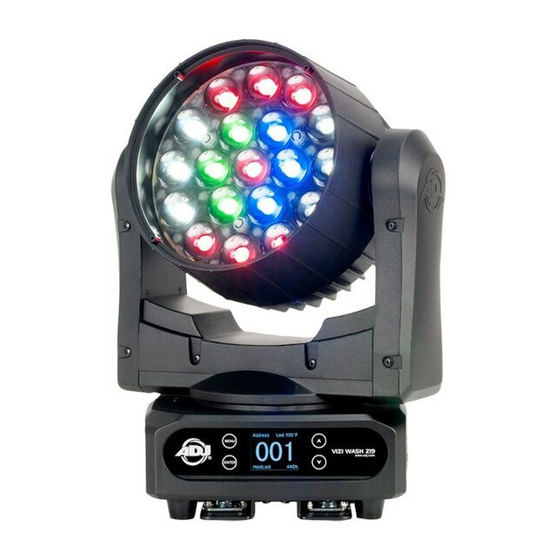

ADJ VIZI WASH Z19
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIZI WASH Z19 and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ VIZI WASH Z19

Summary of Contents for ADJ VIZI WASH Z19

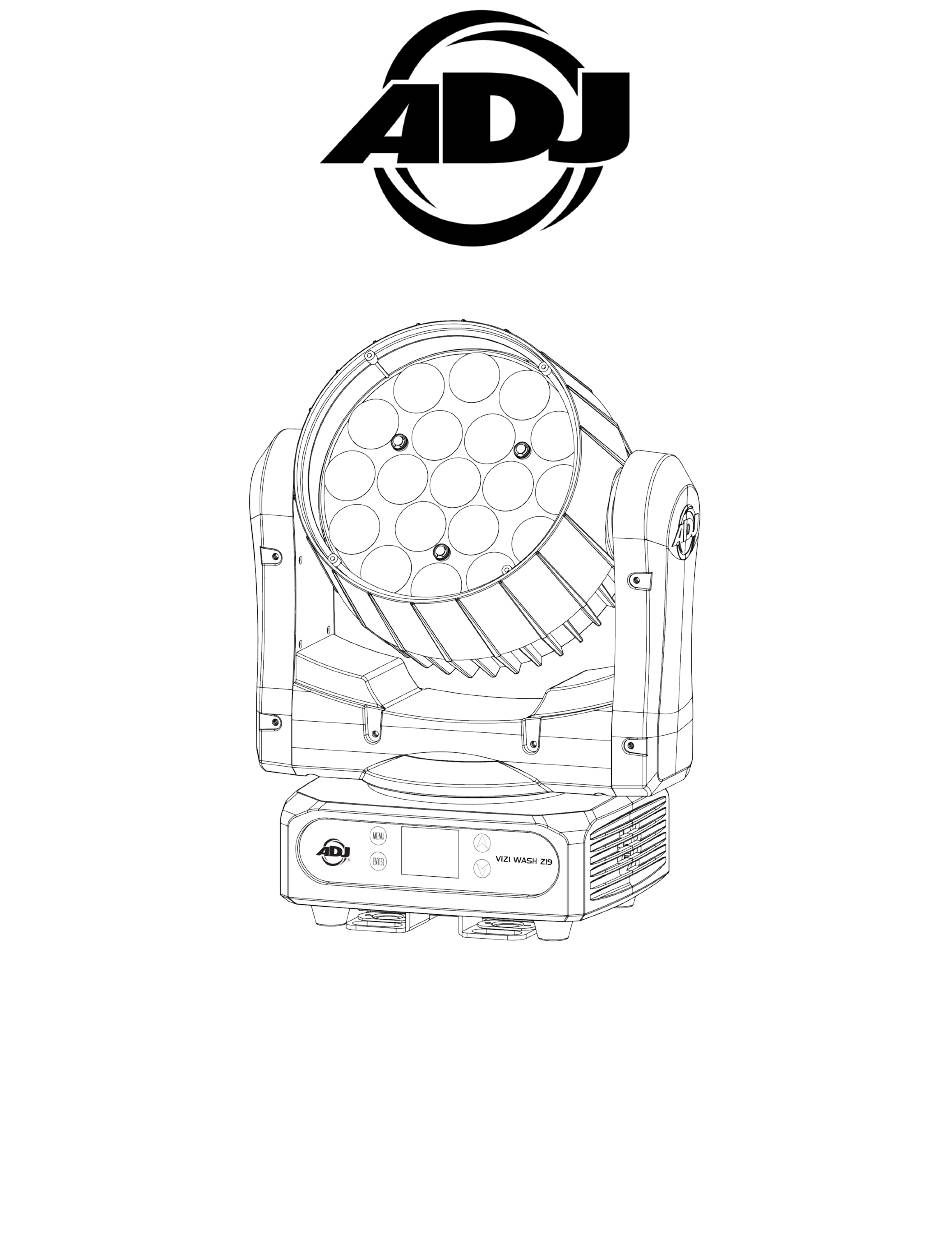

  • Page 1 ADJ VIZI WASH Z19 User Manual...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Color Macro Chart Installation Guidelines DMX Set Up DMX Addressing System Menu Pixel Zone Layout Target Modes Dimmer Mode Graphs DMX Traits: Channel Functions &...
  • Page 4 BOX CONTENTS Omega Brackets 1.83M locking power cable CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com...

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15-minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
  • Page 8 LEDs. This issue is not specific to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the following guidelines can prevent any potential damage from occurring if followed.

  • Page 9: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 10: Fixture Overview

    F I X T U R E O V E R V I E W...

  • Page 11: Color Macro Chart

    C O L O R M A C R O C H A R T RGBW COLOR INTENSITY RGBW COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE RED GREEN BLUE WHITE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140...

  • Page 12: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 0.7 feet (0.2m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 13 I N S TA L L AT I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 14 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 15: Dmx Set Up

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 16: Dmx Addressing

    In the case of the Vizi Wash Z19, when in 13 Channel you should set the starting DMX address of the first unit to 1, the second unit to 14 (13 + 1), the third unit to 27 (14 + 13), and so on. (See the charts below for more details.)

  • Page 17: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below) During normal operation, pressing the MENU button once will access the fixture’s main menu. Once in the main menu, you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons.
  • Page 18 S Y S T E M M E N U ADJ VIZI WASH Z19 - SYSTEM MENU Default setting shown in bold MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Shall be used to set the units starting DMX address channel.
  • Page 19 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Pan 128-127 Tilt 128-127 Zoom 0-255 Red 125-255 Green 125-255 Blue 125-255 White 125-255 Red1 125-255 Calibration Green1 125-255 Blue1 125-255 Personality Service White1 125-255...
  • Page 20 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Shall run the set program based on this speed setting, 000 being slowest and 255 being the fastest... unless the Sound Speed 000-255 function is set to ON, which takes priority.
  • Page 21 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Total hrs. fixture powered ON. Cannot be Power On Time xxxxxx Hours reset. Fixture Life Time P-On Time-R xxxxxx Hours Hours fixture powered ON.
  • Page 22 S Y S T E M M E N U DMX Settings Select DMX Settings, and press ENTER button to confirm. Use UP/DOWN buttons to select DMX Address, DMX Channel Mode, or No DMX Status. • DMX Address — DMX512 address setting Select DMX Address, and press ENTER button to confirm.
  • Page 23 S Y S T E M M E N U Personality Select Personality, and press ENTER button to confirm, use UP/DOWN buttons to select Status Settings, Fan Settings, Dim Modes, Dim Curves, Reset Motors, Display, or Service. Status Settings Select Status Settings, and press ENTER button to confirm. Use UP/DOWN buttons to select Pan Invert, Tilt Invert, P./T.
  • Page 24 S Y S T E M M E N U Manual Control Select Manual Control, and press ENTER button to confirm. Current channel will show on the display. Use UP/DOWN button to select Pan, Tilt, Red1-7, Blue1-7, Green1-7, White1-7, Color, Shutter, Dimmer, Zoom, or Special Function, press ENTER button to confirm, then Use UP/DOWN button to adjust value 000 to 255, press ENTER button to store, and the fixture will run as the channel value indicates.
  • Page 25 P I X E L Z O N E L AY O U T Pixel Zone Layout 28 Ch. Mode (29 Ch. Mode w/ Software Version ≥ 1.6) Pixel Zone Layout 44 Ch. Mode (45 Ch. Mode w/ Software Version ≥ 1.6)
  • Page 26 TA R G E T M O D E S...
  • Page 27 D I M M E R M O D E G R A P H S...
  • Page 28 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S Features subject to change without notice. MODE/CHANNEL VALUE FUNCTION 13CH 14CH 17CH 18CH 29CH 30CH CH45 46CH PAN Movement 8bit: 540 Degrees...
  • Page 29 Features subject to change without notice. MODE/CHANNEL VALUE FUNCTION 13CH 14CH 17CH 18CH 29CH 30CH CH45 46CH Chase Patterns: 001-014 015-030 Chase 1 031-046 Chase 2 047-062 Chase 3 063-078 Chase 4 079-094 Chase 5 095-110 Chase 6 111-126 Chase 7 127-142 Chase 8 143-158...
  • Page 30 Features subject to change without notice. MODE/CHANNEL VALUE FUNCTION 13CH 14CH 17CH 18CH 29CH 30CH CH45 46CH 000-255 Dimmer: 0%~100% 000-255 Dimmer Intensity: Intensity 0 to 100% 000-255 Dimmer Fine: Dimmer Intensity fine 000-255 Zoom: Zoom adjustment from wide to narrow Zoom Fine: Zoom adjustment Fine 000-255 Dim Modes:...
  • Page 31 E R R O R C O D E S Error Codes subject to change without notice ERROR CODE DESCRIPTION CPU-B Error CPU-B Error CPU-C Error CPU-C Error Pan Reset Error Pan: Reset Error Pan Encoder Error Pan: Reset Error Tilt Reset Error Tilt: Reset Error Tilt Endcoder Error...
  • Page 32 S P E C I F I C AT I O N S Optical: • 19x Osram 20W RGBW (4-IN-1) LEDs • 20,000 Hour Average LED Life • LUX @ 5M: 9960 lux @ 10-degrees; 694 lux @ 60-degrees Effects: •...
  • Page 33 D I M E N S I O N S *DRAWINGS NOT TO SCALE. DIMENSIONS FOR INFORMATION ONLY AND SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 34 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
