Summary of Contents for Sime SOLIDA 5 PL

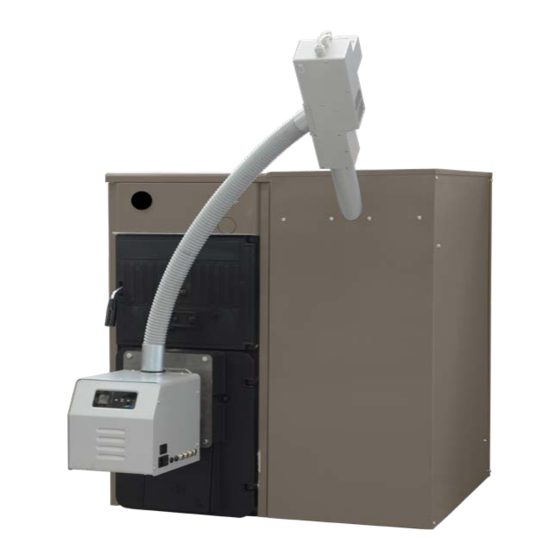

- Page 1 SOLIDA 8 PL+ SOLIDA 5 PL cod. 8058541 Kit pellet Sime 5 PL cod. 8075980 (optional) SOLIDA 8 PL + cod. 8075743 Kit pellet Sime 8 PL + cod. 8075981 (optional) Fonderie SIME SpA Cod. 6113735B - 05/2017...
-
Page 3: General Notes
Kit pellet Sime 5 PL code 8075980 (optional) SOLIDA 8 PL + code 8075743 Kit pellet Sime 8 PL + cod. 8075981 (optional) WARNINGS - In case of failure or malfunction of the equipment, contact authorised technical staff - Make sure that no external electrical cables can come into contact with hot parts of the water heater... - Page 4 To maximize use of the product, we rec- a) front .spacers n° .6 n° .10 ommend the use of pellets with a quality 1.1.1 OVERALL DIMENSIONS (with pellets kit code 8079580 for SOLIDA 5 PL /code 8075981 for SOLIDA 8 PL+) SOLIDA SOLIDA 5 PL 8 PL+ 1202 .mm...
-
Page 5: Installation
INSTALLATION MOUNTING ACCESSORIES SUPPLIED SEPARATELY A) . Place .the .cast .iron .1 deflector .with .the .rear .side .supports st . . Fig. 2 Rear .side .supports Fig. 3 .deflector .with .the .rear .side .supports B) . Place .the .cast .iron .2 deflector .with .the .front .side .supports nd . - Page 6 D) . Place .the .last .cast .iron .deflector Last .deflector Fig. 8 E) . Screw .the .brass .reduction .by .interposing .the .sealant .for .the .hydraulic .seal F) . Screw .the .safety .thermostat .to .the .reduction CAUTION: Screw the thermostat by hand or with a fork spanner: tightening torque of 1.5 Nm Fig.
- Page 7 G) . . . Assembly .pellets .tank .(200 .to .500 .dm ) .positioned .to .the .right .of .the .boiler, .resting .on .the .flank .and .aligned .at .the .same . 4 .x 2 .x Only .for .pellets Tiranti .solo .per contenitore tank .500 .dm 6 .x da .500 .dm...
- Page 8 Fig. 10 - Insertion .cochlea I) . . Mounting .the .burner .(B-Home Round 25 for SOLIDA 5 PL and B-Essential Round 50 for SOLIDA 8 PL+) . Position .the .seal .(4), .supplied .with .the .burner, .between .the .flange .(5) .and .the .door .(2) .of .the .boiler Push .in .the .4 .screws .(6) .(M8) .but .ONLY .tighten .the .two .screws .which .hold .the .lower .split-flange .
-
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS A) . Connect .the .cable .connector .coming .from .the .screw .feeder .motor .to .the .burner .(3 .fig . .11) B) . Connect .the .safety .thermostat .connector .(7 .fig . .12) .the .seven-pin .plug .(see .WIRING .DIAGRAM) Fig. 11 Screw .feeder .motor .cable Fig. -
Page 10: Wiring Diagram
WIRING DIAGRAM 230V/50Hz 24 Vdc – – – – VPC . Main .combustion .valve VCE . External .cochlea .fan RS . Resistance PM1 . External .cochlea .button TE . External .thermostat SA . Water .probe FR . Photoresistance M1 . External .cochlea M2 . -
Page 11: Hydraulic Diagram
.of .conformity .upon .completion .of .his .work . - . . SIME .cannot .be .held .liable .for .harm .to .people .or .animals .or .damage .to .property .attributable .to .an .incorrect .choice .of .components .or . improper .set-up .of .the .system . -
Page 12: Safety Thermostat
CLEANING (fig. 18) Cleaning .operations .must .be .carried .out . at . regular . intervals . and . only . when . the . boiler .is .cold . Combustion . residuals . collect . in . the . removable .drawer .that .must .be .emptied . before .starting .the .boiler . - Page 14 Fonderie Sime S.p.A - Via Garbo, 27 - 37045 Legnago (Vr) Tel. +39 0442 631111 - Fax +39 0442 631292 - www.sime.it...
