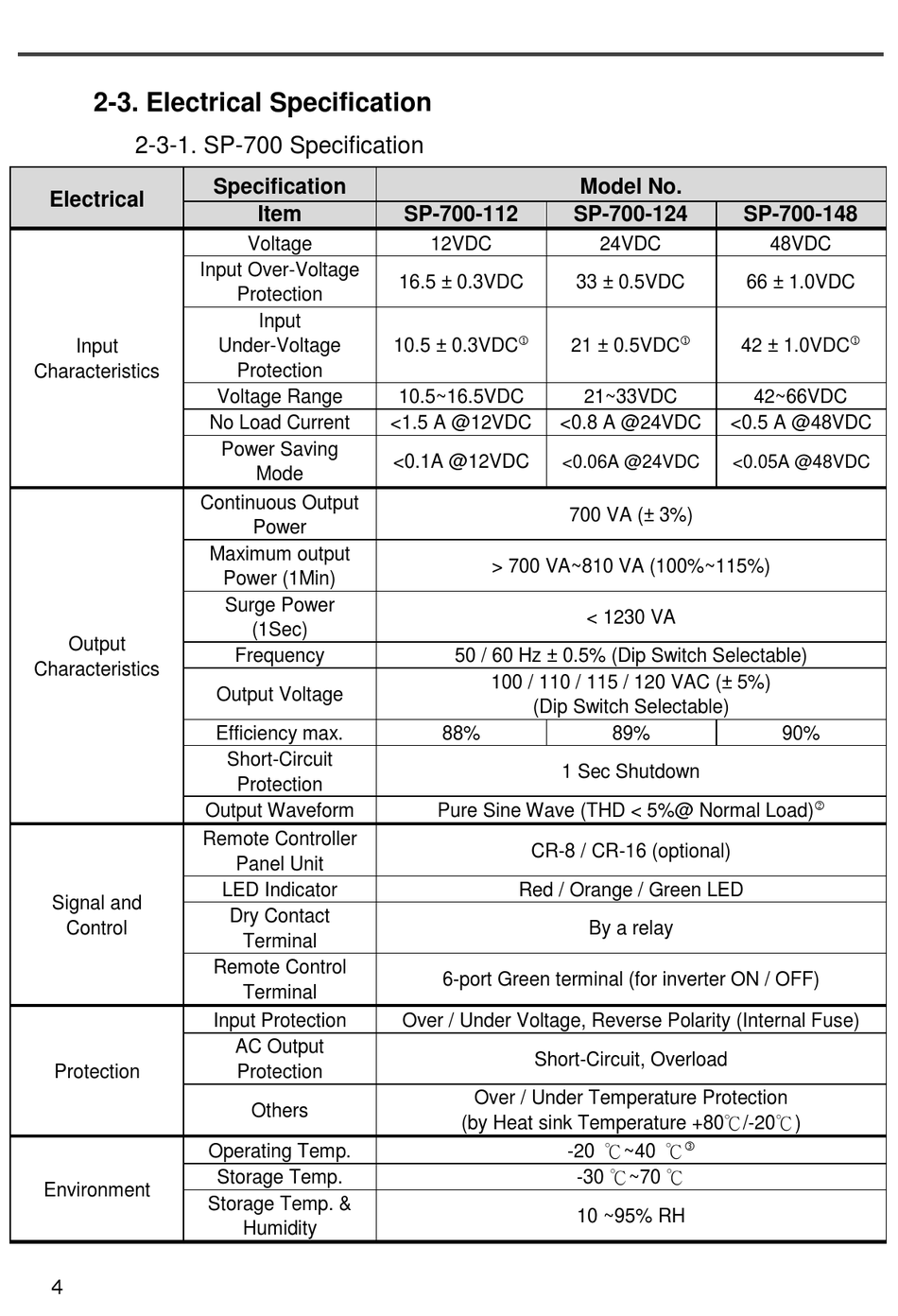

2-3. Electrical Specification

2-3-1. SP-700 Specification

Electrical
Input Over-Voltage
Input
Characteristics
Continuous Output
Output
Characteristics
Remote Controller
Signal and
Control
Protection
Environment
4
Specification
Item
Voltage
Protection
Input
Under-Voltage
Protection
Voltage Range
No Load Current
Power Saving
Mode
Power
Maximum output
Power (1Min)
Surge Power
(1Sec)
Frequency
Output Voltage
Efficiency max.
Short-Circuit
Protection
Output Waveform
Panel Unit
LED Indicator
Dry Contact
Terminal
Remote Control
Terminal
Input Protection
AC Output
Protection
Others
Operating Temp.
Storage Temp.
Storage Temp. &
Humidity
SP-700-112
12VDC
16.5 ± 0.3VDC

10.5 ± 0.3VDC
10.5~16.5VDC
<1.5 A @12VDC
<0.1A @12VDC
> 700 VA~810 VA (100%~115%)
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
88%
Pure Sine Wave (THD < 5%@ Normal Load)
CR-8 / CR-16 (optional)
Red / Orange / Green LED
6-port Green terminal (for inverter ON / OFF)
Over / Under Voltage, Reverse Polarity (Internal Fuse)
Short-Circuit, Overload
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Model No.
SP-700-124
24VDC
33 ± 0.5VDC

21 ± 0.5VDC
21~33VDC
<0.8 A @24VDC
<0.06A @24VDC
700 VA (± 3%)
< 1230 VA
89%
1 Sec Shutdown
By a relay

-20 ℃~40 ℃
-30 ℃~70 ℃
10 ~95% RH
SP-700-148
48VDC
66 ± 1.0VDC

42 ± 1.0VDC
42~66VDC
<0.5 A @48VDC
<0.05A @48VDC
90%

