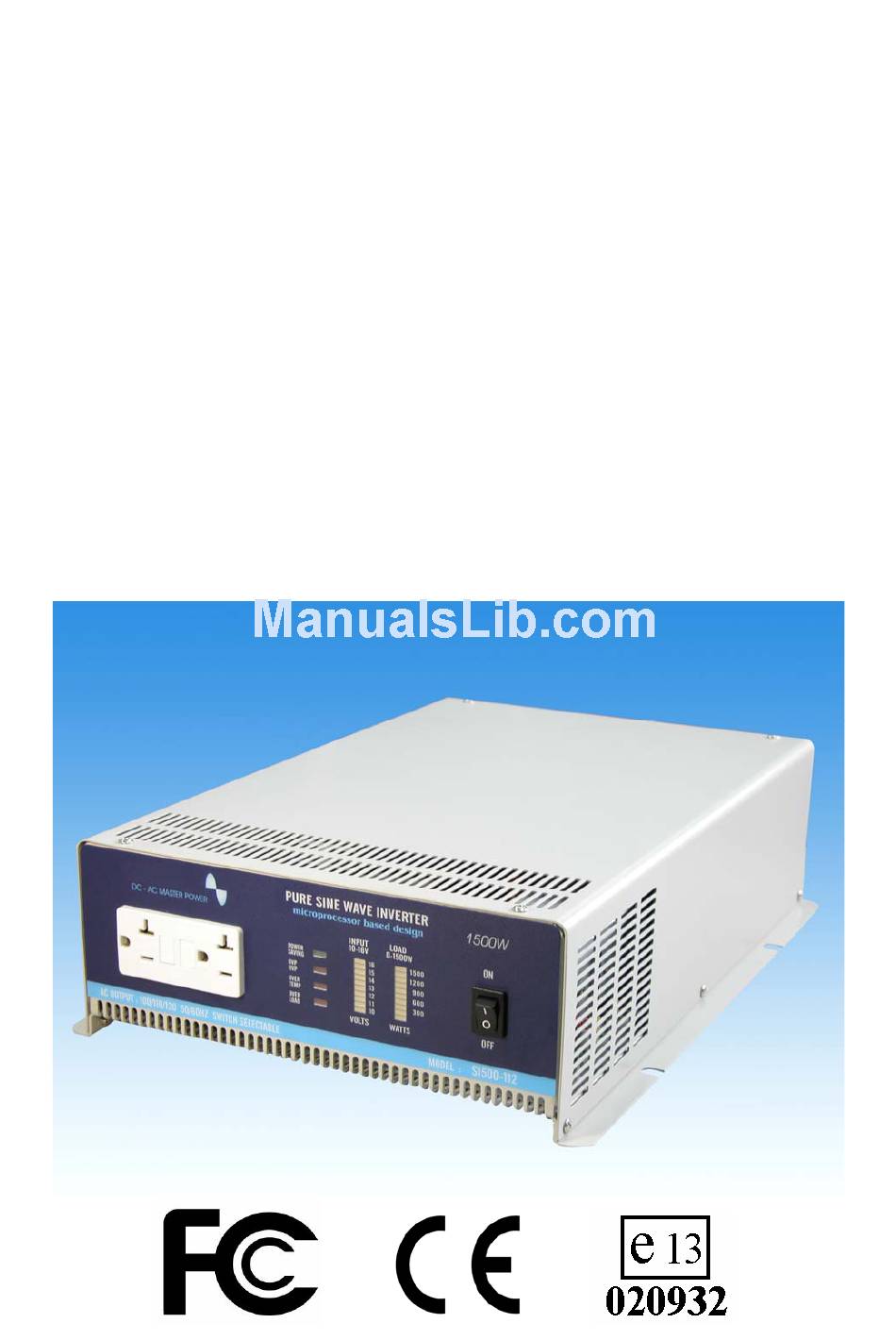

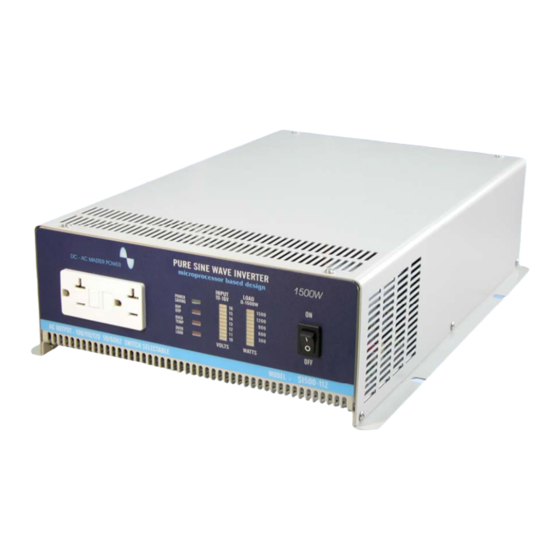

  • Page 1 S1500 Series Pure Sine Wave Inverter User’s Manual...

  • Page 2: Table Of Contents

    Contents Important safety striations…………………………………………………... General safety precautions……………………………………………. Precautions when working with batteries…………………………….. Features………………………………………………………………………… Application………………………………………………………………. Electrical performance…………………………………………………. Rear panel operations…………………………………………………. Introduction……………………………………………………………………. Front panel operations…………………………………………………. Rear panel operations………………………………………………….. Installation……………………………………………………………….. Quick hook － up and testing………………………………………….. AC safety grounding……………………………………………………. 11~12 Making DC wiring connections………………………………………... Inverter operation………………………………………………………..
  • Page 3 Contents 10. Appendices…………………...………………………………………………... 10-1 FCC (Class B) declaration of conformity…………………………….. 10-2 CE (EMC EN55022B) declaration of conformity……………………. 10-3 CE (LVD EN60950) declaration of conformity………………………. 10-4 e-mark (e13 020932) declaration of conformity…………………….. 10-5 UL (UL458) declaration of conformity………………………………..

  • Page 4: General Safety Precautions

    1. Important Safety Instructions WARNING! Before using the Inverter, read and save the safety instructions. 1-1. General Safety Precautions 1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not cover or obstruct the ventilation openings.

  • Page 5: Features

    2. Features Pure sine wave output (THD < 3%) Output frequency：50 / 60Hz switch selectable Low power “Power Saving Mode” to conserve energy RS - 232C interface / remote controls port Built-in voltage and watt meter Thermostatically controlled cooling fan Advanced microprocessor Protection：Input low voltage Overload...

  • Page 6: Electrical Performance

    2-2. Electrical Performance Model No. Specification Item S1500-112 S1500-124 S1500-148 S1500-212 S1500-224 S1500-248 Continuous Output Power 1500W Surge Rating 2000W Input Voltage 100 / 110 / 115 / 120V +/- 5% 200 / 220 / 230 / 240V +/- 3%...

  • Page 7: Rear Panel Operations

    2-3. Mechanical Drawings...

  • Page 8: Introduction

    3. Introduction This power inverter series is a the member of the most advanced line of mobile AC power systems available. To get the most out of the power inverter, it must be installed and used properly. Please read the instructions in this manual before installing and using this model. 3-1.
  • Page 9 3-1-4. Battery Voltage indicator： The AC load watt bar graph indicates the power drawn from the power inverter by the load. For long term operation, the watt indicator should remind in the green & orange area of the bar graph. Short term operation is possible with watt indicator in the red area.
  • Page 10 3-1-10. AC Outlet (Outlet sockets available)： North America (GFCI) North America (NEMA 5-15R) Continental European (SCHUKO) Australia / New Zealand Universal United Kingdom...

  • Page 11: Rear Panel Operations

    Connect to 12V / 24 V / 48V battery or the other power sources. 【+】is positive, 【-】is negative. Reverse polarity connection will blow internal fuse and may damage inverter permanently. Model voltage Min voltage Max. voltage S1500-112 10.0 VDC 16.0 VDC S1500-212 S1500-124 20.0 VDC 32.0 VDC...
  • Page 12 Over voltage Under Under Voltage Model Protection Voltage Shut- Shut- Shut- Restart Restart Restart Alarm down down down S1500-112 17.1VDC 15.8VDC 10.2VDC 9.5VDC 12.4VDC S1500-212 S1500-124 34.1VDC 31.5VDC 20.4VDC 19.3VDC 24.8VDC 85℃ 45℃ S1500-224 S1500-148 63.0VDC 58.5VDC 41.6VDC 38.6VDC 49.6VDC...

  • Page 13: Installation

    3-4. Installation： Where to install. The power inverter should be installed in a location that meets the following requirements： 3-4-1. Dry － Do not allow water to drip or splash on the inverter. 3-4-2. Cool － Ambient air temperature should be between 0°C 3-4-3.
  • Page 14 The longer or narrower the cables, the greater the voltage drop. Increasing your DC cable size will help improve the situation. Model No Wire AWG Inline Fuse S1500-112 200A S1500-212 200A S1500-124 130A...
  • Page 15 Also, use only high quality copper wiring and keep cable length short, a maximum of 3-6 feet. IN L IN E F U S E B A T T E R Y...

  • Page 16: Ac Safety Grounding

    UL standards requires us to test and recommend specific GFCI. Cotek has tested the following GFCI － protected 20A receptacles and found that they functioned properly when connected to the output of the Inverter. 3-6-1. Neutral Grounding (GFCI’S)：...

  • Page 17: Inverter Operation

    3-7. Inverter Operation： To operate the power inverter, turn it on by using the ON/OFF switch on the front panel. The power inverter is now ready to deliver AC power to your loads. If you are operating several loads from the power inverter, turn them on separately after the inverter has been turned on.
  • Page 18 WARNING! You may observe a spark when you make this connection since current may flow to charge capacitors in the power inverter. Do not make this connection in the presence of flammable fumes Explosion or fire may result. 3-7-5. Set the power switch to the ON position. Check the meters and indicators on the front panel of the inverter.

  • Page 19: Power Output

    3-8. Power output： The inverter will operate most AC loads within its power rating. When deeming whether a microwave oven can be operated by the inverter, remember that the power commonly advertised for microwave ovens are the cooking power (the power delivered to the food) not the power actually consumed by the microwave oven.

  • Page 20: Troubleshooting Guide

    4. Troubleshooting guide： WARNING! Do not open or disassemble the Inverter. Attempting to service the unit yourself may result in a risk of electrical shock or fire. Problems and Symptoms Possible Cause Solutions Low output voltage Using average reading Use true RMS reading meter and cable.

  • Page 21: Maintenance

    5. Maintenance： Very little maintenance is required to keep your inverter operating properly. You should clean the exterior of the unit periodically with a damp cloth to prevent accumulation of dust and dirt. At the same time, tighten the screws on the DC input terminals. 6.

  • Page 22: Dip Switch (110V)

    7. Appendix A 7-1. Dip Switch (110V) VOUT FREQ. BAUD (VAC) (Hz) RATE 1200 2400 ------ ------ 4800 ------ ------ 4800 7-2. Dip Switch (220V) VOUT FREQ. BAUD (VAC) (Hz) RATE 1200 2400 ------ ------ 4800 ------ ------ 4800 ※S4 is unavailable...

  • Page 23: Operations Of Rs232 Serial Port

    8. Appendix B 8-1. Operations of RS232 Serial Port 8-1-1. Hardware design： This unit uses a 9-pin D connector and three of RS232 signal lines： RECEIVE DATA (RXD)：PIN2 TRANSMIT DATA (TXD)： PIN3 DATA TERMINAL READY (DTR)：PIN4 8-1-2. The connection between this unit and a computer is as follows： Computer Power Inverter 8-1-3.

  • Page 24: Interface Command

    8-2. Interface Command： The buffer size used for the RS232 port is 12-bytes. This unit will ignore all bytes more than this value. During transmission, this unit (inverter) will indicate it is ready to receive data from computer by the DTR line. A computer has to check the DTR line before sending any information to this unit.
  • Page 25 8-2-2-2. Command format This unit supports the following commands. There should always be a CR (0DH) and a LF (0AH) appended to the command while sending the command to his unit. 8-2-2-3. PWRS command： Power saving function control Format： PWRS < value> Illustration：A space (ASCll code 20H) is needed between PWRS and <...
  • Page 26 8-2-2-5. To query status command Format：STUS? Illustration：Don’t need to add any of parameter. To respond the result be hexadecimal code replaced by 2 ASCll codes that is between 00 ~ FF (0~255), then convert the Hex code to the binary digit after obtaining 8 bytes digit that can be one of following：...
  • Page 27 8-2-2-6. To query battery level command Format：BATT? Illustration：Don’t need to add any of parameter. To respond the result be Hexadecimal code replaced by 2 ASCll codes and is between 00 ~ 0B, then convert into decade digit after obtaining a digit, between 0 ~ 11, that can be one of following ：...
  • Page 28 8-2-2-7. To query load level command： Format：Load? Illustration：Don’t need adding any of parameter. Respond：The same as BATT? < value > can be one of following Decade Indication code code Load < 5%, All of LED indicators go “OFF” Load < 15%, LED 1 indicator glows. Load <...

  • Page 29: Remote Control Operations

    9. Appendix C 9-1. Remote Control Operations：( Optional accessory ) System Configuration： 9-1-1. Plug the 9-pin D-SUB connector of the remote controller in the RS-232 port of the Inverter. 9-1-2. Check the setting of DIP-SW S5 & S6, The communication BAUD RATE should be set to 4800bps (S5 &...
  • Page 30 Operations： 9-1-4. Set SLIDE SW “ON” (Keypads will not work if SLIDE SW is set “OFF”) 9-1-5. Remote ON/OFF：Pressing a button (and releasing in one second) will change (toggle) the output ON/OFF mode and the display of LEDS will be changed accordingly. 9-1-6.

  • Page 31: Power Saving Mode

    9-2. Power saving mode MICROPROCESSOR BASED SINE WAVE INVERTER S-1500 SERIES ENABLING AND DISABLING POWER SAVING MODE 9-2-1. When an inverter is powered on and is running in idle condition ( there is no load or the load connected to the inverter has been switched off ), it will still draw some power from the batteries for keeping the system alive.
  • Page 32 9-2-4-2. The power saving “sleep” mode is enabled in either of the following indications ( When inverter is in on condition )： The green led flashing sequence is： Flash-flash-gap-flash-flash-gap…….( power saving “sleep” mode, idle condition or no load ) The green led is continuously lighted ( power saving “sleep” mode, loaded ) 9-2-5.
  • Page 33 9-2-6. Power saving “sleep” mode, disabled 9-2-6-1. The front plate has a green led marked “power saving” for indication of enable state of power save “sleep” mode ( here- in-after referred to as the green led ) 9-2-6-2. The power saving “sleep” mode is disabled when the green led marked “power saving”...
  • Page 34 Switch on the front plate of the inverter is done as follows： This procedure acts as a toggle i.e. If the inverter was in enabled state before the procedure, it will switch to disabled state after the procedure. Likewise, if it was in disabled state before the procedure, it will switch to enabled state after the procedure.

  • Page 35: Fcc (Class B) Declaration Of Conformity

    10-1. FCC ( class B ) Declaration of Conformity...

  • Page 36: Ce (Emc En55022B) Declaration Of Conformity

    10-2. CE ( EMC EN55022B ) Declaration of Conformity...

  • Page 37: Ce (Lvd En60950) Declaration Of Conformity

    10-3. CE ( LVD EN60950 ) Declaration OF Conformity...

  • Page 38: E-Mark (E13 020932) Declaration Of Conformity

    10-4. e-mark ( e13 020932 ) Declaration of Conformity...

  • Page 39: Ul (Ul458) Declaration Of Conformity

    10-5. UL ( UL458 ) Declaration of Conformity...
