S150,S300 Series
Pure Sine Wave Inverter
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S150 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cotek S150 Series

Summary of Contents for Cotek S150 Series

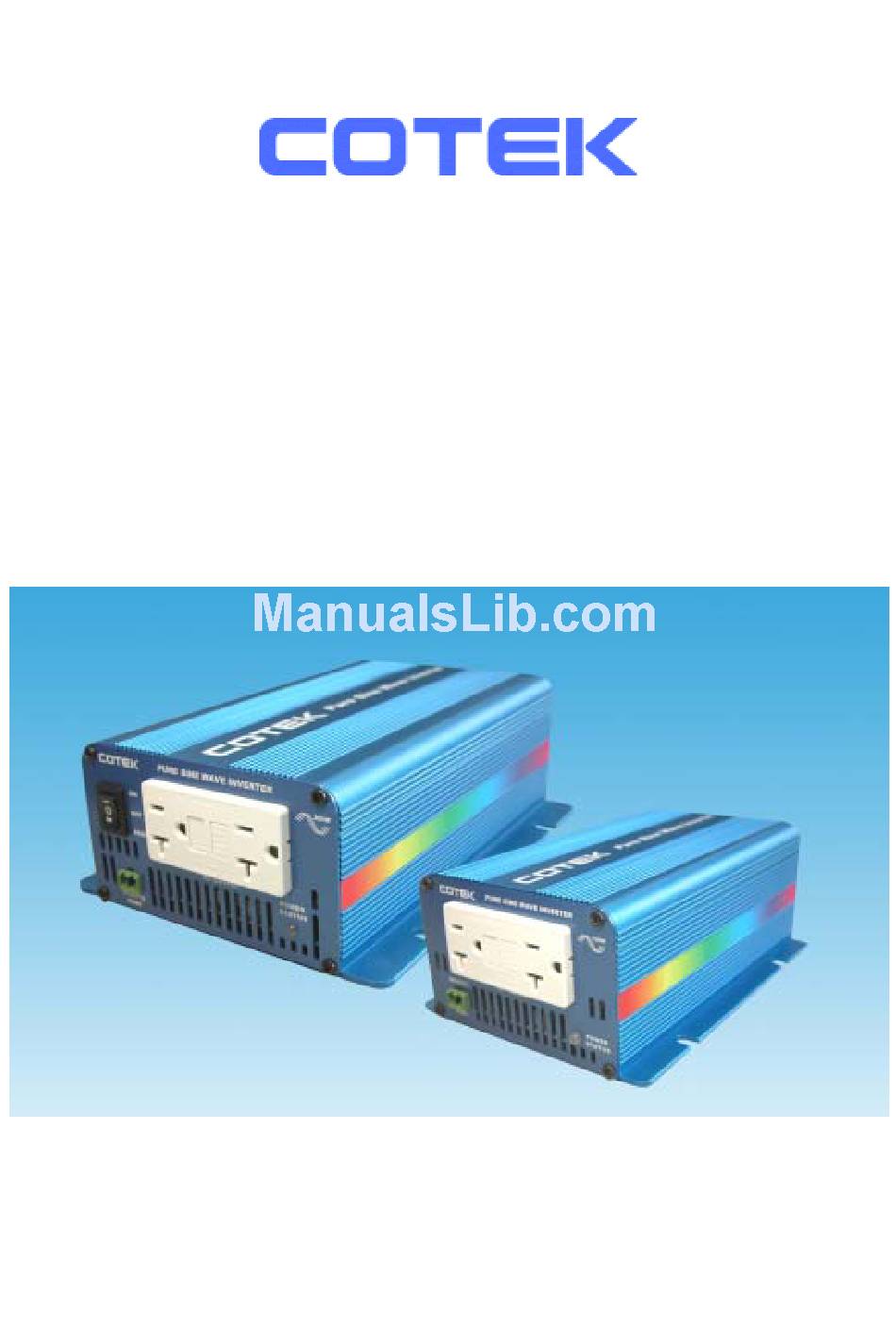

  • Page 1 S150,S300 Series Pure Sine Wave Inverter User’s Manual...

  • Page 2: Table Of Contents

    DC Input (Outlet sockets available)……….………………………….. AC output (Outlet sockets available)…………………………………. 4. Troubleshooting guide……………………………………………………… 5. Maintenance…………………………………………………………………… 6. Warranty……………………………………………………………………….. ©Copyright ：This manual is the copyright of COTEK Electronic lnd. Co., Ltd. And may not be reproduced or copied without the express permission of the owner.

  • Page 3: Important Safety Instructions

    1. Important Safety Instructions WARNING! Before you install and use Your Inverter, to read and save these safety instructions. 1-1. General Safety Precautions 1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not obstruct the ventilation openings.

  • Page 4: Features

    2.Features 2-1. Electrical Performance 150W Specification Model No. Item S150-112 S150-124 S150-212 S150-224 Continuous Output 150W Power Surge Rating 200W Input voltage Input Voltage Range 10.5 – 15.0 21.0 – 30.0 10.5 – 15.0 21.0 – 30.0 110 VAC ±5% 230 VAC ±5% Output Voltage Frequency...

  • Page 5: Electrical Performance 300W

    2-2. Electrical Performance 300W Specification Model No. Item S300-112 S300-124 S300-212 S300-224 Continuous Output 300W Power Surge Rating 400W Input voltage Input Voltage Range 10.5 – 15.0 21.0 – 30.0 10.5 – 15.0 21.0 – 30.0 110 VAC ±5% 230 VAC ±5% Output Voltage Frequency 50 / 60Hz...

  • Page 6: Mechanical Drawings 150W

    2-3. Mechanical Drawing 150W PURE SINE WAVE INVERTER 150W REMO. AC OUTPUT REMOTE POWER STATUS PORT...

  • Page 7: Mechanical Drawings 300W

    2-4. Mechanical Drawing 300W PURE SINE WAVE INVERTER 300W REMO. AC OUTPUT POWER STATUS REMOTE PORT...

  • Page 8: Introduction

    3. Introduction This series models are the most, reliable, multi protections, compact size, pure sine wave inverters that used in wide range of applications including Mobile, Office equipments, Home entertainments, electronics hold equipments. To get the most out of the power inverter, it must be installed and used properly.

  • Page 9: Ac Safety Grounding

    (neutral of the Inverter’s AC output to input safety ground) is not present so that the utility neutral is only connected to ground at your breaker panel, as required. Cotek has tested the following GFCI – protected 20A receptacles and found that they functioned properly when...

  • Page 10: Installation

    WARNING! Never connect the inverter’ output to the AC distribution grid, such as your household AC wall outlet. It will damage the Inverter. 3-4. Installation Before connect your applications to the inverter, always check the power draw of your appliances. The inverter is affordable to supply surge power for a short time so as to start up the electrical equipments such as motor, pumps…...

  • Page 11: Dc Input (Outlet Sockets Available)

    3-5. DC Input (Outlet sockets available)： CIGARET CLAMP TERMINAL 3-6. AC output (Outlet sockets available)： North America (GFCI) North America Continental European (SCHUKO) Australia / New Zealand Universal United Kingdom IEC-1 IEC-2...

  • Page 12: Troubleshooting Guide

    4. Troubleshooting guide： WARNING! Do not open or disassemble the Inverter. Attempting to service the unit yourself may result in a risk of electrical shock or fire. Problems and Symptoms Possible Cause Solutions No output voltage, the LED glows RED light. a.

  • Page 13: Maintenance

    5. Maintenance： Very little maintenance is required to keep your inverter operating properly. You should clean the exterior of the unit periodically with a damp cloth to prevent accumulation of dust and dirt. At the same time, tighten the screws on the DC input terminals. 6.
  • Page 14 Distributed by Power Sources Unlimited, Inc. 200 Stonewall Blvd, Suite 4, Wrentham, MA 02093 P 800-966-PSUI (7784) or 508-384-1419 F 508-384-1896 2003.09...
