Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Part. No.
Part. No.
31285547
31285547

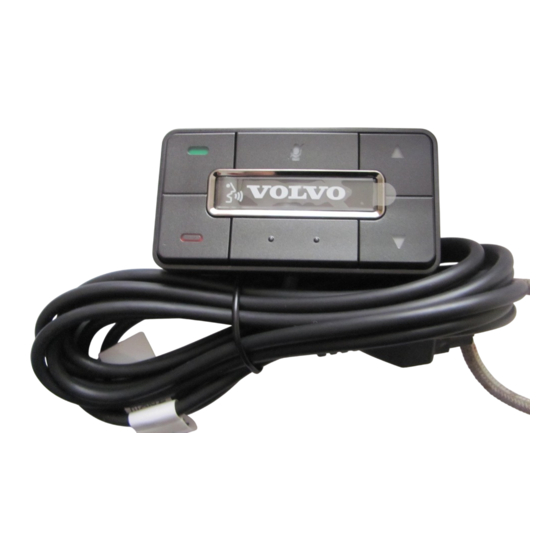

Handsfree, Bluetooth
Handsfree, Bluetooth
Handsfree, Bluetooth- 31310088 - V1.3
Side 1 / 44

Advertisement

loading

Related Manuals for Volvo 31285547

Summary of Contents for Volvo 31285547

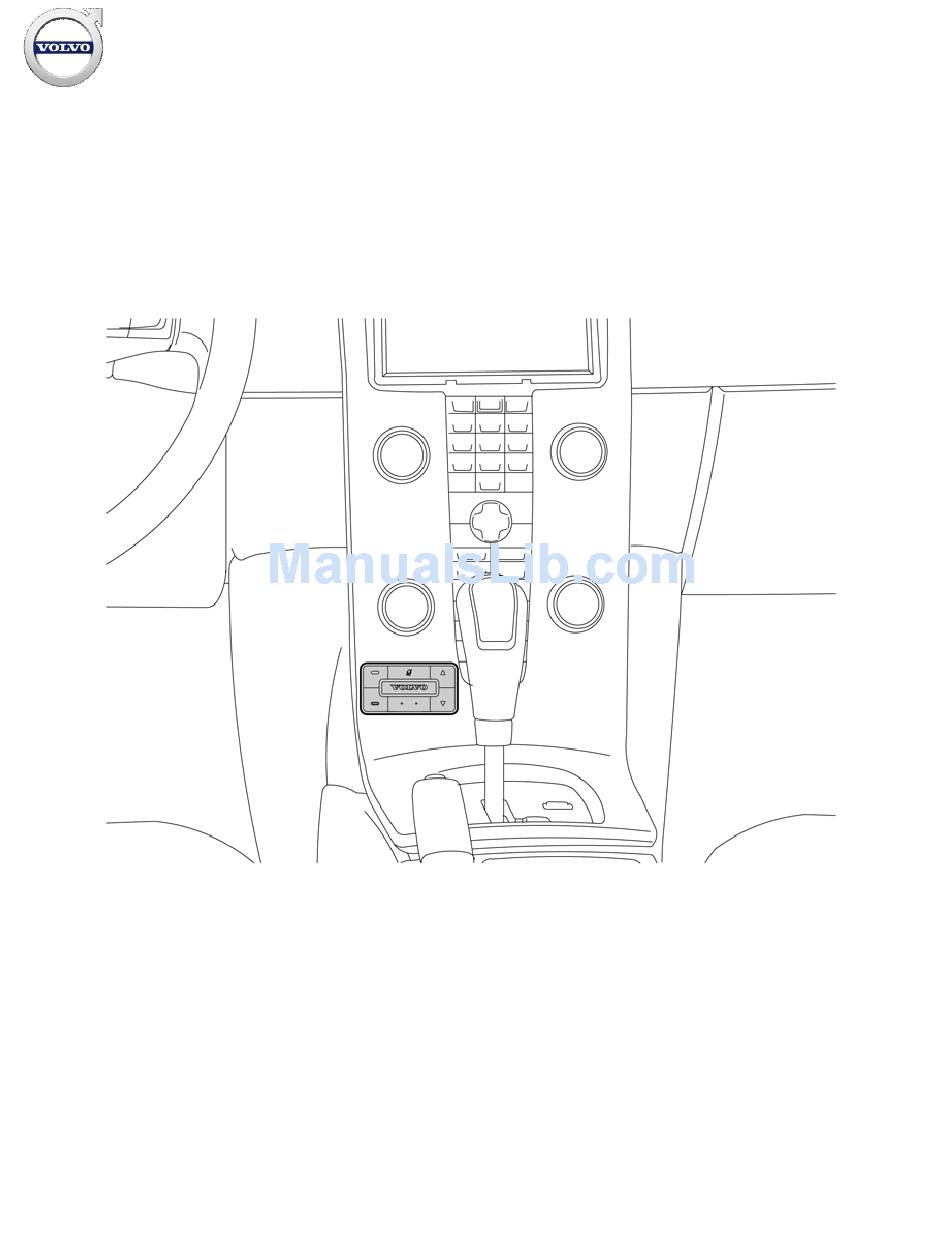

  • Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31310088 31310088 31285547 31285547 Handsfree, Bluetooth Handsfree, Bluetooth IMG-331665 IMG-331665 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3 Side 1 / 44...
  • Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-239981 IMG-239667 IMG-239664 IMG-332314 A0000177 IMG-331666 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3 Side 2 / 44...
  • Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-331667 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3 Side 3 / 44...
  • Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Wiring A is for vehicles with an internal amplifier that is located in the media player.
  • Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Preparations Turn the ignition key to position 0. Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment. IMG-331668 Open the glovebox. Pry off the panel in front of the center console. It is secured with two clips on each short side.
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply tape to the center console to protect it during removal and installation of the glove compartment. IMG-239762 Remove the panel. IMG-240082 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3 Side 6 / 44...
  • Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the clip holding the vent from the glove compartment. IMG-244221 Remove the rubber mat from the glovebox. Remove the five screws in the opening. Pull the glovebox straight back in the vehicle in order to release the two hidden clips in the top edge.
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unplug the connectors on the top. IMG-222669 Remove the screws for the vent. Pull off the vent to the right and place to one side. IMG-239763 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3...
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the clips at the rear edge of the soundproofing panel and remove it. J8504871 Detach the surround around the display and media player. Press in the catch in one of the upper corners of the surround using a small screwdriver.
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the display with the infotainment control module (ICM). It is secured by two hidden clips. Hint Grip the control module with both hands and pull the control module straight out of the center console.
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold up the tunnel console's armrest and remove the cover. IMG-270743 Remove the screws. IMG-263584 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3 Side 11 / 44...
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the front storage compartment by prying it off at the front edge using a weatherstrip tool and lifting it out. IMG-263949 Remove the two screws along the front edge of the tunnel console.
  • Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Carefully lift the catches at the front edge of the tunnel compartment. Use special tool 9995919. Illustration B At the same time pull the console backwards approximately 20 IMG-263586 IMG-263208 Remove the screws.
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with manual gearbox Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.
  • Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards. Note! Be careful with the optic cables so that they are not bent or stretched.
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with internal amplifier Remove cable harness A from the kit. Applies to cars with external amplifier Remove cable harness B from the kit. Applies to all models Connect the gray connector (2) in the new cable harness to the gray connector (3) which was detached from the media player.
  • Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Place the control panel cable in the groove as illustrated. IMG-331669 IMG-331670 Remove the protective film from the tape and secure the control panel edge to edge against the climate panel according to the dimensions illustrated.
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the cable securely into the compartment that is in the joint between the front and rear side of the center console. Stop level with the lower edge of the display opening.
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installing the microphone Unhook the sun visor from the mounting. Carry out on both sides. IMG-253963 Remove the locking plug and the mounting. Carry out on both sides. IMG-274304 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3...
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull off the driver's weather strip at the A-post and dashboard. Pull off the panel from the A-pillar. The panel is secured by three clips. Unhook the safety clip. Lift the panel upwards and inwards in the vehicle.
  • Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the three screws. IMG-253984 Take two 700 mm pieces of foam tape from the kit. Cut one piece of foam tape in the middle. Tape one long and one short piece of foam tape on the microphone cable starting 70 mm from the microphone.
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull down the headlining with the interior lighting frame slightly. Route the microphone cable along the top of the existing cable harness as illustrated. IMG-253986 Route the microphone cable to the front edge of the headlining as illustrated.
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Make a mark on the foam tape affixed to the cable 230 mm from the microphone. Use a cable tie to fasten the cable at the mark at the existing connector. Install the three trim screws.
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clean the microphone and roof panel in the area illustrated, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth.
  • Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the cable to the A-pillar and onwards to the glove compartment. Take three small tie straps from the kit and secure the cable at the A-pillar as illustrated. Warning! Make sure that the routing of the microphone cable does not interfere with the function of the inflatable curtain.
  • Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Get a thick foam tape from the kit and fasten it on the front of the control module. Fold up the foam tape around the corners and edges of the control module.
  • Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the front sill molding by first pulling it backwards at the front edge and then straight up so that the clips release. IMG-250923 Unscrew the clips holding the floor carpet. Fold aside the floor mat to access the bulkhead panel inside.
  • Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the control module with the thick foam tape forward, against the bulkhead. IMG-256726 Fold aside the cable harnesses (1) so that they do not end up between the control module and floor mat.
  • Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connecting Fold the carpet to the right of the center console. IMG-239780 Applies to cars with internal amplifier Take the relay and two thick pieces of foam tape from the kit. Connect the connectors from cable harness A to the relay.
  • Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with internal amplifier Place the relay between the carpet and the climate control unit as illustrated. IMG-239783 Connect the connectors as illustrated. Applies to cars with internal amplifier 1. Connect cable harness A to the cable from the control module.
  • Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the connectors and the excess wiring inside the center console. Fold back the carpet. IMG-239781 Take two large tie straps from the kit and secure the cable from the microphone on top of the collision pipe.
  • Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall: gear lever gaiter, starting at the trailing edge. and slide the tunnel console forward so that the lugs secure it. At the same time align the floor carpet on the right and left-hand sides.
  • Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull off the rubber strip at the rear of the opening for the right- hand rear door. Carefully pry off the lower panel on the C-post on the right-hand side. Carefully pry at the top edge. Use a plastic weatherstrip tool.
  • Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull off the rubber moldings at the rear edge of the right-hand front door and at the front edge of the right-hand rear door. This releases the lower panel on the B-pillar.
  • Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the V50 Remove the cargo compartment carpet. J8504575 Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips on the short side release.
  • Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screw. Pull the panel upwards so that the four clips on the inside release. Remove the panel. This is carried out on the left-hand side on right-hand drive vehicles. IMG-240927 Fold out the load securing eyelets.
  • Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the S40 Remove the cargo compartment carpet. J8504553 Remove the upper floor support on the left and right-hand sides if applicable. J8504552 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3...
  • Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unscrew the two external clips at the front edge/bottom edge of the sill trim panel on the tailgate. Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips in that end release.
  • Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the S40 and V50 Route the cable B inside the floor carpets, the lower B-post panel and the insulation panels, back to the rear edge of the right -hand rear wheel arch. Route the cable along the existing cable harnesses in the cargo compartment.
  • Page 40 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the V50 Remove the clips and the insulation panel. J8504639 Disconnect the rear connector (1) on the amplifier. IMG-240930 © Volvo Car Corporation Handsfree, Bluetooth- 31310088 - V1.3 Side 40 / 44...
  • Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect cable harness C from the kit to the amplifier as follows: Connector (1) that was disconnected from the amplifier is connected to the female connector (2) on the adapter cable. plug connector (3) on the adapter cable into the amplifier.
  • Page 42 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the relay behind the existing cable harness. IMG-240932 Finishing work Finishing work Applies to all models Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.
  • Page 43 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Dashboard Reinstall: the lower vent. the sound proofing. the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
  • Page 44 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carry out a function test as follows: Turn the ignition key to position I. Turn on the radio. Check that the control panel for Bluetooth lights up. Press the button (1) in the middle of the control panel. The radio should mute and a voice should be heard.
