Installation Manual VBB4 PRC and camera
English
1.00
th
February 28
2014
VBB4 in S40,V50,C70

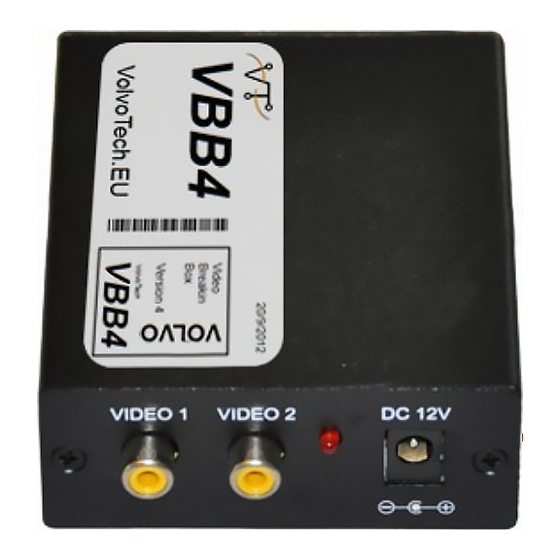

Manual describes installation of the VBB4 Plug and play
and minicamera.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VBB4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Volvo VBB4

  • Page 1 VolvoTech.EU MANUAL Kind Installation manual Title Installation Manual VBB4 PRC and camera Language English Version 1.00 Date February 28 2014 Applicable to VBB4 in S40,V50,C70 Contents Manual describes installation of the VBB4 Plug and play and minicamera.
  • Page 2 Pre requirements for this document to be useful: A Volvo S40,V50 or C70 with RTI Navigation. No known errors or failures in the electronics of your Volvo. Need to know: Obviously we try to put as much information in a manual as we can.
  • Page 3 SYNC switch: Set to RGB-S please. (in YOUR Volvo no other setting possible) RTI Port: Connect to the RTI computer with the supplied cable. Brightness and RESET:...
  • Page 4 RED and BLACK wire here. Power connector: Connects to the Power OEPS device: port on the VBB4. Starts up power feed to the RED wire once the car is STARTED. (This saves your RTI Connector:...
  • Page 5 (Right is more easy since RTI compu is ont the right as well!) INSTALLATION VBB4 (Video Break-in Box type 4) Open glove compartment. Remove panel behind the console. Page 4 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU...
  • Page 6 Remove TORX scews from the top and then from the bottom mounts. Pull forward the glove-compartment and remove/disconnect connectors Page 5 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 || support@volvotech.eu VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50- C70-1.1.doc...
  • Page 7 V E R S I O N 1 . 1 Remove TORX screws and remove the airvent pipe: Carefully remove the RTI computer in its housing and disconnect connectors: Connect VBB4 Harnesses to the connectors: Page 6 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU...
  • Page 8 Done with this part. Please leave everything as is for now and continue with the camera first now. Page 7 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 || support@volvotech.eu VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50- C70-1.1.doc...
  • Page 9 Exactly on the center line between the right licenseplate light gap and the CENTER of the most right O of VolvO. Do the same in the car’s original panel so the cable and connector can be put trough. DO NOT finalize camera position YET, this has to...
  • Page 10 Page 9 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 || support@volvotech.eu VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50- C70-1.1.doc...
  • Page 11 Note: YOU CAN CHOOSE TO DO THIS AT THE RIGHT OR LEFT PART OF THE CAR. EXAMPLE SHOWS LEFT PART. Page 10 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 || support@volvotech.eu VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50- C70-1.1.doc...
  • Page 12 Page 11 of 14 Contact details: CopyRight 2012, VolvoTech.EU VolvoTech.EU C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 || support@volvotech.eu VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50- C70-1.1.doc...
  • Page 13 Connect the camera’s power AND the “switch-wire” (connecting to the blue cable on the VBB4 in the front) with the supplied clips to the 12V+ of the REVERSE light and the Camera to 12V- (Ground) as well. MEASURE POWER by putting the car in...
  • Page 14: Frequently Asked Questions

    Q: I installed everything correctly, but I do not see my RTI (navigation) image anymore, what is happening? A: As the VBB4 has 2 video entries, (1 for RV camera and 1 for any other video), most probably the switch (Red/Black wired) is in the position it wants to show video from Video-1.
