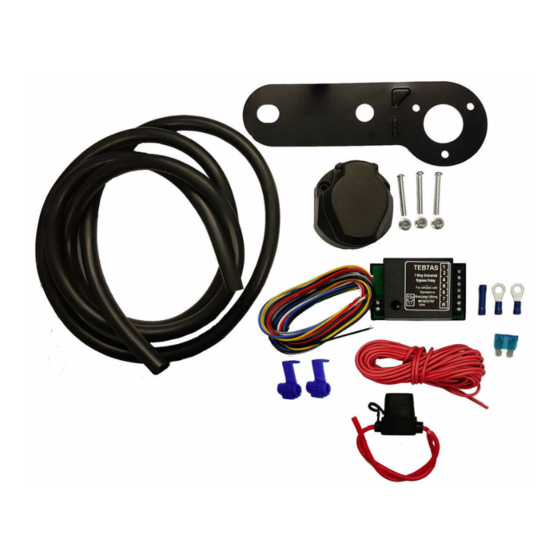

Installation instructions, accessories - Tow bar wiring, 13-pin

Volvo Car Corporation Göteborg, Sweden

S80 (-06) / V70 XC (01-) / XC70 (-07) / S60 /

V70 (00-08) / XC90

S60 2001, S60 2002, S60 2003, S60 2004, S80 (-06) 1999, S80 (-06) 2000, S80 (-06) 2001, S80 (-06) 2002, S80 (-06) 2003, S80 (-06) 2004, V70

(00-08) 2000, V70 (00-08) 2001, V70 (00-08) 2002, V70 (00-08) 2003, V70 (00-08) 2004, V70 XC (01-) / XC70 (-07) 2001, V70 XC (01-) / XC70 (-

07) 2002, V70 XC (01-) / XC70 (-07) 2003, V70 XC (01-) / XC70 (-07) 2004, XC90 2003, XC90 2004

Weight

Section Group

(Kg/Pounds)

M3702161

Year

Month

2002 06

8698535

Page 1 of 17

Need help?

Do you have a question about the 13-pin Tow bar wiring and is the answer not in the manual?

Questions and answers

Summary of Contents for Volvo 13-pin Tow bar wiring

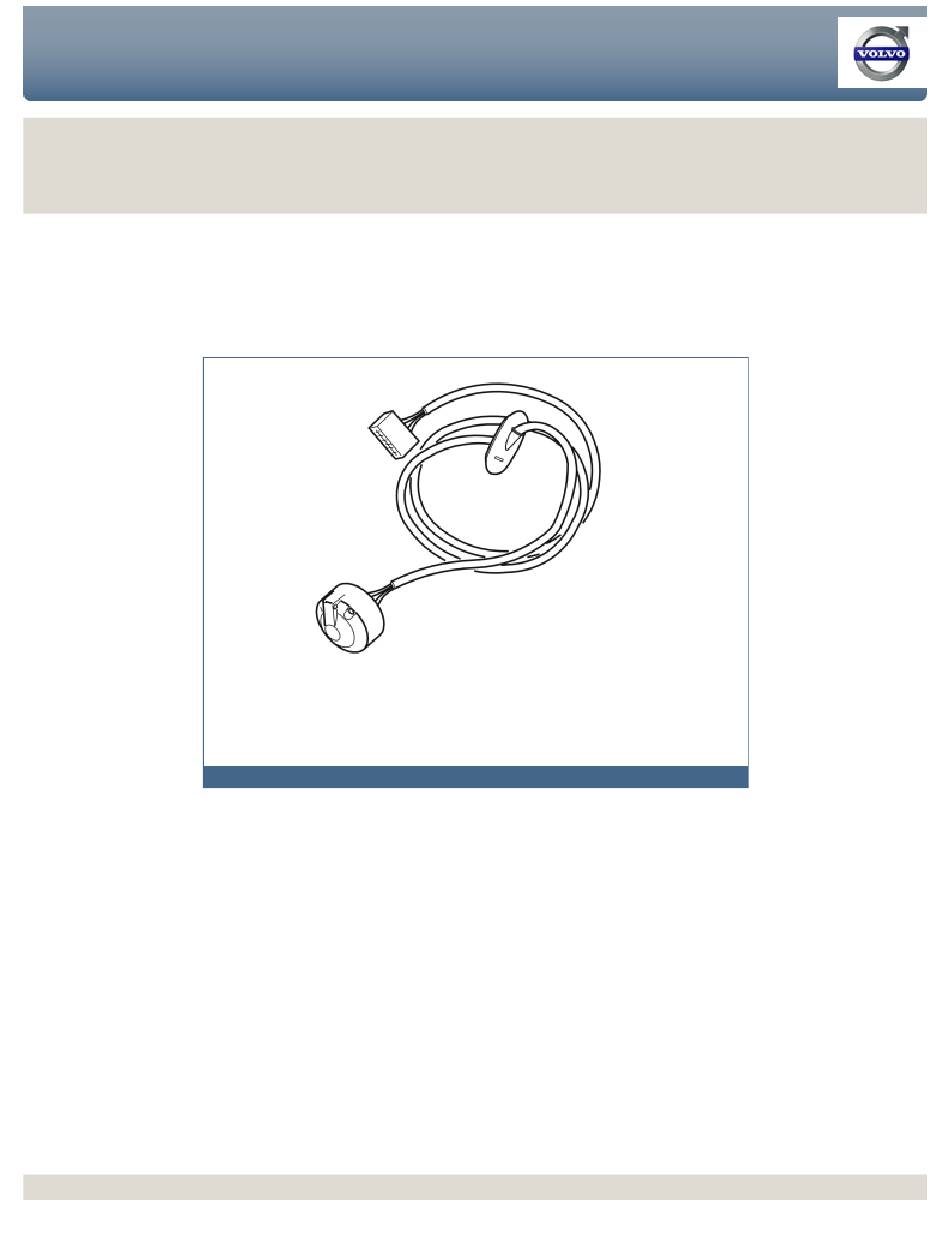

Page 1 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Weight Weight S80 (-06) / V70 XC (01-) / XC70 (-07) / S60 /...
Page 2 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Required tools A0000162 A0000161 R8802817 M3702108 © VolvoCar Corporation, 2002 Printed in Sweden © VolvoCar Corporation, 2002 Printed in Sweden...
Page 3 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Any comments on this publication? Please contact your nearest dealer. Thank you! Publication no: MA 8698535, Issue: 2002-06 Comments:......................
Page 4 Work on the SRS/SIPS systems or related components must always be order of operation is repeated in the text section carried out by an authorised Volvo workshop. Cut out the text page in order to follow the illustrations and text at Is the car equipped with SRS (supplemental restraint system)? the same time.
Page 5 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden in the centre console, in front of the parking brake. WARNING! The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery or accessories, within these areas.
Page 6 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Installing the connector for detachable tow bars Applies to the S60 Install the trailer connector (1). Use the three screws (2) and the nuts (3).
Page 7 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Installing the connector for fixed tow bars Illustration A applies to the V70 (00-) and V70XC (01-) Illustration B applies to the S80 Install the trailer connector (1).
Page 8 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Cargo compartment preparations Applies to the S60 Illustration A Fold back the carpet Remove the clips at the bottom edge of the right and left folding panels (press the centre of the clips until there is an audible click) Remove the clips.
Page 9 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Cargo compartment preparations Applies to the XC90 Illustration A Applies to cars with two rows of seats...
Page 10 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Remove the cover from the battery. R3100130 Cargo compartment preparations Illustration A applies to the S60, V70 (00-) and V70XC (01-) Remove the cover plug from the hole in the bodywork (battery drainage is not affected).
Page 11 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Cable routing Install the new holder for the connector Release the red catches by pressing them forward Connect the blue (BL) cable to terminals 1, 5 or 12, depending on the desired function.
Page 12 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Cable routing Applies to the S80 Route the cable harness from the tow bar connector through the hole in the floor...
Page 13 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden R8903087 Cable routing Slacken off the two screws for the floor extension brackets. R3100168...
Page 14 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Illustration B Connect the routed cable harness to the existing pre-routed cable harness in the...
Page 15 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Connecting the fog tail lamp and/or positive power supply / charge function Illustration A shows the removal of the cover for the load securing eyelets...
Page 16 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Note! This function requires software unique to the car. Program the software according to the service information in VIDA.
Page 17 Installation instructions, accessories - Tow bar wiring, 13-pin Installation instructions, accessories - Tow bar wiring, 13-pin Volvo Car Corporation Göteborg, Sweden Volvo Car Corporation Göteborg, Sweden Finishing work Reinstall the panels (see points 7-10) Re-position the cargo compartment carpet. Alternatively, reinstall the storage compartment and the floor hatches.
