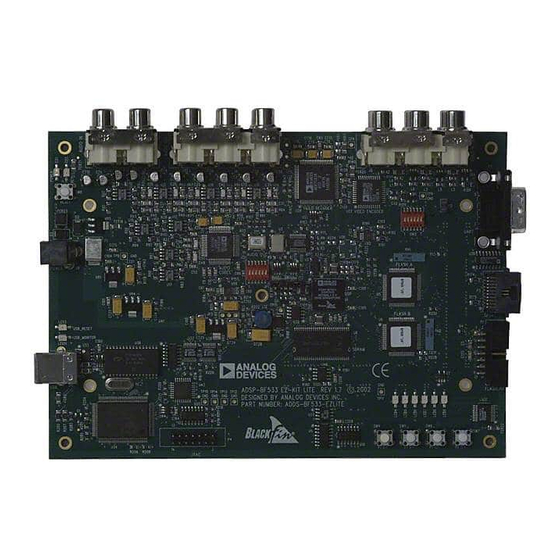

ADSP-BF533 EZ-KIT Lite
®
Evaluation System Manual
Revision 3.2, July 2012
Part Number
82-000730-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106
