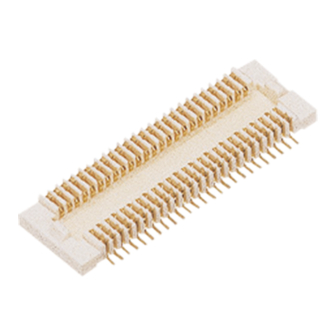

- Page 1 Narrow-pitch Connectors P5KF Operation manual ACCTF1E-4 2017.04 industrial.panasonic.com/ac/e/...
- Page 2 Operation manual for Narrow-pitch connectors P5KF Contents 01.Introduction ..................... 2 02.Precautions for equipment design ............3 03.Precautions during mounting-to-reflow ..........13 04.Precautions for mating ................19 Parts that require special confirmation are bold and underlined. Panasonic Corporation © ACCTF1E-4 201704 industrial.panasonic.com/ac/e/...
-
Page 3: Introduction
Operation manual for Narrow-pitch connectors P5KF 01. Introduction The P5KF narrow-pitch connector has a terminal pitch of 0.5 mm, and stacking height 1.5mm. This connector is designed for parts requiring space reduction. For this purpose, the molded part has been downsized and made thinner. -
Page 4: Precautions For Equipment Design
Otherwise, misaligned connector positions may cause mating failure or product breakage. Panasonic corporation does not guarantee the failures caused by using the multiple connectors. (2)Solid board is tend to warp to vertical direction against mill direction of production process. - Page 5 Operation manual for Narrow-pitch connectors P5KF 2) Position of connectors during mounting When using a multiple-pin connector, it is preferable that the connector be placed in a position that does not require swing motion of the mounter during pickup and mounting.
- Page 6 Operation manual for Narrow-pitch connectors P5KF (2) When the board fixation is not enough as the lower chart , the connector is affected by the load of the inertial force and might be damaged. Please consider as follows. Sub-board Shock of fall...
- Page 7 Operation manual for Narrow-pitch connectors P5KF 02-2. Precautions for printed circuit design 1) Circuit design (1)To obtain a good front fillet and back fillet, please review the foot pattern dimensions recommended in the specifications or catalog for terminal foot pattern design.
- Page 8 Operation manual for Narrow-pitch connectors P5KF 2) Flexible PC board design (1) Positions of connectors on the FPC FPC consists of polyimide, copper foil and bond layer. Each contraction rate of those material by heat is different so that warp of FPC may occurred and may cause poor soldering.
- Page 9 Operation manual for Narrow-pitch connectors P5KF (2) Flexible PC board specifications Control the thicknesses of the coverlay and adhesive to prevent poor soldering. There is a clearance of approx. 0.05 mm between the bottom surface of the terminal and the mold casing. Therefore, minimize the coverlay thickness, otherwise poor soldering may be result.
- Page 10 Operation manual for Narrow-pitch connectors P5KF 3) Support plate design Select a support plate with an appropriate thickness and hardness to prevent solder or the pattern from being removed during unmating of the connector. (1) It is recommended to use glass-reinforced epoxy plates, which can easily provide adequate hardness.
- Page 11 Operation manual for Narrow-pitch connectors P5KF 4) Metal Mask Design Since this connector is designed with low-profile, please pay attention to the following precautions for reflow soldering. (1) In addition to the amount of applied solder, the reflow-soldering environment and temperature profile affect the finish quality after reflow soldering.
- Page 12 Operation manual for Narrow-pitch connectors P5KF Recommended specifications of mounting pattern on PC-board and window size of metalmasking Product:Narrow-pitch connector P5KF series socket (Part No.:AXK5F○○○○○) Recommended mounting pattern on PC board (Top view) Recommended window size of metalmasking (Top view) Thickness of metalmasking:150μm...
- Page 13 Operation manual for Narrow-pitch connectors P5KF Recommended specifications of mounting pattern on PC-board and window size of metalmasking Product:Narrow-pitch connector P5KF series header (Part No.:AXK6F○○○○○) Recommended mounting pattern on PC board (Top view) Recommended window size of metalmasking (Top view) Thickness of metalmasking:150μm...
-
Page 14: Precautions During Mounting-To-Reflow
Operation manual for Narrow-pitch connectors P5KF 03. Precautions during mounting –to- reflow 03-1. Mounters We recommend that you select a multi-function mounter to mount connectors. Even if you select a high-speed mounter, please use a multi-function head and load control. - Page 15 Operation manual for Narrow-pitch connectors P5KF 03-3. Precautions for reflow soldering (1) Check the actual temperature profile at the connector mounting position and check that it matches the recommended temperature profile. Temperature Time When the resin part of the connector is melted or deformed during reflow...
- Page 16 Operation manual for Narrow-pitch connectors P5KF 03-4. Manual soldering and Solder rework This connector has been miniaturized in order to achieve a narrow pitch and an ultra- low profile. Therefore, take great care when carrying out manual soldering or rework.
- Page 17 Operation manual for Narrow-pitch connectors P5KF 03-5. Detailed precautions for solder rework (1) Flux-applying tools In order to prevent solder from rising to the contact section, the use of a brush pen type flux applicator that allows an appropriate amount of solder to be applied is recommended.
- Page 18 Operation manual for Narrow-pitch connectors P5KF 03-6. Detailed precautions for manual soldering (1) General precautions - When applying flux, apply it thinly on each foot pattern using a brush pen as shown on the previous page. (Place the connector at a predetermined position after applying flux.)
- Page 19 Operation manual for Narrow-pitch connectors P5KF 03-7. Cleaning flux from PC board Cleaning this product is not needed. If cleaning it, pay attention to the following points to prevent the negative effect to the product. (1) To increase the cleanliness of the cleaning fluid and cleaning operations, prepare equipment for cleaning process beginning with boil cleaning, ultrasonic cleaning, and then vapor cleaning.
-
Page 20: Precautions For Mating
Operation manual for Narrow-pitch connectors P5KF 04. Precautions for mating 04-1. Precautions for mating in assembly This product is designed to be small and thin. The product takes ease of handling into consideration, but position shifts during mating and slanted mating may result in contact buckling and deformation, so please perform mating work according to the following procedure. - Page 21 Operation manual for Narrow-pitch connectors P5KF Avoid the following types of mating work, as they may result in trouble: - Contact, post deformation - Molded part resin breakage, generation of cutting dust, contact defects due to interposition in the contact section, spring section return defects due to broken...
- Page 22 Operation manual for Narrow-pitch connectors P5KF 04-2. Precautions during detachment Please work so that the connector is as parallel as possible during detachment. When detaching a connector mounted to an FPC, perform the detachment action while holding the reinforcement panel so that detachment is not done by holding the FPC.
- Page 23 Operation manual for Narrow-pitch connectors P5KF Amendment history Manual No. Date Changes ACCTF1E-1 Company name and format change October, 2013 ACCTF1E-2 Division name change June, 2015 ACCTF1E-3 Revised (P.3) March, 2016 ACCTF1E-4 Revised (P.3) April, 2017 Panasonic Corporation © ACCTF1E-4 201704 industrial.panasonic.com/ac/e/...
- Page 24 2017 ACCTF1E-4 201704...
