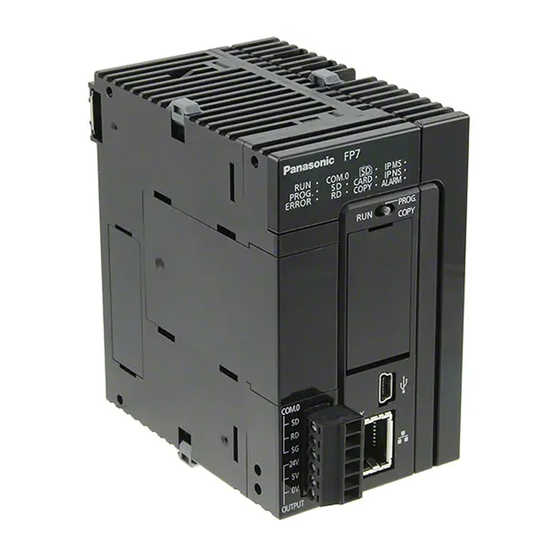

Panasonic FP7 Series User Manual
Degson push-in connector set (40-pole)
Hide thumbs
Also See for FP7 Series:
- Command reference manual (1222 pages) ,
- User manual (275 pages) ,
- Additional functions manual (45 pages)
Table of Contents
Advertisement
Quick Links
Ramco Innovations
www.ramcoi.com
phone 800-280-6933
www.ramcoi.com
nsales@ramcoi.com
WUME-FPPUSHIN-01
2023.4
panasonic.net/id/pidsx/global
ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933
DEGSON Push-In Connector Set (40-Pole)
User's Manual
[Applicable Models]
FP7 Series/FP0H Series
Advertisement
Table of Contents
Related Manuals for Panasonic FP7 Series
Summary of Contents for Panasonic FP7 Series
- Page 1 Ramco Innovations www.ramcoi.com phone 800-280-6933 www.ramcoi.com nsales@ramcoi.com DEGSON Push-In Connector Set (40-Pole) User’s Manual [Applicable Models] FP7 Series/FP0H Series WUME-FPPUSHIN-01 2023.4 panasonic.net/id/pidsx/global ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
- Page 2 (MEMO) WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
- Page 3 ● This product was developed and manufactured for use in industrial environments. Copyright and Trademark-Related Descriptions ● Panasonic Industrial Devices SUNX Co., Ltd. owns the copyright of this manual. ● Unauthorized duplication of this document is strictly prohibited. ● Other company and product names are trademarks or registered trademarks of their respective companies.
- Page 4 (MEMO) WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
-
Page 5: Table Of Contents
Table of Contents 1 Product Overview .................1-1 1.1 About This Product ................1-2 2 Wiring .....................2-1 2.1 Compatible Parts and Dedicated Tools..........2-2 2.2 Wiring to Connector ................2-3 2.2.1 Installing onto the Unit ..............2-3 2.2.2 Wiring ....................2-4 2.2.3 Replacing Wires ................2-5 2.2.4 Removing from the Unit .............. - Page 6 (MEMO) WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
-
Page 7: Product Overview
1 Product Overview 1.1 About This Product ................1-2 WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933... -
Page 8: About This Product
1.1 About This Product 1.1 About This Product This product is a 40-pole push-in type connector manufactured by Ningbo Degson Electronic Co. Ltd. that can be used with the FP7 Series and FP0H Series. Product name Model number Remarks Push-in connector set (40-pole) AFP2808 2 pcs. -
Page 9: Wiring
2 Wiring 2.1 Compatible Parts and Dedicated Tools..........2-2 2.2 Wiring to Connector ................2-3 2.2.1 Installing onto the Unit ..............2-3 2.2.2 Wiring ....................2-4 2.2.3 Replacing Wires ................2-5 2.2.4 Removing from the Unit ..............2-8 WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933... -
Page 10: Compatible Parts And Dedicated Tools
2.1 Compatible Parts and Dedicated Tools 2.1 Compatible Parts and Dedicated Tools Pole terminal with insulating sleeve Use the following pole terminals. Manufacturer Model number Size Cross-sectional area Phoenix Contact Co. Ltd AI0, 34-8TQ AWG#22 0.34 mm Dedicated pressure-welding tool for pole terminals Manufacturer Model number Phoenix Contact Co. -
Page 11: Wiring To Connector
2.2 Wiring to Connector 2.2 Wiring to Connector 2.2.1 Installing onto the Unit Follow the procedure below to install the product onto the unit. Open out the clasps of the MIL connector. Clasps MIL connector Insert the product into the MIL connector. When inserting the product, make sure that the triangular marking is at the top. -
Page 12: Wiring
2.2 Wiring to Connector Triangular marking Insert the product until the clasps of the MIL connector close. 2.2.2 Wiring Follow the procedure below when wiring. WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933... -
Page 13: Replacing Wires
2.2 Wiring to Connector Wiring precautions ● Do not damage the core when stripping off the covering material. ● Do not apply stress to the wires after wiring. ● Do not solder the core. Soldering the core may cause it to disconnect due to vibration. Strip off the covering material from the wire. - Page 14 2.2 Wiring to Connector Dedicated tool Manufacturer Model number Remarks Phoenix Contact Co. Ltd SZS 0, 4x2, 5 Blade width 0.4 × Blade thickness 2.5 Push the dedicated tool or flat-head screwdriver into the release button on the product. Release button Dedicated tool or flat-head screwdriver Remove the wire while pressing down the button.
- Page 15 2.2 Wiring to Connector ● Pressing the release button unlocks the wires on both sides of the button. After replacing the wires, ensure that the wires do not protrude. WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
-
Page 16: Removing From The Unit
2.2 Wiring to Connector 2.2.4 Removing from the Unit Follow the procedure below to remove the product from the unit. Open out the clasps of the MIL connector. Clasps MIL connector Remove the product from the unit. WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933... -
Page 17: Specifications
3 Specifications 3.1 Specifications..................3-2 3.2 Form and Dimensions.................3-3 WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933... - Page 18 3.1 Specifications 3.1 Specifications Item Specifications Number of poles 40-pole Pitch 2.54 mm Rated voltage (Note 1) Conforming to the installed unit Rated current (Note 1) Conforming to the installed unit (Note 1) Insulation resistance Conforming to the installed unit Contact resistance (Note 1) Conforming to the installed unit...
-
Page 19: Form And Dimensions
3.2 Form and Dimensions 3.2 Form and Dimensions WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933... - Page 20 (MEMO) WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
- Page 21 Record of Changes The manual number is specified at the bottom of the cover page. Issue date Manual number Description of changes April 2023 WUME-FPPUSHIN-01 1st edition WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
- Page 22 (MEMO) WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
- Page 23 (MEMO) WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
- Page 24 Panasonic Industry Co., Ltd. Panasonic Industrial Devices SUNX Co., Ltd. https://panasonic.net/id/pidsx/global Please visit our website for inquiries and about our sales network. Panasonic Industrial Devices SUNX Co., Ltd. 2023 April 2023 WUME-FPPUSHIN-01 ramco Innovations www.ramcoi.com nsales@ramcoi.com Phone 800-280-6933...
