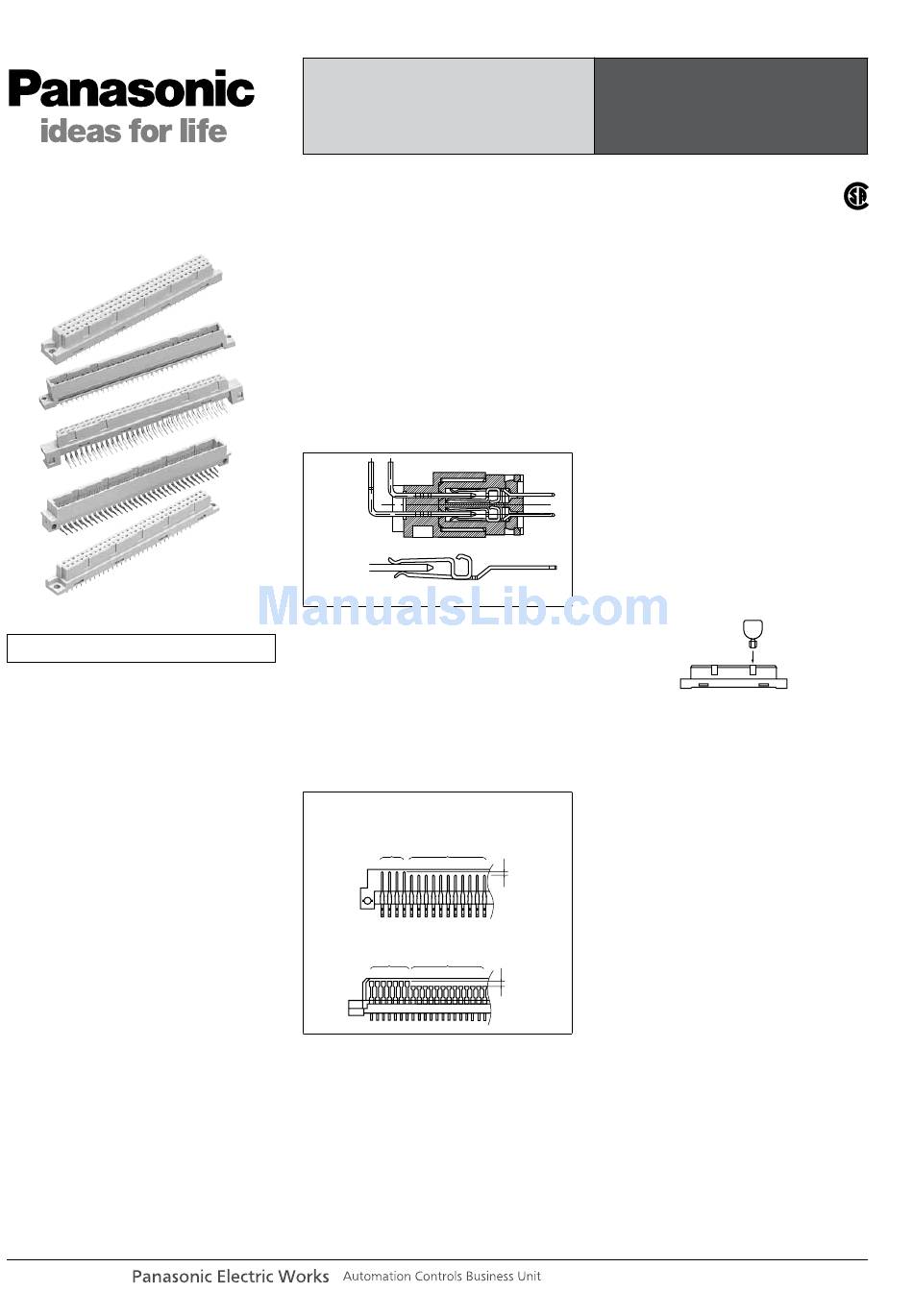

DIN CONNECTORS (AXD)
DIN Connector conforming to DIN/IEC standards
Compliance with RoHS Directive
CONNECTORS FOR PC
BOARD TO PC BOARD
FEATURES
1. 2 pieces connectors conforming to
DIN 41612 and IEC 603-2.
2. Clip contact with reliable
construction on both sides for highly
reliable contact.
1) Withstands vibration and shock.
2) Long insertion/removal life and
insertion/removal force is stable.
3) Construction able to withstand
unreasonable twisting when inserting and
removing.
Mating
diagram
Dual surface contacting construction
3. Supports time difference contact
function.
1) ICs are protected from damage at
connection even if the PC board is
inserted or removed without power
connected during maintenance or
inspection. This simplifies circuit design.
2) Time difference contacts can be
arranged as desired.
3) Possible for either header or socket.
• Time difference contact function
Header
Time difference
Standard
contacts
contacts
Socket
Standard
Time difference
contacts
contacts
DIN CONNECTORS
4. Plenty of products with improved
functions
The following types are available in
addition to ones with the time difference
contact function.
-Flux-tight type that prevents flux from
creeping up from the connector bottom
and terminals.
-Self-clinching bracket, PC board top
mounting type.
5. Constructed to prevent incorrect
insertion.
The construction is designed to prevent
reverse insertion of the connector
according to the DIN standard. We have
taken further measures with a dedicated
key that enables the easy prevention of
incorrect insertion of connectors with
identical poles.
Incorrect insertion prevention key
APPLICATIONS
PBX, Factory Automation Equipment
1mm
1.2mm
panasonic-electric-works.net/ac
(AXD)
UL
(for B and C type)

Advertisement

   Related Manuals for Panasonic DIN Connectors

   Summary of Contents for Panasonic DIN Connectors

  • Page 1

    DIN CONNECTORS (AXD) DIN Connector conforming to DIN/IEC standards Compliance with RoHS Directive CONNECTORS FOR PC BOARD TO PC BOARD FEATURES 1. 2 pieces connectors conforming to DIN 41612 and IEC 603-2. 2. Clip contact with reliable construction on both sides for highly reliable contact.

  • Page 2: Ordering Information

    Terminal portion: Ni plating on base, Sn plating on surface Contact portion: Ni plating on base, Au plating on surface Terminal portion: Ni plating on base, Sn plating on surface DIN CONNECTORS (AXD) Conditions Detection current: 1mA at 500V DC megger Measured based on the HP4338B measurement method of JIS C 5402.

  • Page 3

    DIN CONNECTORS (AXD) INTRODUCTION OF OTHER TYPES 1. FEATURES OF REVERSE TYPE DIN CONNECTOR New series of reverse types popular in the U.S.A. 1) Shock resistant socket construction Integrated construction of the flange and housing prevent damage to the terminals from shock.

  • Page 4

    Part No. AXD232801 (The middle row is AXD250801 removed) AXD264801 AXD200801 Note: All are tray packaged. Packing quantity for outer carton is 200 pcs. DIN CONNECTORS (AXD) Header Standard types B type C type Q type 2 rows 3 rows...

  • Page 5

    DIN CONNECTORS (AXD) PRODUCT TYPE (HIGHER FUNCTIONAL products) 1. Top mounting types 1) B type (standard 2 rows) Shape Header Solder-dip angle terminals No. of contacts 3) Q type (reverse 2 rows) Shape Socket Solder-dip angle terminals No. of contacts 2.

  • Page 6

    5. Time difference contacts Time difference contacts can be arranged as desired. Packaging Please consult us. Outer carton 50 pcs. 200 pcs. Standard contacts DIN CONNECTORS (AXD) Shape Socket Solder-dip straight terminals Without self-clinching bracket Part No. AXD164321 AXD196421 Shape...

  • Page 7

    CAD Data 11.4 Recommended PC board pattern (Bottom view) (8.0) 8.46 D±0.2 B±0.2 Recommended PC board pattern (Bottom view) D±0.1 B±0.1 mark can be downloaded from: http://panasonic-electric-works.net/ac B±0.2 2-2.8 dia. 2.54±0.15 2.54±0.15 D±0.2 General tolerance: ±0.3 2.54±0.05 D±0.1 B±0.1 PC board...

  • Page 8

    B±0.1 8.46 2.8 dia. 11.6 D±0.2 (50, 64 contacts), D±0.3 (100 contacts) Recommended PC board pattern (Bottom view) 47.36 70.22 87.87 133.72 panasonic-electric-works.net/ac DIN CONNECTORS (AXD) PC board PC board edge mounting top mounting type type +0.1 11.32 2.54±0.2 2.54±0.15 General tolerance: ±0.3...

  • Page 9

    DIN CONNECTORS (AXD) DIMENSIONS of 3 Rows type • C type socket (64 and 96 contacts) Solder-dip straight terminals CAD Data Note: For 64 contacts type, the middle row is removed. • C type header (64 and 96 contacts) Solder-dip angle terminals CAD Data 11.0...

  • Page 10

    88.90±0.1 94.6 90±0.2 11.0 85.2 2-2.8 dia. 88.0 78.74±0.2 Recommended PC board pattern (Bottom view) 0.3±0.1 78.74±0.1 90.0±0.1 panasonic-electric-works.net/ac DIN CONNECTORS (AXD) 2.54±0.15 PC board PC board edge mounting top mounting type type 3.05 10.1 2.54±0.2 2.54±0.15 2.54±0.15 General tolerance: ±0.3 +0.1...

  • Page 11

    DIN CONNECTORS (AXD) COMBINATION FORM (mm) Types Header Standard 6.91 3.65 B type PC board edge header mounting type (DIN standards) B type socket 2 rows type 8.46 B type header top mounting PC board top type mounting type B type socket 9.43...

  • Page 12

    3.65 Handle portion 2) When DIN connectors with the identical number of contacts are used, for preventing incorrect insertion between boards, use the following example as a reference for the incorrect insertion prevention keys.
