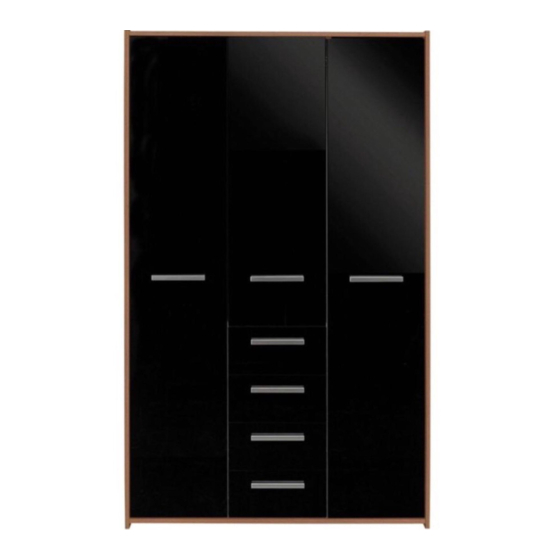

New Sywell - 4 Drawer 3 Door Robe
Assembly Instructions -
Dimensions
Width - 104cm
Depth - 49.5cm
Height - 171cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
282/7023
278/9130
258/1376
281/6096
MADE IN
BRITAIN
Issue 2 - 08/04/14
Advertisement
Related Manuals for Argos Home New Sywell 4 Drawer 3 Door Robe 282/7023
Summary of Contents for Argos Home New Sywell 4 Drawer 3 Door Robe 282/7023
- Page 1 New Sywell - 4 Drawer 3 Door Robe Assembly Instructions - 282/7023 Please keep for future reference 278/9130 258/1376 281/6096 Dimensions Width - 104cm Depth - 49.5cm MADE IN Height - 171cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 08/04/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 73kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Hanging Rail (FHR666) (666mm long) (D2568A) (1011 x 494mm) Left Side Right Side Upright Base...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 4 drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten the metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back down onto the drawer base Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the upright Place 4 runners the upright . Slide back the top of the runner and use the 2nd hole from the front to fit the 1st screw To fit the rail holder screw through the top hole with screw into the mark hole drilled in the upright...
- Page 8 Assembly Instructions Step 9 Prepare the divider Finished front edge Place 4 runners the divider . Slide back the top of the runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
- Page 9 Assembly Instructions Step 10 Plain chipboard surface Prepare the horizontal Tap 4 wooden dowels into the horizontal Insert 4 large locking nuts into the horizontal Finished front edge Step 11 Fit the horizontal to the upright Push the horizontal onto the upright Use a screwdriver to tighten the 2 large Finished...
- Page 10 Assembly Instructions Step 13 Plain chipboard surface Prepare the base Tap 4 wooden dowels into the base Finished 75mm Insert 4 large locking front edge nuts into the base Screw the foot into the middle of the base 75mm in from the front Turn the edge using screw base over...
- Page 11 Assembly Instructions Step 15 Prepare the top Tap 4 wooden dowels into the top Insert 4 large locking Finished nuts into the top front edge Screw 2 metal dowels into the top Step 16 Finished front edge Step 17 Prepare the right side Screw 4 metal dowels into the right side Fit 3 hinge plates...
- Page 12 Assembly Instructions Step 18 Fit the right side Push the right side onto the top base Use a screwdriver to tighten the 4 large locking nuts fitted to the top base Step 19 Prepare the left side Screw 5 metal dowels into the left side Fit 3 hinge plates onto...
- Page 13 Assembly Instructions Step 20 Plain chipboard Prepare the rail surface Tap 2 wooden dowels into the rail Insert 2 large locking nuts into the rail Step 21 Fit the rail Push the rail onto the divider Use a screwdriver to tighten the large locking fitted to the rail Note: Support the...
- Page 14 Assembly Instructions Step 22 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 5 large locking nuts fitted to the top , base and rail Step 23 Finished front edge Fit the back panels Square up the unit by making sure that measurement x:x equals...
- Page 15 Assembly Instructions Step 24 Secure the backs Tap the nail screws through the back holders and down between the backs into the back edge of the divider. Keep tapping the nail screws until the back holders into the small and large back. Stand the unit up for the next step.
- Page 16 Assembly Instructions Step 26 Fit the shelf studs For each of the 3 shelves , insert 4 shelf studs at the desired height. Step 27 Fit the shelves Lower the 3 shelves down onto the shelf studs...
- Page 17 Assembly Instructions Step 28 Fit the hanging rail Push the hanging rail into the rail holders fitted to the side panels. Step 29 Prepare the 3 doors Push fit 3 hinges into the centre door each of the large doors Secure each hinge with 2 screws Note: Before securing...
- Page 18 Assembly Instructions Step 30 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 19 Assembly Instructions Step 31 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 20 Assembly Instructions Step 32 Fit the bracket To prevent possible overbalancing, we recommend that this unit is secured to a suitable wall by use of the bracket fitted to the top of the unit. Fixings are not supplied, as they will need to suit the wall type and the length of screw will Top of Unit...
