Operating Manual

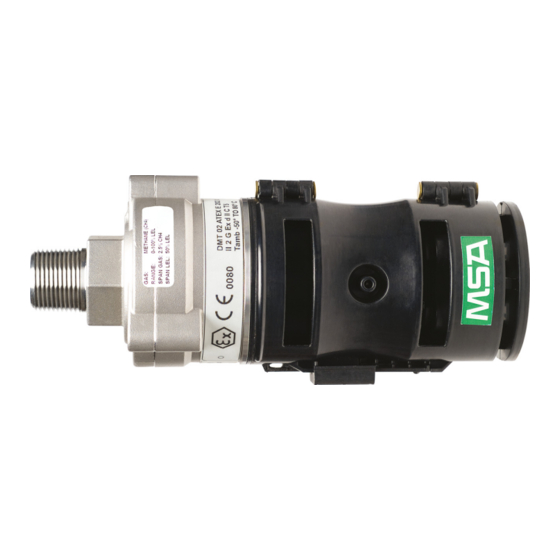

PrimaX® IR
Infrared Gas Monitor
Order No.: 10113581/04
CR 800000041694
MSAsafety.com

Advertisement

Table of Contents
loading

Related Manuals for MSA PrimaX IR

Summary of Contents for MSA PrimaX IR

  • Page 1 Operating Manual PrimaX® IR Infrared Gas Monitor Order No.: 10113581/04 CR 800000041694 MSAsafety.com...
  • Page 2 Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland © MSA 2020 All rights reserved...

  • Page 3: Table Of Contents

    PrimaX IR Calibration ........17...
  • Page 4 Technical Data ..........32 Accessories .

  • Page 5: Safety Regulations

    Safety Regulations Correct Use The PrimaX IR Gas Monitor - referred to hereafter as device - is a fixed infrared combustible gas detector. It is suitable for outdoor and indoor applications, e.g. offshore industry, chemical and petro- chemical industry, water and sewage industry.

  • Page 6: Safety And Precautionary Measures To Be Adopted

    • Do not mount the device in direct sunlight, since this may cause it to overheat. A stainless steel sunshield is available for the PrimaX IR Gas Monitor to protect it from extreme environments. • The only absolute method to ensure proper overall operation of the device is to check it with a known concentration of the gas for which it has been calibrated.

  • Page 7: Msa Permanent Instrument Warranty

    Safety Regulations MSA Permanent Instrument Warranty Warranty Seller warrants that this product will be free from mechanical defect or faulty workmanship for • IR Dual source: ten (10) years from date of shipment, as determined by HART communication that both sources are non-functional •...

  • Page 8: Description

    This device does not provide a visual display of information. The gas level and basic device status are available via the 4-20 mA output signal. Other detailed device status is available via the HART signal. Details about this interface can be found in the PrimaX IR HART Specification located on the product CD shipped with the device.
  • Page 9 HART Calibration cap/Bump cap (optional) Stainless steel junction box (optional) Remote HART calibration kit (optional) Accessories to be used with this product may be packaged separately. Check the enclosed shipping papers to identify all PrimaX IR accessories that have been ordered. PrimaX® IR...
  • Page 10 Description Accessories available for the PrimaX IR Gas Monitor include: • Optional junction box equipped with a terminal strip for easy wiring • Optional calibration cap for calibration operations • Optional tether strap for environmental guard • Optional HART Calibration cover/Bump cap •...

  • Page 11: Installation

    If a junction box is not being used, mount the device on a support by using suitable hardware (not supplied), and in accordance with local regulatory requirements. MSA recommends mounting the sensor horizontally. Horizontal mounting will help prevent the build-up of particulate or liquid matter on the monitor's optical surfaces.

  • Page 12: Optional Junction Box Instructions

    Applying force to the legs can permanently damage the monitor. MSA recommends that the device’s environmental guard should be installed on the unit at all times. If the device is to be operated without the guard, frequent checks must be made to ensure particulate or liquid matter has not collected on the windows.
  • Page 13 Fig. 6 Mounting bracket for Stainless Steel Junction Box If not using an MSA supplied junction box, refer to Fig. 2 for the dimensional drawing to ensure that there is adequate clearance. Ensure that the environmental guard can be easily removed and re-installed.

  • Page 14: Electrical Installation

    Installation Electrical installation Instructions for Electrical Connection CAUTION! The device must be installed only in compliance with the applicable regulations, otherwise the safe operation of the device is not guaranteed. • Shielded cable for measuring devices is recommended. • Always observe maximum cable lengths and cross-sections shown below. •...

  • Page 15: External Controllers

    The device can be connected to any device capable of accepting a 4 - 20 mA sourcing analog signal. For FM approved systems, the connecting device must have latching alarms with manual reset. Ensure that your controller can read all signals. Check the MSA website www.MSAsafety.com for available controllers.

  • Page 16: Start-Up And Calibration

    Transient Fault conditions will be automatically cleared when the unit recovers from the fault condition. MSA recommends verifying proper response to changes in mA outputs by using the "Enter Fixed Current Mode" command described in the PrimaX IR Link Help Guide to check the four fault conditions noted with a above.

  • Page 17: Primax Ir Calibration

    The device can be calibrated using either the optional calibration cap locally at the sensor, or using the HART digital interface. MSA recommends using a calibration gas value in the middle of the measuring range for optimum calibration. Calibration methods...
  • Page 18 Start-up and Calibration Fig. 8 MSA Calibration Cap Fig. 9 Remote HART Hand-held PrimaX® IR...
  • Page 19 The user may change the gas monitor's span value, gas name and gas curve through use of the PrimaX IR Link software found on the product CD. Please refer to the PrimaX IR HART Specification and the PrimaX IR Link Help Guide on the product CD.

  • Page 20: Bump Check Procedure

    2 IEC 60079-20-1 was used as bases for converting test and calibration gas concentrations from % LEL to % volume fraction 3 For the measurement of n-Pentane, n-Hexane, Propylene, Ethane or Isobutane PrimaX IR shall be calibrated with the target gas at a span value of approximately 50 % LEL.

  • Page 21: Calibration Cap Procedure

    Start-up and Calibration Fig. 11 Bump Check setup with environmental guard Calibration Cap Procedure Remove the environmental guard from the device. The calibration cap is equipped with a slot for an optional tether retention system. The figure below shows the location of the tether slot. Fig.
  • Page 22 If the Zero calibration fails, remove the calibration cap and reinstall to start another zero attempt. If multiple failures occur, contact an authorized MSA service center. When the display flashes the span gas symbol, apply the span gas through the calibration cap port (see Fig.
  • Page 23 Start-up and Calibration Steps 5-11 are shown in the figure below: Fig. 15 Calibration Cap Sequence of Events PrimaX® IR...

  • Page 24: Hart Calibration Procedure

    HART hand-held communicator is compatible with the area classification. This hand-held HART communicator must be HART revision 7.0 compliant and can be obtained from a HART authorised supplier. See the PrimaX IR HART specification found on the product CD for the calibration command definitions or visit the MSA website at www.MSAsafety.com.
  • Page 25 ALWAYS be removed For applications where access to the HART signal is needed in hazardous areas, MSA provides the HART Module as shown in Fig. 18...

  • Page 26: Calibration Kits

    2.5% Methane 10028032 57% LEL 4.4%vol Propane 0.6% Propane 10028034 35% LEL 1.7%vol Zero Gas 100% Nitrogen 10028030 0% LEL * Conversion defined by IEC60079-20-1:2012 See the PrimaX IR section of www.MSAsafety.com for additional PrimaX IR calibration gases. PrimaX® IR...

  • Page 27: Maintenance

    There are NO field repairable internal components for this device. Do not attempt to open the enclosure of the device, it is factory sealed for protection from hazardous environments. If the troubleshooting guides in chapters 5.2 and 5.3 do not alleviate the problem, contact your MSA representative. Troubleshooting The 4-20 mA output provides a limited set of information for diagnostic purposes.

  • Page 28: Hart Information For Troubleshooting

    All available status bytes are defined in the PrimaX IR HART Specification found on the product CD. Refer to this document for complete HART command and status definitions. Use the HART digital inter- face to query the unit to provide additional troubleshooting information.
  • Page 29 Maintenance Remove the environmental or flow cap. Fig. 19 Remove Environmental Guard Place an opaque object (piece of paper, two fingers, etc.) between the light source window and the mirror to completely obscure the light path for two to three seconds (see Fig. 20). If the opaque object is left in the light path for longer than 10 seconds, an Obscuration fault will be set on the mA output (see chapter 4.1).

  • Page 30: Environmental Guard Cleaning

    Maintenance Although both windows are made of a highly durable material that is not easily scratched, avoid exces- sive pressure when cleaning them. Clean, cotton tipped applicators are recommended to remove material collected on the windows. Use a dry applicator or one moistened with distilled water to wipe the window and remove dust. Use an additional clean, dry applicator to remove any residual water.

  • Page 31: Calibration Cap Cleaning Procedure

    Maintenance Fig. 21 Environmental Guard Cleaning Calibration Cap Cleaning Procedure In general, the calibration cap should not require any maintenance. However, if it is used in extremely dirty or solvent based environments, it may be necessary to clean the light sensor if the calibration cap performance is not adequate.

  • Page 32: Technical Data

    Technical Data Technical Data MEASURING RANGE 0-100 % LEL OPERATING TEMPERATURE -50 to +80 °C Sensor RANGE (-58 to +176 °F) -30 to +60 °C Calibration Cap (-22 to +140 °F) STORAGE TEMPERATURE -40 to +80 °C Sensor RANGE (-40 to +176 °F) Zero Drift <...

  • Page 33: Accessories

    Accessories Accessories The following accessories are available for the device: Description Part No. Calibration cap 10111874 Fig. 1 Aluminum junction box kit 10117607 – NPT Chapter 3.1 (Includes mounting bracket) 10117606 – M25 316 stainless steel junction box kit 10117608 – NPT Fig.

  • Page 34: Sunshield

    Accessories Using the flow through adapter can extend the response time, depending on the gas flow rate and system design. Sunshield The sunshield is a 316 stainless steel plate that protects the sensor from direct sunlight and from excessive temperature rise. Fig.

  • Page 35: Hart Module

    The HART Module is a 316 Stainless Steel enclosure that provides a hazardous area approved HART port for access to the HART signal. The PrimaX IR can be mounted to this module using an available port and all applicable facility wiring rules from Section apply to wiring the HART Module.
  • Page 36 Accessories Fig. 27 Remote cal/ Insect screen inserts For remote calibrations the HART Remote Calibration Kit is also recommended (P/N 10122783). The components of this kit are shown below. Fig. 28 Remote HART Calibration kit PrimaX® IR...

  • Page 37: Approvals

    Approvals Approvals Marking, Certificates and Approvals According to the Directive 2014/34/EU (ATEX) Prima X IR MSA -The Safety Company Manufacturer: 1000 Cranberry Woods Drive Cranberry Township, PA 16066 USA Product: PrimaX IR EN 60079-0:2012 + A11:2013, EN 60079-1:2014, EN 60079-...
  • Page 38 Maintenance or repair for protection "d" equipment is only allowed by the manufacturer. • The gas monitor PrimaX IR is equipped with a tapered NPT ¾" thread or a metric M25 x 1,5 thread for mounting to a connection enclosure of protection type increased safety "e" or protection type flameproof enclosure "d".
  • Page 39 Mine Safety Appliances Company Manufacturer: 1000 Cranberry Woods Drive Cranberry Township, PA 16066 USA Product: PrimaX IR Calibration Cap Type of protection: EN 60079-0:2018, EN 60079-11:2012 II 2 G Ex ia IIC T4 Gb Marking: -30°C ≤ Ta ≤ +60°C...
  • Page 40 EN 60079-0:2012 + A11:2013, EN 60079-1:2014, Standards: EN 60079-7:2007, EN 60079-31:2014 Performance: See MSA Controller together with sensor series 47K Marking: Cable gland: NPT ¾” or M25 x 1,5 II 2G Ex db IIC T4/T6 Gb II 2G Ex e IIC T4/T6 Gb II 2D Ex tb IIIB T85°C / T135°C Db IP6X...

  • Page 41: Special Conditions For The Safe Use According To Atex And Sil

    Special conditions for the safe use according to ATEX and SIL applications The PrimaX IR Gas Monitor has been subjected to rigorous reliability and functional safety assess- ments, which have culminated in the gas monitor being certified to IEC 61508, EN 50271 by TÜV Rheinland Industrie Service GmbH.
  • Page 42 Approvals Possible structures and acquirable SILs The following table shows, which structure has to be selected, to fulfil the requirements of a special SIL. LDM = Low Demand Mode HDM = High Demand or Continuous Mode SIL1 SIL2 SIL3 Structure 1oo1 Structure 1oo2 Depending on the selected configuration and the sensor version, the following safety-relevant param- eters have to be considered while implementing the safety loop:...
  • Page 43 Approvals PrimaX® IR...
  • Page 44 For local MSA contacts, please visit us at MSAsafety.com...
