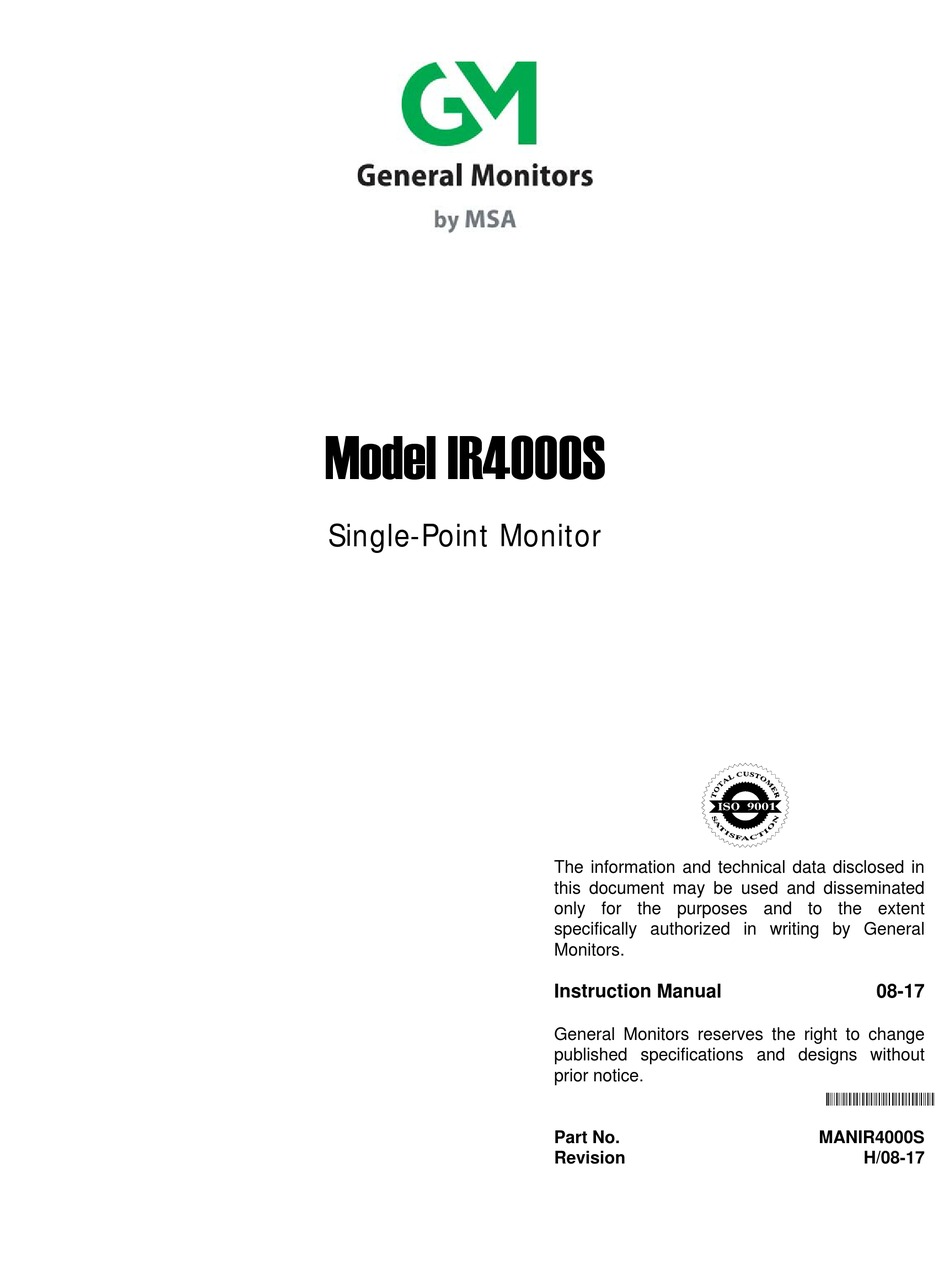

Model IR4000S
Single-Point Monitor
The information and technical data disclosed in
this document may be used and disseminated
only for the purposes and to the extent
specifically authorized in writing by General
Monitors.
Instruction Manual
08-17
General Monitors reserves the right to change
published specifications and designs without
prior notice.
MANIR4000S
Part No.
MANIR4000S
Revision
H/08-17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the General Monitors IR4000S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSA General Monitors IR4000S

Summary of Contents for MSA General Monitors IR4000S

  • Page 1 Model IR4000S Single-Point Monitor The information and technical data disclosed in this document may be used and disseminated only for the purposes and to the extent specifically authorized in writing by General Monitors. Instruction Manual 08-17 General Monitors reserves the right to change published specifications and designs without prior notice.
  • Page 2 Model IR4000S This page intentionally left blank...

  • Page 3: Table Of Contents

    Model IR4000S Table of Contents QUICK-START GUIDE ......................... 1 Cabling and Wiring ..........................1 Applying Power ............................4 1.0 INTRODUCTION ........................5 Protection for Life ........................5 Special Cautions and Warnings ....................5 Installation, Operation, and Maintenance .................. 5 2.0 PRODUCT DESCRIPTION ..................... 6 IR4000S Monitor ........................
  • Page 4 Model IR4000S Table of Figures Figure 1: IR4000S Outline and Mounting Dimensions, in inches [mm] ............1 Figure 2: IR4000S Terminal Block Connectors ..................... 3 Figure 3: IR4000S Single-Point Monitor ....................... 6 Figure 6. IR4000S with IR400 Mounting Dimensions in inches [mm] ............8 Figure 4: IR4000S Outline and Mounting Dimensions, in inches [mm] ............

  • Page 5: Quick-Start Guide

    Model IR4000S Quick-Start Guide Special tools:  5mm Allen wrench for cover (included with unit)  0.1” flat-head screwdriver for wiring (included with unit)  Adjustable wrench for conduit or cable gland connections (not included). Mounting: Allow convenient access to the front panel display and magnet switch input. Leave sufficient room to attach cabling.
  • Page 6 Model IR4000S Cabling and Wiring WARNING: Seal conduit entries per Class I hazardous location requirements. Under NO circumstances should equipment be connected or disconnected when under power. Equipment damaged in this manner is not covered under warranty. CAUTION: Do not use a sealant that contains acetic acid. Use precautions to avoid equipment damage by static electricity.

  • Page 7: Figure 2: Ir4000S Terminal Block Connectors

    Model IR4000S Detector Host Relay Figure 2: IR4000S Terminal Block Connectors TB1 - Detector Terminal TB2 - HOST Terminal TB 3 - Relay Terminal Pin # SIGNAL Pin # SIGNAL Pin # DE-ENERGIZED ENERGIZED 4-20 mA out ALARM-NC ALARM-NO 4-20 mA IN CAL IN IR400 MOD - ALARM-C...

  • Page 8: Applying Power

    Model IR4000S Applying Power Before applying power for the first time, check the following:  Verify that the junction box lid is securely installed, unless the area has been declassified.  Inhibit any external devices, such as Trip Amplifiers, PLC devices or DCS systems.

  • Page 9: Introduction

    Model IR4000S 1.0 Introduction 1.1 Protection for Life General Monitors’ mission is to benefit society by providing solutions through industry- leading safety products, services and systems that save lives and protect capital resources from the dangers of hazardous flames, gases and vapors. The safety products you have purchased should be handled carefully and installed, calibrated and maintained in accordance with this instruction manual.

  • Page 10: Product Description

    Model IR4000S 2.0 Product Description Figure 3: IR4000S Single-Point Monitor NOTE: Nameplate is for reference purposes only and may not contain up-to-date information. 2.1 IR4000S Monitor The Model IR4000S Single-Point Monitor is a display and user interface for the Model IR400 point IR gas detector.

  • Page 11: Installation

    Model IR4000S 3.0 Installation CAUTION: The IR4000S Single-Point Monitor contains components that can be damaged by static electricity. Special care must be taken when wiring the system to ensure that only the connection points are touched. Installation and Maintenance must be carried out by suitably skilled and competent personnel only.

  • Page 12: Mounting

    Model IR4000S 3.2 Mounting Allow convenient access to the monitor in order to input local configurations and calibrate via the magnetic switch on the cover. Leave sufficient room to attach cabling. Keep cable run distances below specified limits. Although the Model IR4000S is RFI-resistant, where possible mount it away from heavy power cabling, radio transmitters, or similar equipment.

  • Page 13: Figure 4: Ir4000S Outline And Mounting Dimensions, In Inches [Mm]

    Model IR4000S MODEL IR4000M P/N 32580 0518 0539 ALARM LED CALIBRATION PROCEDURE 1. HAVE DETECTOR IN CLEAN AIR 2. APPLY MAGNET, AND WAIT FOR "AC" ON DISPLAY 3. REMOVE MAGNET, WHEN d# IS DISPLAYED, APPLY MAGNET TO SELECT DETECTOR # 4.

  • Page 14: Cabling And Wiring

    Model IR4000S 3.3 Cabling and Wiring 3.3.1 Cabling Safety Notices CAUTION: The IR4000S contains components that can be damaged by static electricity. Special care must be taken when wiring the system to ensure that only the connection points are touched. WARNING: Under NO circumstances should equipment be connected or disconnected when under power.

  • Page 15: Figure 5: Ir4000S Terminal Block Connectors

    Model IR4000S control room equipment (HOST). You must remove the cover from the IR4000S enclosure to access these connectors. The inside of the cover includes a label that lists the function of each connector location. WARNING: For safety, ground cabling must always be connected first, before other cabling is connected.

  • Page 16: Figure 6: Push Type Terminal

    Model IR4000S CAUTION: Contact with PCB components should be avoided to prevent damage by static electricity. All wire connections are made to the terminal blocks. NOTE: It is recommended that you use three-wire shielded cable to make power and signal connections to the Model IR4000S. The push terminal blocks accept 14 AWG to 20 AWG stranded or solid wire.

  • Page 17: Figure 8: Connecting Ir400 Signal Wires To The Tb1 Block

    Model IR4000S  Modbus (MOD), Analog (mA), CAL and relay wires (RLY, ALARM, WARN, and FAULT)  24 VDC power NOTE: If the 4-20 mA Out (TB-2, pin 1) is not being used, a jumper must be placed between TB-2, pin 1 and a COM pin, such as TB-2, pin 8 to complete the AO circuit.

  • Page 18: Figure 9: Relay Protection For Dc And Ac Loads

    Model IR4000S Common Common Normally Open Normally Closed Normally Open Fault (Not Applicable: Common Fault Relay Always Normally Closed Energized) Table 2: TB3 Relay Contacts Energized/De-Energized Settings WARNING: Relay contacts must be protected against transient and over-voltage conditions (see Figure 10). Figure 10: Relay Protection for DC and AC Loads European Union (EU) Approved Applications: The ALARM relay contact ratings are 8 A, 30 VRMS / 42.4 V peak or 8 A @ 30 VDC resistive max.

  • Page 19: Applying Power And Starting Operation

    Model IR4000S 3.4 Applying Power and Starting Operation Once the mounting, cabling and alarm relay installation is complete, your IR400/IR4000S detection system is ready to begin the power-on sequence. Please review this section carefully before powering on your GM standalone detectors or your IR400/IR4000S Monitor system.
  • Page 20 Model IR4000S 3.4.2 Start-up Process for an IR4000S System NOTE: Powering on and off of the IR4000S and IR400 units is controlled from the external power supply; refer to the power supply manual for instructions. If you have any problems in the start-up or testing of the detector system, please refer to Section 6.0 “Troubleshooting”...

  • Page 21: Operation And Configuration

    Model IR4000S 4.0 Operation and Configuration 4.1 Overview The Model IR4000S Single-Point Monitor front panel includes a digital display, Alarm and Warn indicators. The panel displays a set of menu options that provide the user with the most flexible detector system possible. MODEL IR4000 P/N 31840 Alarm Indicator...

  • Page 22: Figure 11: Ir4000S Menu Structure

    Model IR4000S Figure 12: IR4000S Menu Structure...

  • Page 23: Gas Checking The Ir400

    Model IR4000S 4.2 Gas Checking the IR400 You can ‘gas check’ an IR400 unit to verify response without tripping relays. During gas check mode, the Alarm and Warn relays are disabled. CAUTION – The analog output from the IR4000S is directly connected to the IR400 being used and this analog output will indicate gas present when the IR4000S is in Gas Check Mode.

  • Page 24: Calibrating The Ir400

    Model IR4000S 4.4 Calibrating the IR400 You can calibrate the IR400 which is connected to the IR4000S unit in order to make sure the LEL measurements are accurate. During calibration, the IR400 analog output is 1.5 mA, in order to disable the Alarm and Warn relays. Equipment required: Calibration cup, tubing, calibration gas tank with regulator.

  • Page 25: Setup

    Model IR4000S NOTE: Once gas has been applied, it is not possible to stop calibration. If no gas is applied for 6 minutes after calibration is selected from the IR4000S menus, the detector automatically reverts to a fault condition. A fault also occurs if the gas is not removed within 6 minutes from the beginning of calibration.

  • Page 26: Resetting The Relays (Rst )

    Model IR4000S  The second relay setting is La or nL for latching or non-latching, respectively. Apply and remove the magnet to select La or nL.  The third relay setting is the % LEL setpoint. Available Lo setpoints are from 5 to the Hi setpoint in 5% LEL increments.

  • Page 27: Maintenance

    Model IR4000S 5.0 Maintenance WARNING: Disconnect or inhibit external devices such as trip amplifiers, PLC’s, or DCS systems before performing any maintenance. NOTE: The system’s full two-year warranty will be voided if customer personnel or third parties damage the system during repair attempts or maintenance activities. 5.1 Developing a Maintenance Schedule Maintenance requirements will vary with each installation;...

  • Page 28: Storage

    Model IR4000S There are four entry holes in the IR4000S housing. These holes can be used to attach an IR400 or IR2100 unit directly, as well as for wiring conduits to alarm relays and control room equipment. Each hole is tapped for ¾” NPT threads. If a particular entry hole is not used, it must be plugged during operation in the field.

  • Page 29: Troubleshooting

    Model IR4000S 6.0 Troubleshooting CAUTION: Component level repair must be undertaken either by General Monitors personnel, or by competent, authorized service engineers. SMT PCB repair shall only be performed at a General Monitors facility. Failure to comply with this requirement will invalidate the warranty.
  • Page 30 Model IR4000S ACTION – Purge the detector with clean air or nitrogen, to remove any residual gas from the gas check. Verify that the area around the detector is clear of gas and that all gas check sources have been shut off. When gas is no longer present, the fault will clear. F3 –Detector Non-Critical Fault Indicates the IR400 or IR2100 detector requires attention such as cleaning the windows.
  • Page 31 Model IR4000S F8 – Fail to start zero Indicates that the IR4000S does not detect the proper mA input of 1.5 mA from the IR400. ACTION – Check the wiring between the IR400 and IR4000S, particularly the connection of the IR400 CAL wire to CAL IN at TB1-2.

  • Page 32: Modbus Interface

    Model IR4000S 7.0 Modbus Interface The IR4000S does not have a built in Modbus interface. The Modbus signals from the single Modbus interface on the connected detector (either an IR400 or IR2100) that is connected to the IR4000S is passed through the IR4000S and made available as MOD + and MOD –...

  • Page 33: Customer Support

    Model IR4000S 8.0 Customer Support General Monitors provides extensive documentation, white papers and product literature for its complete selection of safety products. A selection of these documents are available online at the General Monitors website at http://www.generalmonitors.com. Contacting Customer Support Worldwide Customer Service and Technical Support are available by calling one of several General Monitors offices, listed in the following table: General Monitors Offices...

  • Page 34: Appendix

    Model IR4000S 9.0 Appendix 9.1 Warranty General Monitors warrants the Model IR4000S to be free from defects in workmanship or material under normal use and service within two (2) years from the date of shipment. General Monitors will repair or replace without charge any such defective equipment found to be defective during the warranty period.

  • Page 35: Specifications

    Model IR4000S 9.2 Specifications 9.2.1 Agency Approvals    ATEX and IECEx  CE Marking  SIL 2 suitable  HART Registered FM requires the following statement: This Approval does not include or imply Approval of apparatus to which the subject instrumentation may be connected. In order to maintain an FM Approved system, the apparatus to which this instrument is connected, must also be Approved by FM Approvals.

  • Page 36: Table 3: 24Vdc Cable Lengths

    Model IR4000S Max. Current at 24 VDC (mA) Display Accuracy (%) ±1 Relay Ratings 8 A @ 250 V 8 A @ 30 V Analog Input Input Range (mA) 0 – 21.7 Load 500 Ohms max Series resistance (Ohms) 91±1 Display Response: For milliampere input from 4 mA through 20 mA: % Display = 100% x (mA input –...
  • Page 37 Model IR4000S 9.2.5 Environmental Specifications Temperature Range Operating -40°F to 167°F (-40°C to +75°C) Storage -76°F to 185°F (-60°C to +85°C) Humidity Range 5% to 100% RH non-condensing 9.2.6 Modbus Interface The Model IR4000S does not have built-in serial communications but can pass the Modbus signals from the attached detector to the control room.

  • Page 38: Ordering Information

    Model IR4000S 9.3 Ordering Information IR4000S System Components IR4000S Model IR4000S Single Point Monitor MANIR4000S Model IR4000S Instruction Manual IR400 Model IR400 Combustible Gas Detector MANIR400 Model IR400 Combustible Gas Detector Manual IR4000S Spare Parts and Accessories To order spare parts and/or accessories, please contact your nearest General Monitors Representative or General Monitors directly, with the following information: 1.
  • Page 39 Model IR4000S ADDENDUM Product Disposal Considerations This product may contain hazardous and/or toxic substances. EU Member states shall dispose according to WEEE regulations. For further General Monitors’ product WEEE disposal information please visit: www.MSAsafety.com/detection All other countries or states: please dispose of in accordance with existing federal, state and local environmental control regulations.
