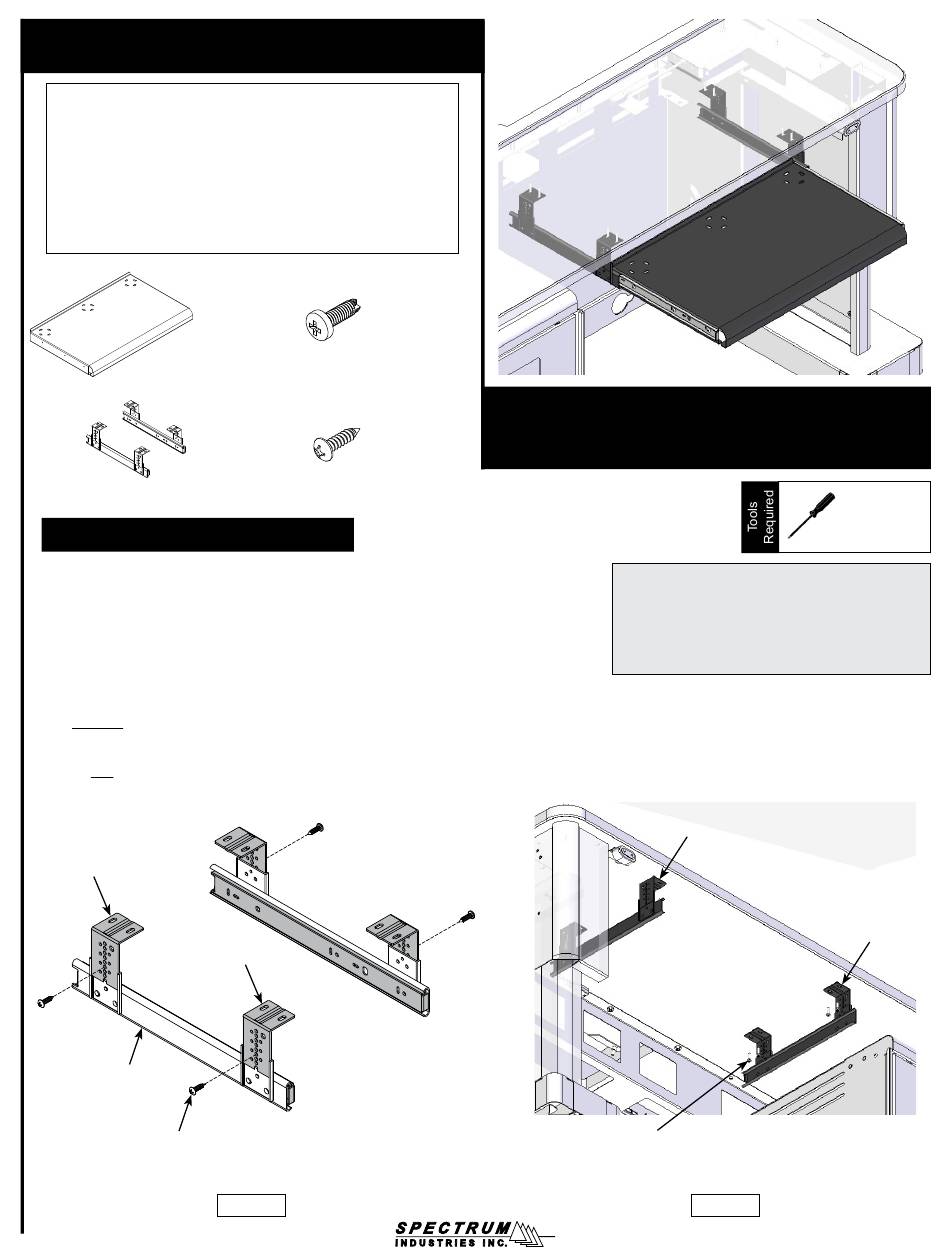

Assembly Instructions
Before you begin, please make sure all parts and proper quantities
are included. Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regarding damage, to
purchase parts or accessories, or if you have any questions, please
contact us at:
www.spectrumfurniture.com
715-723-6750, 800-235-1262
Thank you for purchasing Spectrum products!
(1) 0118160
Keyboard
Tray
(1) 050092
12" Slide set
1. Assemble Slide Brackets
1. Attach the 'L' brackets to each outer slide with screws (included with slides).
The brackets need to be attached "inboard" (facing each other). Figure 1A.
Multiple height positions / mounting holes are available with the brackets-use
the same hole position on all 4 brackets.
2. Tighten the bracket screws securely.
3. Separate the inner from the outer slides using the black levers.
4. Raise the lectern up all the way and unplug the power cord.
5. Determine which side of the lectern you want the keyboard tray installed (left
or right-side). The tray should be installed under the worksurface on the side
opposite the rack cabinet using the pre-drilled worksurface holes.
6. Attach each outer slide ('L' brackets) to the worksurface using (4) #8 x 5/8"
PHSM screws and pre-drilled worksurface holes. Tighten the screws completely
on one slide only-leave the screws other slide slightly loose. Figure 1B.
'L' Bracket
'L' Bracket
Outer slide
Screw
(included with slides)
Important
(6) 0100167
8-32 x 1/2" PH
thread-cutting
screw
(8) 037542
#8 x 5/8" PHSM
Figure 1A

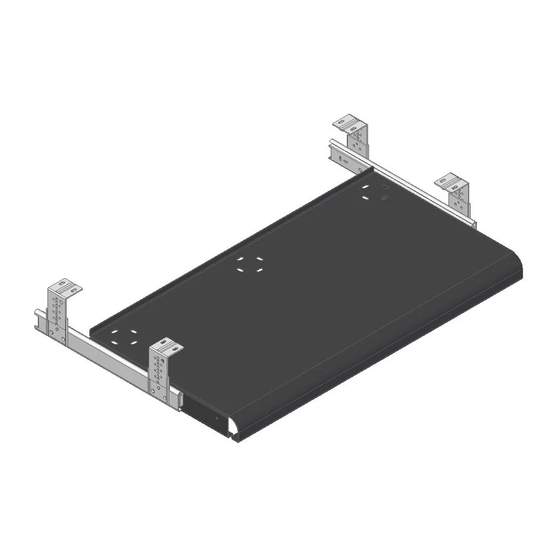

Keyboard Tray for Freedom XRS Elite
55334
Note: The keyboard tray may protrude up to
a maximum of 3.9" [10 cm] below the worksur-
face. If the lectern is used for ADA use, a higher
adjusted worksurface will be necessary to provide
ADA leg clearance. The 'L' brackets can also be
adjusted to provide different keyboard heights.
Outer slide
XRS Elite
worksurface
#8 x 5/8" PHSM
(4 per slide)
Phillips
Screwdriver
Outer slide
Figure 1B
0118905 Page 1 of 2
™
Advertisement
Related Manuals for Spectrum Industries XRS Elite 55334
Summary of Contents for Spectrum Industries XRS Elite 55334
- Page 1 Assembly Instructions Important Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be reported within 15 days of receipt. To report information regarding damage, to purchase parts or accessories, or if you have any questions, please contact us at: www.spectrumfurniture.com 715-723-6750, 800-235-1262...
- Page 2 2. Attach Inner Slides to Tray 1. Attach each inner left and right slide to the keyboard tray with (3) 8-32 x 1/2” PH thread-cutting screws and tighten securely. Figure 2. Inner slide Keyboard Tray 8-32 x 1/2” PH thread-cutting screw Figure 2 (3 required per slide) 3.
