Homestyles Flexsteel 20 05525 0088 Assembly Instructions

Homestyles Flexsteel 20 05525 0088 Assembly Instructions

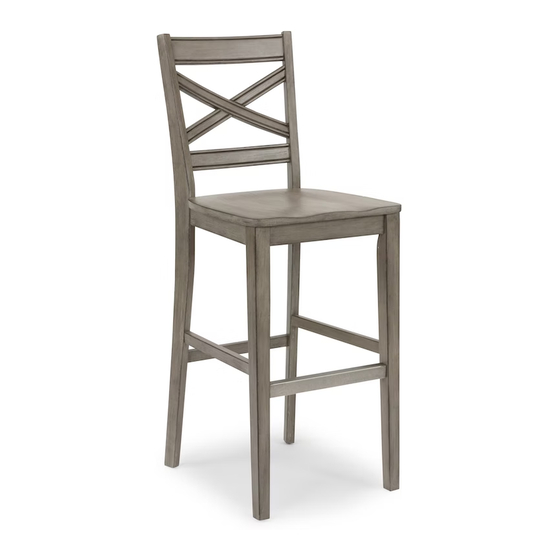

Bar stool

Advertisement

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

A.
Seat
1 pc.
E.
Side Stretcher
1 pc.

Hardware List

Hex Wrench
1 pc.
Small Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05525 0088
Bar Stool
B.
Leg
1 pc.
F.
Side Stretcher
1 pc.
M3.5x40
Wood Screw
6 pcs. (+1 extra)
M6x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
C.
Leg
1 pc.
G.
Front Stretcher
1 pc.
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Back Frame
1 pc.
Flat Washer
11 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flexsteel 20 05525 0088 and is the answer not in the manual?

Questions and answers

Summary of Contents for Homestyles Flexsteel 20 05525 0088

  • Page 1 Small Wrench Head Cap Bolt (short) Spring Washer Head Cap Bolt (long) 1 pc. 3 pcs. (+1 extra) 4 pcs. (+1 extra) 11 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened in the future.
  • Page 3 Assembly Instructions 3/3 Wood Screw Flat Washer Spring Washer Head Cap Bolt (short) Flat Washer Spring Washer Head Cap Bolt (long) STEP 2 Attach Back Frame (D) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short), Head Cap Bolts (long) and Wood Screws, tightening bolts only halfway. (See Figures 4 and 5) Tighten all Head Cap Bolts used in Steps 1 and 2.
  • Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
