Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
Small Hex Wrench
1 pc.
1 pc.
Tool(s) required for assembly: Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05525 0031

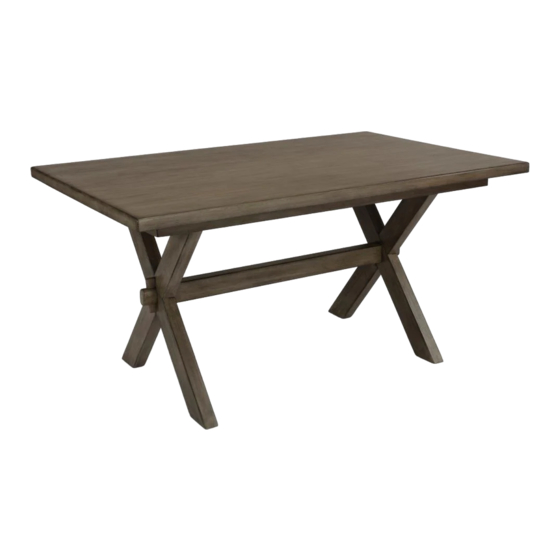

Dining Table
A.
Top
1 pc.
C.
Stretcher
1 pc.
M6x20
Head Cap Bolt
24 pcs. (+1 extra)
Spring Washer
Flat Washer
24 pcs. (+1 extra)
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
B.
Leg
4 pcs.
D.
Peg
2 pcs.
Plate
4 pcs.
