Ruckus Wireless ZoneFlex 7025 Quick Setup Manual

ZoneFlex 7025
Multimedia Wi-Fi Wall Switch
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions
on how to set up your Ruckus Wireless ZoneFlex 7025
Multimedia Wi-Fi Wall Switch. After completing the steps
described in this Guide, you will be able to access the Wi-Fi
Wall Switch and begin providing wired and wireless network
access to users.
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• Release Notes are available at
http://support.ruckuswireless.com/documents
• User Guides are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com/
P C
ACKAGE ONTENTS

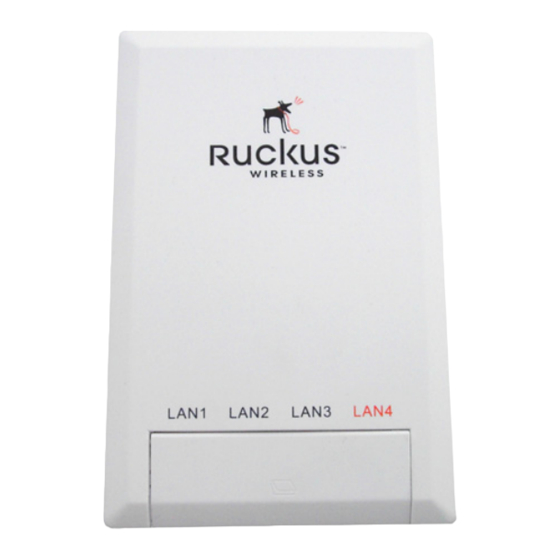

• ZoneFlex 7025 Wi-Fi Wall Switch (Access Point)
• Mounting bracket with two (2) mounting screws
• Warranty statement
• Software license agreement
• Regulatory flyer
• Registration card
• This Quick Setup Guide
S R
ETUP EQUIREMENTS
• A 6mm Phillips screwdriver
• A computer running Windows XP, Vista or 7.
• A standard US or EU-style wall outlet box, with an Ethernet
cable run through the wall from your LAN to the outlet box.
• One of the following:
• An IEEE 802.3af/at-compliant PoE switch.
• An IEEE 802.3af/at-compliant PoE injector.
\
WARNING!
DO NOT connect a PoE injector to any of the four front
ports, as this can seriously damage the device. PoE in
power supply should only be connected to the
LAN 5/Uplink
IMPORTANT!
If the AP is deployed with ZoneDirector, follow the
ZoneDirector Quick Setup Guide, and connect the AP to
your Ethernet network.
.
.
S 1: P
TEP
.
S
ETUP
1
On your Windows computer, open the Network Connections
.
(or Network and Dial-up Connections) control panel accord-
ing to how the Start menu is set up:
Win XP: Start
Win 7: Start > Control Panel > Network and Shar-
ing Center > Change Adapter Settings
2 When the Network Connections window appears, right-
click the icon for
select Properties
IMPORTANT!
Make sure you do not open the
the wireless network.
3 When the Local Area Connection Properties dialog box
appears, select
scrolling list, and then click
The TCP/IP Properties dialog box appers.
Published November 2010, Part Number 800-70295-001 Rev C
PoE In
port on the rear of the device.
EU version US version
Y C AP
REPARE OUR OMPUTER FOR
> Settings > Network Connections
Local Area Connection
, and then
.
Properties
dialog box for
Internet Protocol (TCP/IP) from the
Properties
.
Copyright © 2010 Ruckus Wireless, Inc.
IMPORTANT!
Write down all of the currently active settings so you can
restore your computer to its original configuration later
(when this process is complete).
4 Select Use the following IP address
already selected), and then make the following entries:
• IP address : 192.168.0.22 (or any address in the
192.168.0.x network--other than 192.168.0.1, which is
in use by the AP)
Subnet mask
• : 255.255.255.0
Default gateway
• : 192.168.0.1
Alternate DNS server
Leave the field empty.
5 Click OK to save your changes, and exit the TCP/IP Prop-
erties dialog box, and the Local Area Connection Proper-
ties dialog box. Your changes are put into effect
immediately.
S 2: C AP Y
TEP ONNECT THE TO OUR
1
Remove the AP from its packaging and place it near your
computer.
2 Connect one end of an Ethernet cable to the
LAN 5/Uplink
port on the rear of the AP, and connect
the other end to a PoE switch or the
the PoE injector.
3 Using another Ethernet cable, connect one end to your
computer's network port, and connect the other end to
another port on the PoE switch or to the
work
port on the PoE injector.
4 Provide power to the PoE injector/switch.
5 Verify that the Power and LAN 5 LEDs are steady green.
S 3: L I AP
TEP OG NTO THE
1 On your computer, open a Web browser window.
2 In the browser, type this URL to connect to the AP:
https://192.168.0.1
3 Press <Enter> to initiate the connection. When a security
OK/Yes
alert dialog box appears, click
4 When the Ruckus Wireless Admin login page appears,
enter the following:
• Username : super
• Password : sp-admin
5 Click Login .
option (if it is not
C
OMPUTER
PoE In
Power Out port on
Data In/Net-
to proceed.
