Ruckus Wireless ICX 8100 Quick Setup Manual

RUCKUS ICX 8100 Switch
Quick Setup Guide
The RUCKUS ICX 8100 Quick Setup Guide provides instructions for a user to
get started with ICX 8100-C08PF, ICX 8100-24, ICX 8100-24P, ICX 8100-48,
and ICX 8100-48P switches.
For more information on advanced configurations and management
options, refer to RUCKUS ICX FastIron user documentation available at:
https://support.ruckuswireless.com/documents.
Package Contents
The RUCKUS ICX 8100 shipping box includes all of the following items:
• The ICX 8100 device
• An accessory kit containing the following items:
– Rack mounting kit. The kit containing one set of eight and one set of
six sink-head screws (24-port and 48-port models only)
– Two-post rack-mounting kit. The kit containing four rack-mounting
screws and four cage nuts (included only with 24-port and 48-port
models)
– Wall mounting kit containing two wall-mount screws and two plastic
anchors (ICX 8100-C0PF model)
– One power cord clip
– China-RoHS Hazardous/Toxic Substance statement
– Read Me First document
Device Overview
RUCKUS ICX 8100 devices offer 8, 24, or 48 1-GbE copper ports that
support 10/100/1000 Mbps operation and two or four SFP ports that
support 1-Gbps operation. ICX 8100-C08PF, ICX 8100-24P, ICX 8100-48P
models support IEEE 802.3bt Type 2 Class 4 PoE (up to 30W) per port.

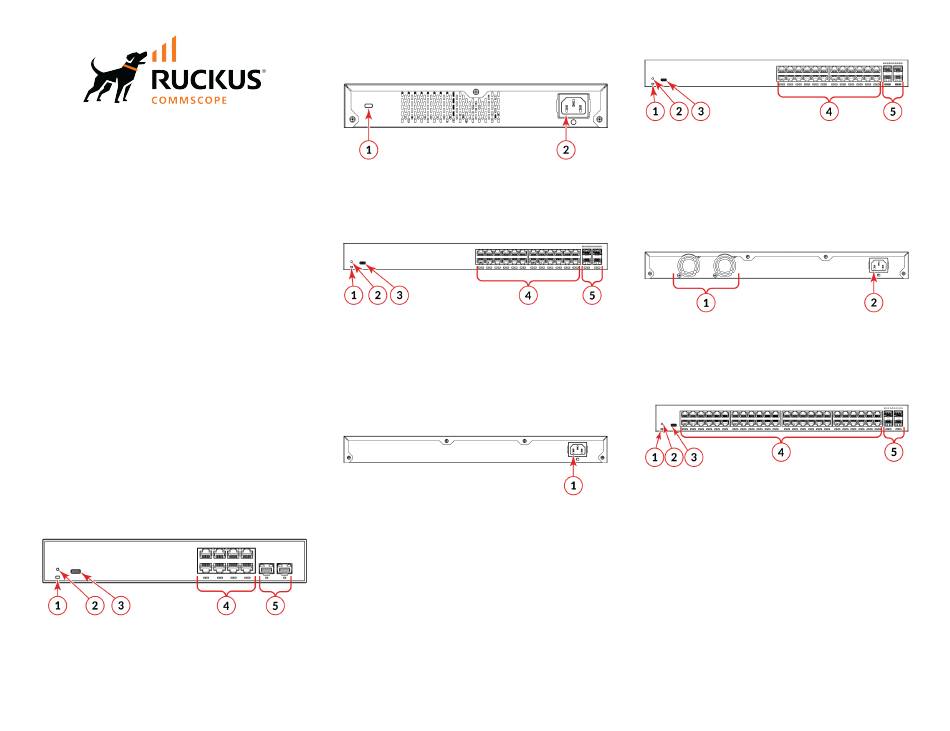

FIGURE 1 Port-side View of ICX 8100-C08PF
1. PWR LED
2. RESET button
3. Type-C USB console port
4. Slot 1: 10/100/1000 Mbps RJ-45 ports
Copyright © 2025 CommScope, Inc. All rights reserved.
Published 28 February 2025, Part Number 53-1005848-01
5. Slot 2: 1 Gbps SFP uplink ports
FIGURE 2 Nonport-side View of ICX 8100-C08PF
1. Kensington security slot
2. AC power supply socket
FIGURE 3 Port-side View of ICX 8100-24
1. PWR LED
2. RESET button
3. Type-C USB console port
4. Slot 1: 10/100/1000 Mbps RJ-45 ports
5. Slot 2: 1 Gbps SFP uplink ports
FIGURE 4 Nonport-side View of ICX 8100-24
1. AC power supply socket
FIGURE 5 Port-side View of ICX 8100-24P
1. PWR LED
2. RESET button
3. Type-C USB console port
4. Slot 1: 10/100/1000 Mbps RJ-45 PoE ports
5. Slot 2: 1 Gbps SFP uplink ports
FIGURE 6 Nonport-side View of ICX 8100-24P
1. Fan 1 and Fan 2
2. AC power supply socket
FIGURE 7 Port-side View of ICX 8100-48
1. PWR LED
2. RESET button
3. Type-C USB console port
4. Slot 1: 10/100/1000 Mbps RJ-45 ports
5. Slot 2: 1 Gbps SFP uplink ports
Page 1 of 3
