Ruckus Wireless ICX 7550 Quick Setup Manual

RUCKUS ICX 7550 Switch
Quick Setup Guide
The RUCKUS ICX 7550 Quick Setup Guide provides instructions for a user to
get started with ICX 7550-24, ICX 7550-24F, ICX 7550-24P, ICX 7550-24XZP,
ICX 7550-24ZP, ICX 7550-48, ICX 7550-48F, ICX 7550-48P, and ICX
7550-48ZP models.
The ICX 7550-24, ICX 7550-24P, ICX 7550-48, ICX 7550-48P, ICX 7550-24ZP,
ICX 7550-48ZP, ICX 7550-24F, and ICX 7550-48F models are supported from
FastIron Release 8.0.95 onwards and the ICX 7550-24XZP model is
supported in FastIron Release 10.0.20b onwards.
For more information on advanced configurations and management
options, refer to RUCKUS ICX FastIron user documentation available at:
https://support.ruckuswireless.com/documents.
Package Contents
The RUCKUS ICX 7550 shipping box includes all of the following items:
• The RUCKUS ICX 7550 device.
• An accessory kit containing the following items:
– Rack mounting kit containing two L-shaped mounting brackets and
one set of eight sink-head screws
– Two-post rack kit containing four rack-mounting screws and four cage
nuts
– One grounding kit, containing one grounding lug and one grounding
screw
– Power:
› "W" SKUs: No power cords. An example of a "W" SKU is
"ICX7550W48ZP-E2".
› Non-"W" SKUs: Two US power cords and two cord retaining
clamps. An example of a "non-W" SKU is "ICX7550-48ZP-E2".
– One RJ45-to-RJ45 console cable
– One RJ45-to-DB9 adapter
– Installed filler panels for the power supply slot, expansion module
slots, or fan tray slot where such modules are not supplied for the
switch
– China-RoHS Hazardous/Toxic Substance statement
– Read Me First document
NOTE: A stacking cable is not included in the shipping carton and it
must be ordered separately.
Device Overview
The ICX 7550 switch models feature RJ-45 ports with 1000BASE-T/Multi-
GiG Ethernet and SFP/SFP+ ports for downlink connections, two stacking
ports supporting 40 Gbps or 100 Gbps, a dedicated 1-GbE out-of-band
management Ethernet port, and QSFP28 ports for 100-GbE and 40-GbE
transceivers with 4x25-GbE and 4x10-GbE breakout support (from FastIron
release 09.0.00). It also includes swappable redundant power supplies and
Copyright © 2025 CommScope, Inc. All rights reserved.
Published 28 March 2025, Part Number 53-1005849-01
fan assemblies, supports uplink port slot modules, and has a standard 1U
chassis height with 17-inch rack mountability.The RUCKUS ICX 7550 Series
switches support up to 2 redundant hot swappable load sharing power
supplies (AC or DC), up to 3 hot swappable fans (exhaust or intake airflow),
one RJ-45 Ethernet port for out of band network management, one USB
Type-C port for console management, one RJ-45 port for serial console
management, and one USB port for external file storage.

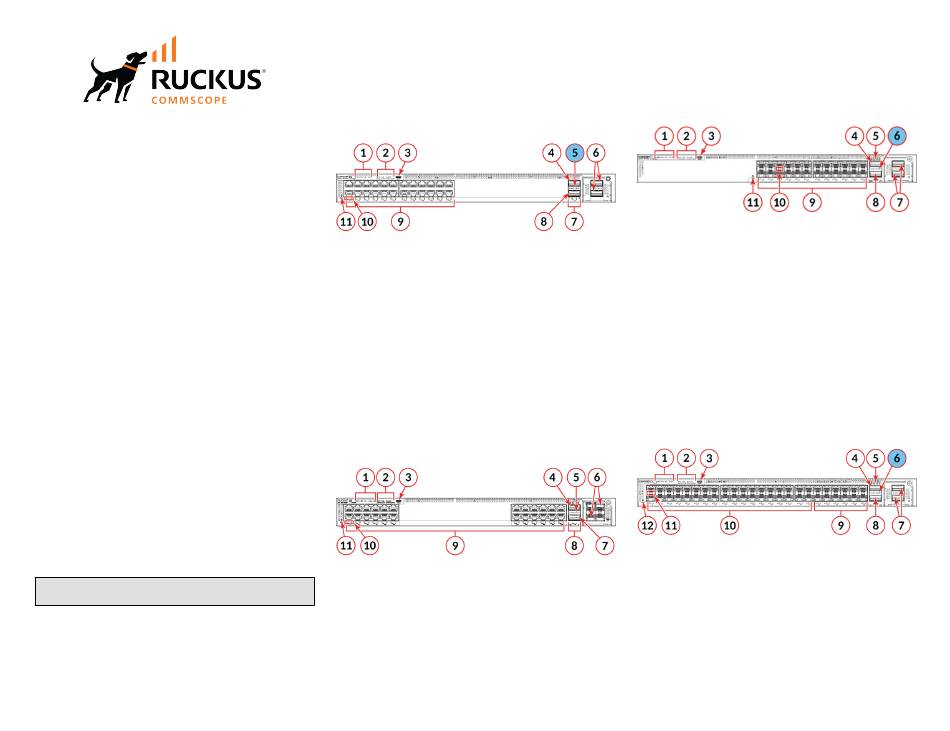

FIGURE 1 Port-side View of ICX 7550-24 and ICX 7550-24P
1. Mode status LEDs: STAT, SPD, ID, USB
2. System LEDs
3. Type-C USB console port
4. 40 Gbps stacking port 2/1
5. 40 Gbps link/activity LEDs (blue) for stacking port 2/1
6. Expansion module ports (optional)
7. 40 Gbps link/activity LEDs for stacking port 2/2
8. 40 Gbps stacking port 2/2
9. 24x10/100/1000 Mbps RJ-45 ports
10. RJ-45 port status LEDs (odd numbers are for upper ports; even
numbers are for lower ports)
11. Reset button
FIGURE 2 Port-side View of ICX 7550-24XZP and ICX 7550-24ZP
1. Mode status LEDs: STAT, SPD, ID, USB, PoE
2. System LEDs
3. Type-C USB console port
4. 40/100 GbE uplink/stacking port 2/1
5. 40 Gbps link/activity LEDs for stacking port 2/1
6. Expansion module ports (optional)
7. 40/100 GbE uplink/stacking port 2/2
8. 40 Gbps link/activity LEDs for stacking port 2/2
9. 24X10G GbE copper ports
10. RJ-45 port status LEDs (odd numbers are for upper ports; even
numbers are for lower ports)
11. Reset Button
FIGURE 3 Port-side View of ICX 7550-24F
1. Mode status LEDs: STAT, SPD, ID, USB
2. System LEDs
3. Type-C USB console port
4. 40/100 GbE uplink/stacking port 2/1
5. 40/100 Gbps link/activity LEDs for stacking port 2/1
6. 40/100 Gbps stacking port 2/2 LEDs (blue)
7. Expansion module ports (optional)
8. 40/100 GbE uplink/stacking port 2/2
9. 24x10 GbE SFP ports
10. SFP port status LEDs (upper-pointing triangles are for upper ports;
lower-pointing triangles are for lower ports)
11. Reset button
FIGURE 4 Port-side View of ICX 7550-48F
1. Mode status LEDs: STAT, SPD, ID, USB
2. System LEDs
3. Type-C USB console port
4. 40/100 GbE Uplink/Stacking port 2/1
5. 40/100 Gbps link/activity LEDs for stacking port 2/1
6. 40/100 Gbps stacking port 2/2 LEDs (blue)
7. Expansion module ports (optional)
8. 40/100 GbE uplink/stacking port 2/2
9. 12x10 GbE SFP ports
Page 1 of 4
