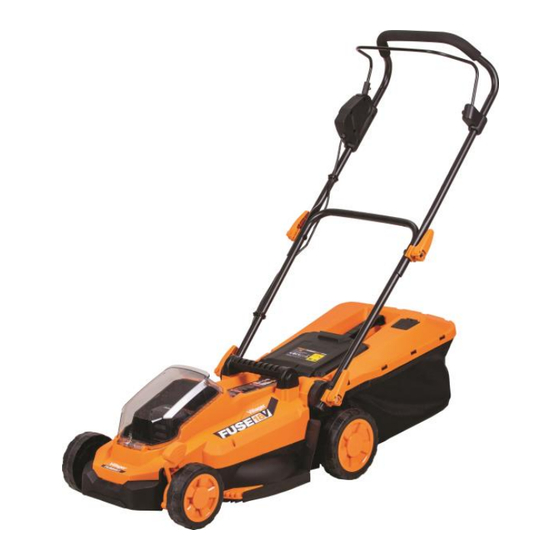

- Page 1 Villager Villager Villy 2020 E (EN) CORDLESS LAWN MOWER Villager Villy 2020 E Original instruction manual...
- Page 2 Villager Villager Villy 2020 E (EN) Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device. We reserve the right to change the technical characteristics, the right to possible typographical errors without prior notice. Product images may be different than...
- Page 3 Villager Villager Villy 2020 E (EN)
- Page 4 Villager Villager Villy 2020 E (EN)
-
Page 5: Intended Purpose
Villager Villager Villy 2020 E (EN) INTRODUCTION During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. -
Page 6: Function Description
Villager Villager Villy 2020 E (EN) FUNCTION DESCRIPTION The cordless lawnmower has a cutting tool, which turns parallel to the cutting level. It is equipped with a high performance electric motor, robust plastic housing, collision guard, and grass box. Additionally, the equipment is height adjustable to five levels and has smooth-running wheels. -
Page 7: Technical Specifications
Villager Villager Villy 2020 E (EN) TECHNICAL SPECIFICATIONS Motor voltage Idle speed 2900 min Cutting circle 330 mm Cut heigh 25/35/45/55/65/75 mm Protection class Protection type IPX1 Weight (without battery and charger) 10 kg Grass collection box volume 30 l Villager 18 V / 1.5 Ah... - Page 8 Villager Villager Villy 2020 E (EN) Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours.
- Page 9 Villager Villager Villy 2020 E (EN) Do not expose the unit to rain. Noise level specification L u dB. Do not dispose of electrical equipment in domestic waste. Approved in accordance with the relevant directives...
-
Page 10: Safety Information
Villager Villager Villy 2020 E (EN) Filling level indicator on the grass collection box Filling level indicator open: Grass box empty. Filling level indicator closed: Grass box full. Symbols in the manual Warning symbols with information on damage and injury prevention. -
Page 11: Working With The Equipment
Villager Villager Villy 2020 E (EN) • This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. - Page 12 Villager Villager Villy 2020 E (EN) • Only operate the device at walking speed. Take special care when turning the device around, pulling it towards you or going backwards. • Turn the device on with care in accordance with these operating instructions.
-
Page 13: Maintenance And Storage
Villager Villager Villy 2020 E (EN) If a foreign object has been hit by the device. Check for damage to the apparatus and carry out the necessary repairs before switching it on again and working with it. If the apparatus starts to vibrate excessively, an immediate check is required. -
Page 14: Electrical Safety
Villager Villager Villy 2020 E (EN) Electrical Safety • The plug of the charger must fit into the socket. The plug must not be modified in any way. Do not use any adapter plugs together with electric tools that have a protective earth. -
Page 15: Mulch Kit
Villager Villager Villy 2020 E (EN) Release the tightening levers (2+5) and fold the upper bar (1) and the lower bar (3) together so that the device takes up less space. Make sure not to pinch the machine cables while doing this. -
Page 16: Setting The Cutting Height
Villager Villager Villy 2020 E (EN) Work may not be carried out using the device without the impact protection or grass collection box. There is a risk of injury. Filling level indicator There is a filling level indicator ( 26) on the side of the grass collection box 13). -
Page 17: Switching On And Off
You will hear it click into place. Switching on and off The cordless lawnmower may only be used with Villager 18V batteries. Never use non-reachable batteries. • Batteries can leak if they are not handled or used properly. Do not touch fluid leaking from a battery. -
Page 18: Working With The Device
Villager Villager Villy 2020 E (EN) Due to the intelligent energy management system, the motor starts after a delay. After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury. -
Page 19: General Cleaning And Maintenance Work
Villager Villager Villy 2020 E (EN) Switch off the apparatus, remove the ignition key ( 10) and wait for the blades to come to a standstill. General cleaning and maintenance work Never spray down the device with water. There is a risk of electric shock. -
Page 20: Disposal And Environmental Protection
Villager Villager Villy 2020 E (EN) • Remove the rechargeable battery before storing the device for a long period of time (e.g. winter storage). We are not liable for damage cause by our devices if this is caused by improper repair, the use of non-original parts or incorrect use. -
Page 21: Troubleshooting
Villager Villager Villy 2020 E (EN) Trouble Shooting Problem Possible Cause Fault Fixing Check the charge status, charge rechargeable battery Rechargeable battery ( (observe the separate discharged. operating instructions for the battery and charger). Insert rechargeable battery (observe the separate ope-... - Page 22 DECLARATION OF CONFORMITY According to the EC Machinery Directive 2006/42/EC of 17 May 2006, Annex II A Description of the machinery: CORDLESS LAWN MOWER Villager Villy 2020 E We declare under full responsibility that the below mentioned product is designed and manufactured in accordance with: •...
