3 MECHANICAL SPECIFICATIONS

Max Gear Box Admitted Output Torque: ................................................ (IMS spec)
Tightening Torque in the joint Gearbox to Truck frame:......................(IMS spec)
Tightening Torque in the joint Gearbox to Motor flange (Ref 1):.........11 +/-1 Nm
Tightening Torque in the Motor Flanges (Ref 2):...........................11 +/- 1 Nm
Tightening Torque in the Epsacw_heatsink-Motor joint (Ref 3): .1,5 +/- 0,2 Nm
Tightening Torque in the 3_UVW_Motor_Cables-Epsacw joints:.1,2 +/- 0,2 Nm
Tightening Torque on the Epsacw_small_cover (Ref 5):............1,5 +/- 0,2 Nm
Tightening Torque on the Motor_encoder_cover (Ref 6):...........1,5 +/- 0,2 Nm
AF9ZP0BA - EPS-ACW REACH TRUCK - User Manual
Ref 6
Ref 5

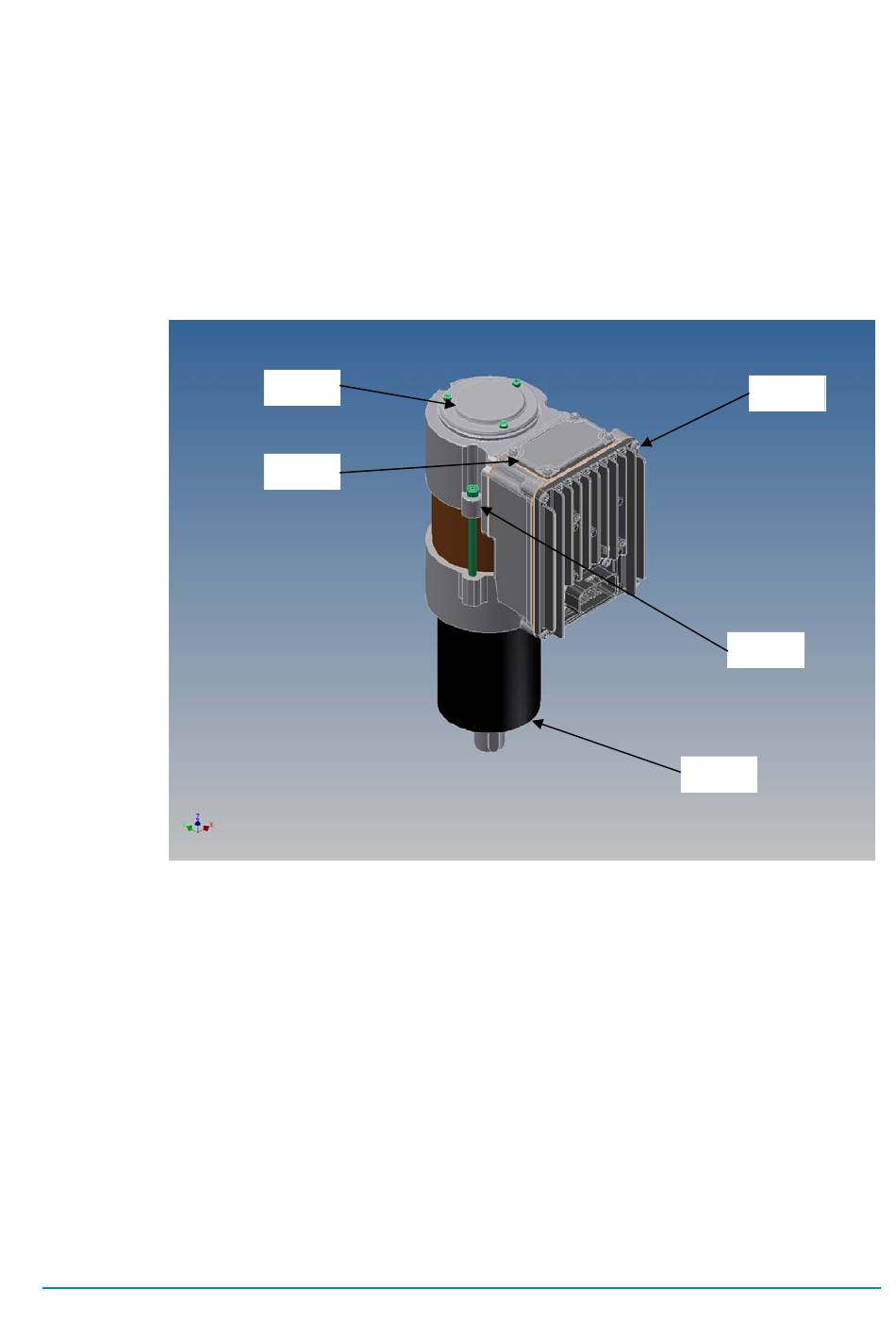

Figure 3–1
